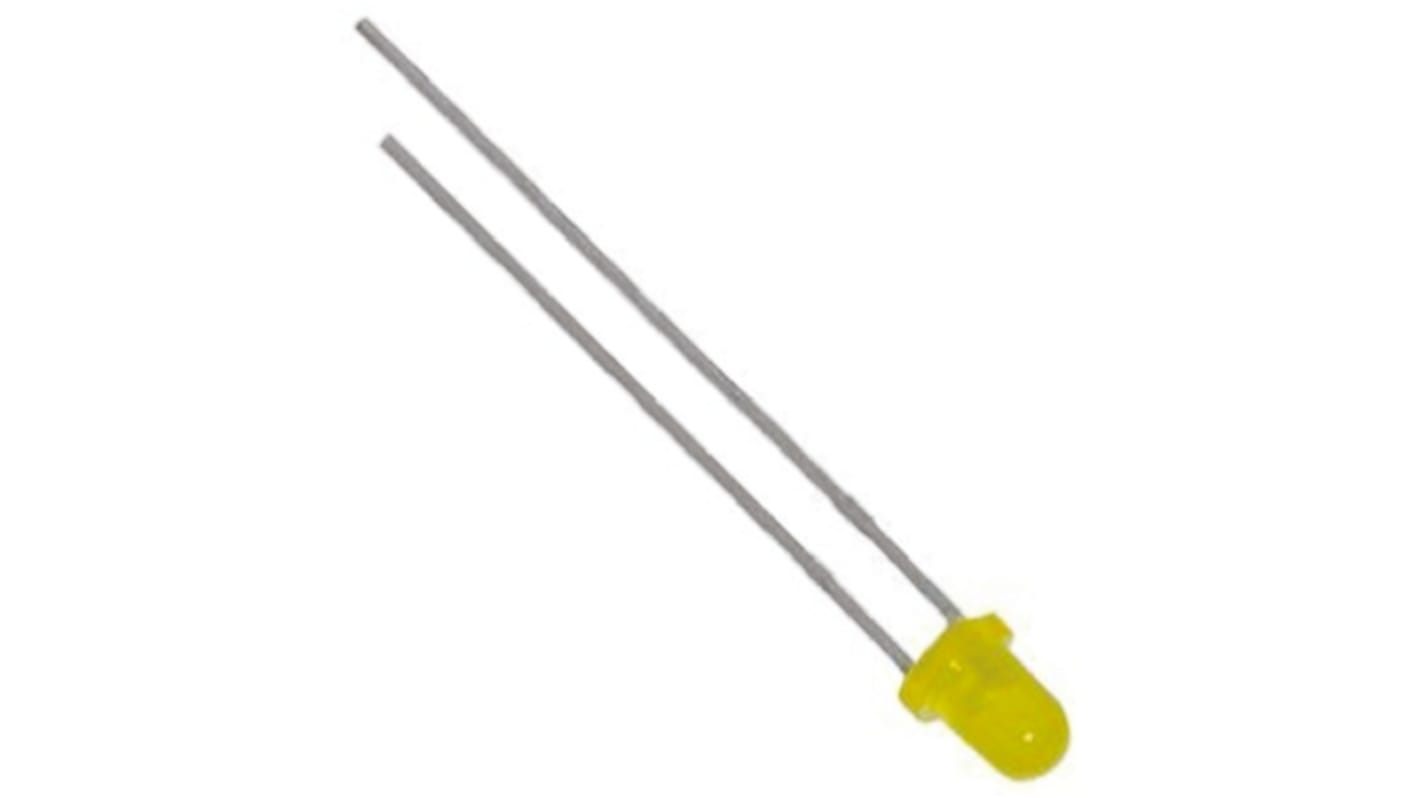

Broadcom2 V Yellow LED 3mm Through Hole, HLMP-1401-E0000
- RS Stock No.:
- 451-4806P
- Mfr. Part No.:
- HLMP-1401-E0000
- Brand:
- Broadcom
Bulk discount available
Subtotal 50 units (supplied as a tape)*
£7.10
(exc. VAT)
£8.50
(inc. VAT)
Stock information currently inaccessible
Units | Per unit |
---|---|
50 - 75 | £0.142 |
100 - 150 | £0.115 |
175 - 225 | £0.112 |
250 + | £0.111 |
*price indicative
- RS Stock No.:
- 451-4806P
- Mfr. Part No.:
- HLMP-1401-E0000
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Broadcom | |
LED Colours | Yellow | |
Package Type | 3mm (T-1) | |
Mounting Type | Through Hole | |
Number of LEDs | 1 | |
Forward Voltage | 2 V | |
Luminous Intensity | 5.7 mcd | |
Number of Pins | 2 | |
Viewing Angle | 60 ° | |
Lens Shape | Round | |
Dominant Wavelength | 585 nm | |
Dimensions | 3 x 4.7mm | |
Lens Colour | Yellow | |
Select all | ||
---|---|---|
Brand Broadcom | ||
LED Colours Yellow | ||
Package Type 3mm (T-1) | ||
Mounting Type Through Hole | ||
Number of LEDs 1 | ||
Forward Voltage 2 V | ||
Luminous Intensity 5.7 mcd | ||
Number of Pins 2 | ||
Viewing Angle 60 ° | ||
Lens Shape Round | ||
Dominant Wavelength 585 nm | ||
Dimensions 3 x 4.7mm | ||
Lens Colour Yellow | ||
Avago HLMP-1301/1401/1503/K401/K600 Series LEDs
The HLMP-1301, HLMP-1401, HLMP-1503, HLMP-K401 and HLMP-K600 series, from Avago Technologies, are T-1 (3mm) diffused LED lamps. This family of through-hole LEDs are designed for use in general purpose indicator applications. Diffusants, tints and optical design are combines to create a high light output and wide viewing angles.
Feautres of the HLMP-1301, HLMP-1401, HLMP-1503, HLMP-K401, HLMP-K600 LEDs:
- High intensity
- Variety of colours available
- T-1 (3mm) standard package
- Selected minimum intensities
- Wide viewing angles
- General purpose leads
- Reliable and rugged
- High intensity
- Variety of colours available
- T-1 (3mm) standard package
- Selected minimum intensities
- Wide viewing angles
- General purpose leads
- Reliable and rugged
Visible Light LEDs, Avago Technologies
