Broadcom 2.1 V Green, Yellow LED DFN Surface ASCKCx00 ASCKCF00-AP5R5010402
- RS Stock No.:
- 275-8983P
- Mfr. Part No.:
- ASCKCF00-AP5R5010402
- Brand:
- Broadcom
Subtotal 10 units (supplied on a continuous strip)*
£2.18
(exc. VAT)
£2.62
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 60,000 unit(s) shipping from 30 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 10 + | £0.218 |
*price indicative
- RS Stock No.:
- 275-8983P
- Mfr. Part No.:
- ASCKCF00-AP5R5010402
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| Product Type | LED | |
| LED Colour | Green, Yellow | |
| Package Type | DFN | |
| Maximum Forward Current | 30mA | |
| Mount Type | Surface | |
| Packaging | Tape & Reel | |
| Maximum Power Dissipation | 72mW | |
| Forward Voltage | 2.1V | |
| Viewing Angle | 120 ° | |
| LED Luminous Flux | 0.3 lm | |
| Standards/Approvals | RoHS | |
| Dominant Wavelength | 572 nm | |
| Series | ASCKCx00 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Broadcom | ||
Product Type LED | ||
LED Colour Green, Yellow | ||
Package Type DFN | ||
Maximum Forward Current 30mA | ||
Mount Type Surface | ||
Packaging Tape & Reel | ||
Maximum Power Dissipation 72mW | ||
Forward Voltage 2.1V | ||
Viewing Angle 120 ° | ||
LED Luminous Flux 0.3 lm | ||
Standards/Approvals RoHS | ||
Dominant Wavelength 572 nm | ||
Series ASCKCx00 | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN

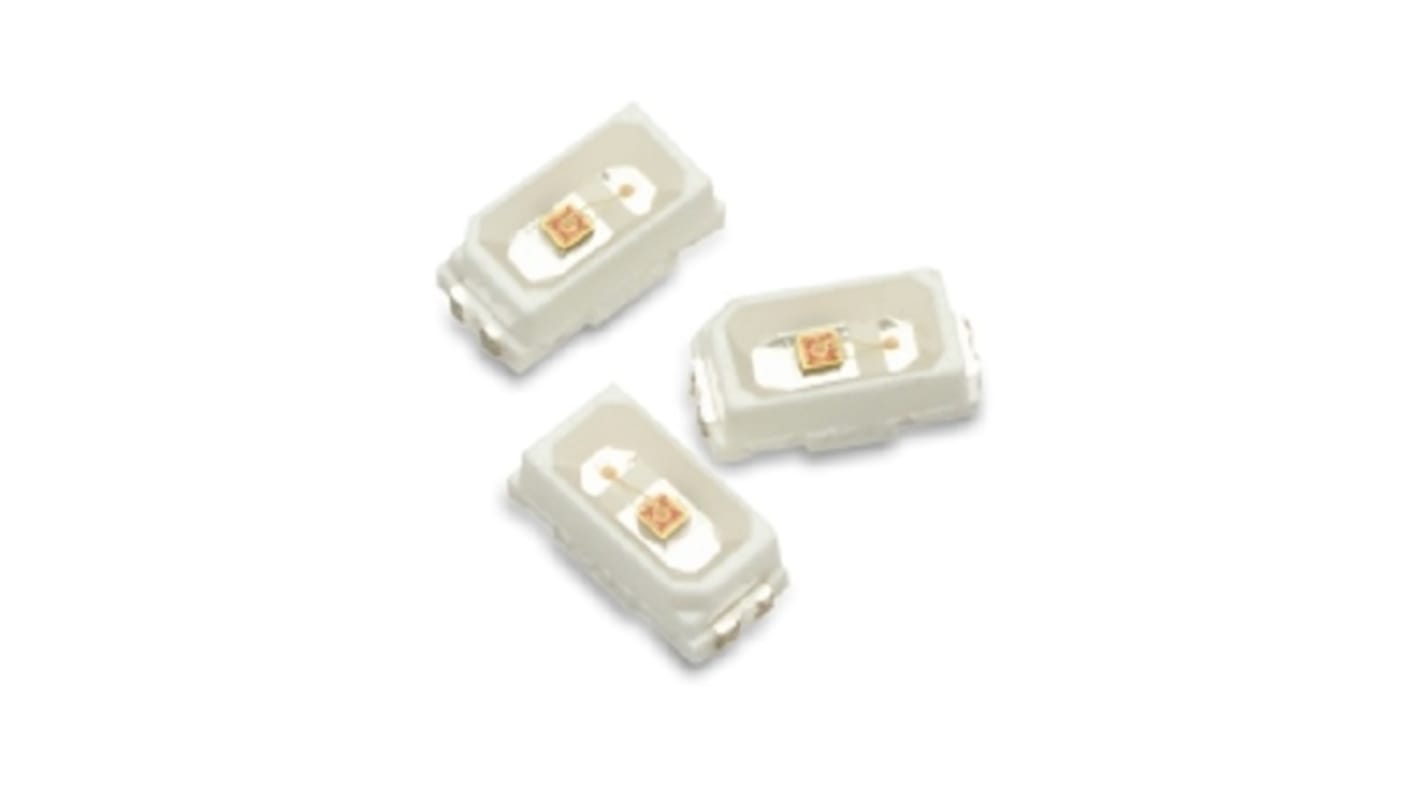

The Broadcom ASCKCx00 surface mount LEDs utilize AlInGaP and InGaN chips in a small form factor DFN-2 package. The LEDs are designed with high-reliability performance to work under a wide range of environmental conditions. The small form factor package also enables flexibilities in product designs and are Ideal for a wide range of applications.
JEDEC MSL 3
Wide viewing angle at 120 degree
