Vishay 4.2 V Green LED PLCC Surface VLMTG41S2U1-GS08
- RS Stock No.:
- 257-6929
- Mfr. Part No.:
- VLMTG41S2U1-GS08
- Brand:
- Vishay
Subtotal (1 reel of 1500 units)*
£175.50
(exc. VAT)
£210.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 12 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1500 + | £0.117 | £175.50 |
*price indicative
- RS Stock No.:
- 257-6929
- Mfr. Part No.:
- VLMTG41S2U1-GS08
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| LED Colour | Green | |
| Product Type | LED | |
| Maximum Forward Current | 0.1mA | |
| Package Type | PLCC | |
| Packaging | Tape & Reel | |
| Mount Type | Surface | |
| Forward Voltage | 4.2V | |
| Maximum Power Dissipation | 84mW | |
| Lens Shape | Square | |
| Dominant Wavelength | 541nm | |
| Standards/Approvals | RoHS | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
LED Colour Green | ||
Product Type LED | ||
Maximum Forward Current 0.1mA | ||
Package Type PLCC | ||
Packaging Tape & Reel | ||
Mount Type Surface | ||
Forward Voltage 4.2V | ||
Maximum Power Dissipation 84mW | ||
Lens Shape Square | ||
Dominant Wavelength 541nm | ||
Standards/Approvals RoHS | ||
Automotive Standard AEC-Q101 | ||

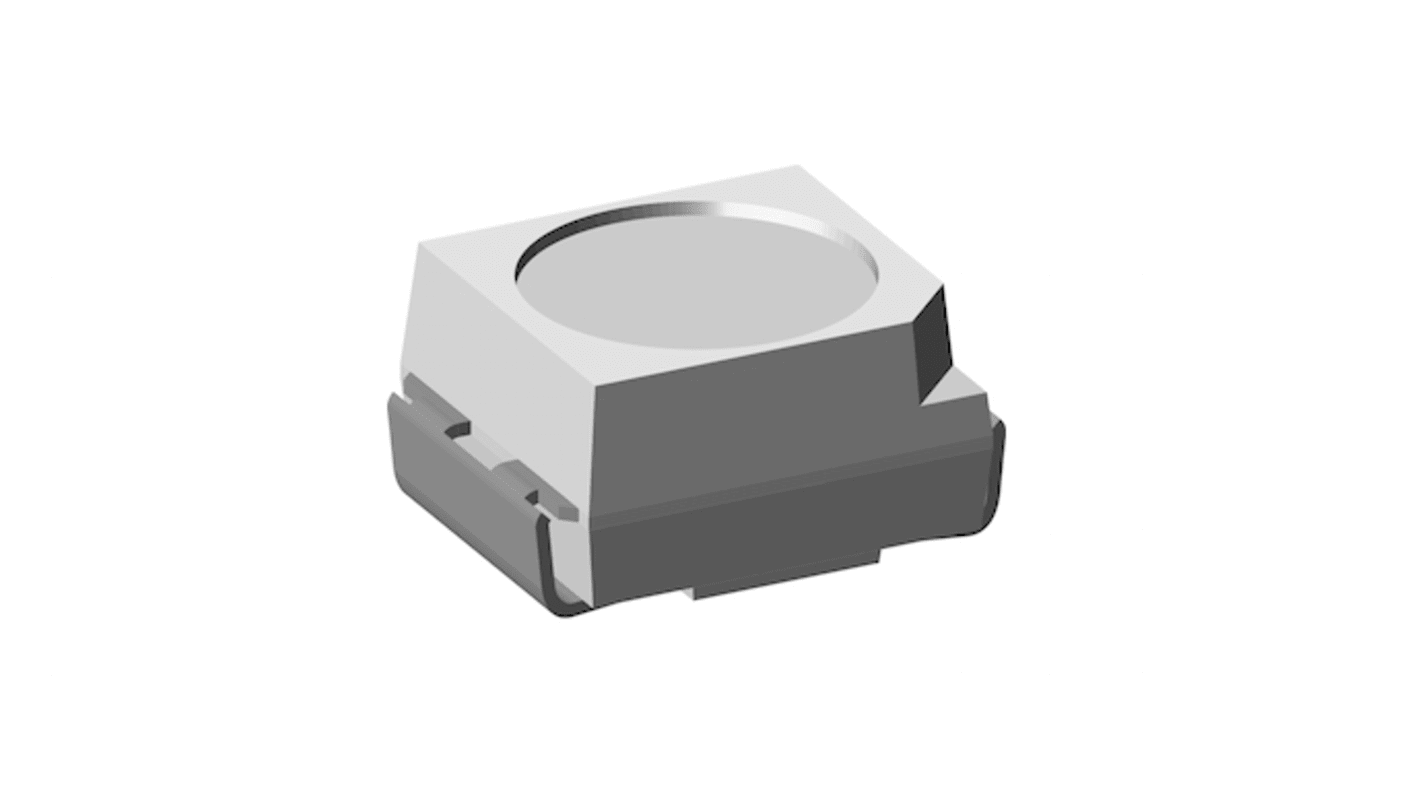

The Vishay SMD LED PLCC-2 designed to meet the increasing demand for InGaN true green SMD LED. The package of the VLMTG41.. is the PLCC-2. It consists of a lead frame which is embedded in a white thermoplast. The reflector inside this package is filled with clear epoxy.
High efficient InGaN technology
EIA and ICE standard package
Compatible with IR reflow, vapor phase and wave solder processes according to CECC 00802 and J-STD-020
AEC-Q101 qualified
