ams OSRAM 3.2 V LED PLCC 6 Surface LRTBGVSR
- RS Stock No.:
- 238-1490
- Mfr. Part No.:
- LRTBGVSR-U4V2-JW+A6BB-D8+S2U2-7Z
- Brand:
- ams OSRAM
Bulk discount available
View bulk pricing optionsSubtotal (1 reel of 1000 units)*
£324.00
(exc. VAT)
£389.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 2,000 unit(s) shipping from 22 June 2026
- Plus 2,000 unit(s) shipping from 23 June 2026
- Plus 2,000 unit(s) shipping from 14 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1000 - 1000 | £0.324 | £324.00 |
| 2000 - 9000 | £0.272 | £272.00 |
| 10000 - 24000 | £0.261 | £261.00 |
| 25000 - 49000 | £0.257 | £257.00 |
| 50000 + | £0.252 | £252.00 |
*price indicative
- RS Stock No.:
- 238-1490
- Mfr. Part No.:
- LRTBGVSR-U4V2-JW+A6BB-D8+S2U2-7Z
- Brand:
- ams OSRAM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ams OSRAM | |
| Product Type | LED | |
| Maximum Forward Current | 50mA | |
| Package Type | PLCC 6 | |
| Mount Type | Surface | |
| Number of LEDs | 3 | |
| Forward Voltage | 3.2V | |
| Standards/Approvals | RoHS Compliant | |
| Dominant Wavelength | 632nm | |
| Series | LRTBGVSR | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ams OSRAM | ||
Product Type LED | ||
Maximum Forward Current 50mA | ||
Package Type PLCC 6 | ||
Mount Type Surface | ||
Number of LEDs 3 | ||
Forward Voltage 3.2V | ||
Standards/Approvals RoHS Compliant | ||
Dominant Wavelength 632nm | ||
Series LRTBGVSR | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN

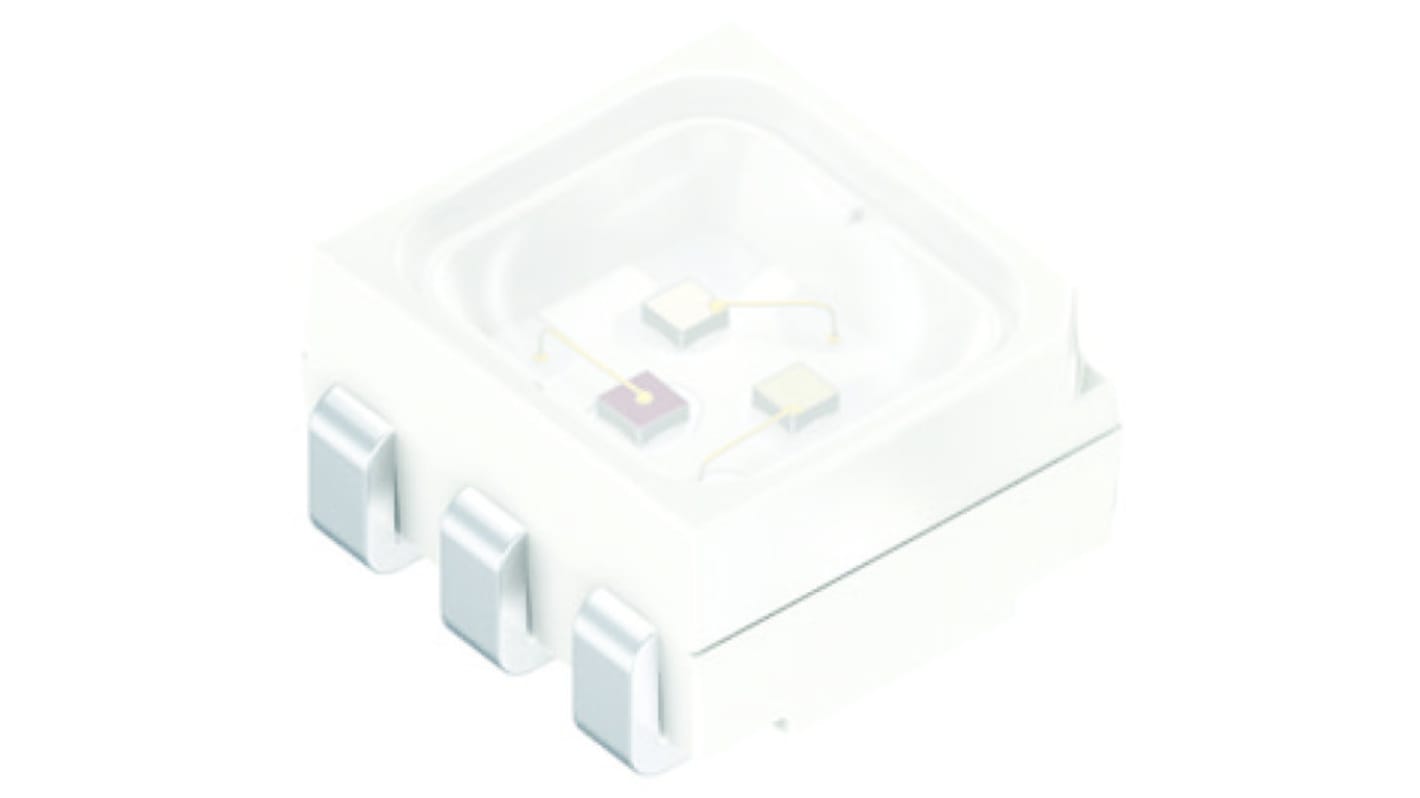

The OSRAM Opto Semiconductors OSIRE E3635 is especially designed for automotive applications and RGB displays. The 6-lead technology offers an additive mixture of colour stimuli by independent driving of each chip and the white package guarantees high brightness. It can be used in applications such as interior illumination.
Package white PLCC-6 package, silicone resin
Chip technology thinfilm / UX:3
Typical radiation 120° (Lambertian emitter)
Corrosion robustness Class 3B
Qualifications AEC-Q102 qualified
ESD 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
