Wurth Elektronik 2.4 V Yellow LED PLCC 4 Surface WL-SMTD 150141YS63130
- RS Stock No.:
- 236-5152
- Distrelec Article No.:
- 304-40-934
- Mfr. Part No.:
- 150141YS63130
- Brand:
- Wurth Elektronik
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 10 units)*
£5.37
(exc. VAT)
£6.44
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 1,840 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £0.537 | £5.37 |
| 50 - 90 | £0.471 | £4.71 |
| 100 - 240 | £0.423 | £4.23 |
| 250 - 990 | £0.413 | £4.13 |
| 1000 + | £0.376 | £3.76 |
*price indicative
- RS Stock No.:
- 236-5152
- Distrelec Article No.:
- 304-40-934
- Mfr. Part No.:
- 150141YS63130
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| LED Colour | Yellow | |
| Product Type | LED | |
| Package Type | PLCC 4 | |
| Maximum Forward Current | 70mA | |
| Mount Type | Surface | |
| Packaging | Tape & Reel | |
| Maximum Power Dissipation | 196mW | |
| Forward Voltage | 2.4V | |
| Number of Pins | 2 | |
| Viewing Angle | 30 ° | |
| Lens Dimensions | 3.5 x 2.8 x 3.5 mm | |
| LED Luminosity | 15000 mcd | |
| Lens Shape | Dome | |
| Standards/Approvals | RoHS, IEC 61249-2-21, REACH, IEC-62471 | |
| Dominant Wavelength | 590nm | |
| Lens Finish | Diffused | |
| Lens Colour | Yellow | |
| Series | WL-SMTD | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
LED Colour Yellow | ||
Product Type LED | ||
Package Type PLCC 4 | ||
Maximum Forward Current 70mA | ||
Mount Type Surface | ||
Packaging Tape & Reel | ||
Maximum Power Dissipation 196mW | ||
Forward Voltage 2.4V | ||
Number of Pins 2 | ||
Viewing Angle 30 ° | ||
Lens Dimensions 3.5 x 2.8 x 3.5 mm | ||
LED Luminosity 15000 mcd | ||
Lens Shape Dome | ||
Standards/Approvals RoHS, IEC 61249-2-21, REACH, IEC-62471 | ||
Dominant Wavelength 590nm | ||
Lens Finish Diffused | ||
Lens Colour Yellow | ||
Series WL-SMTD | ||
Automotive Standard No | ||

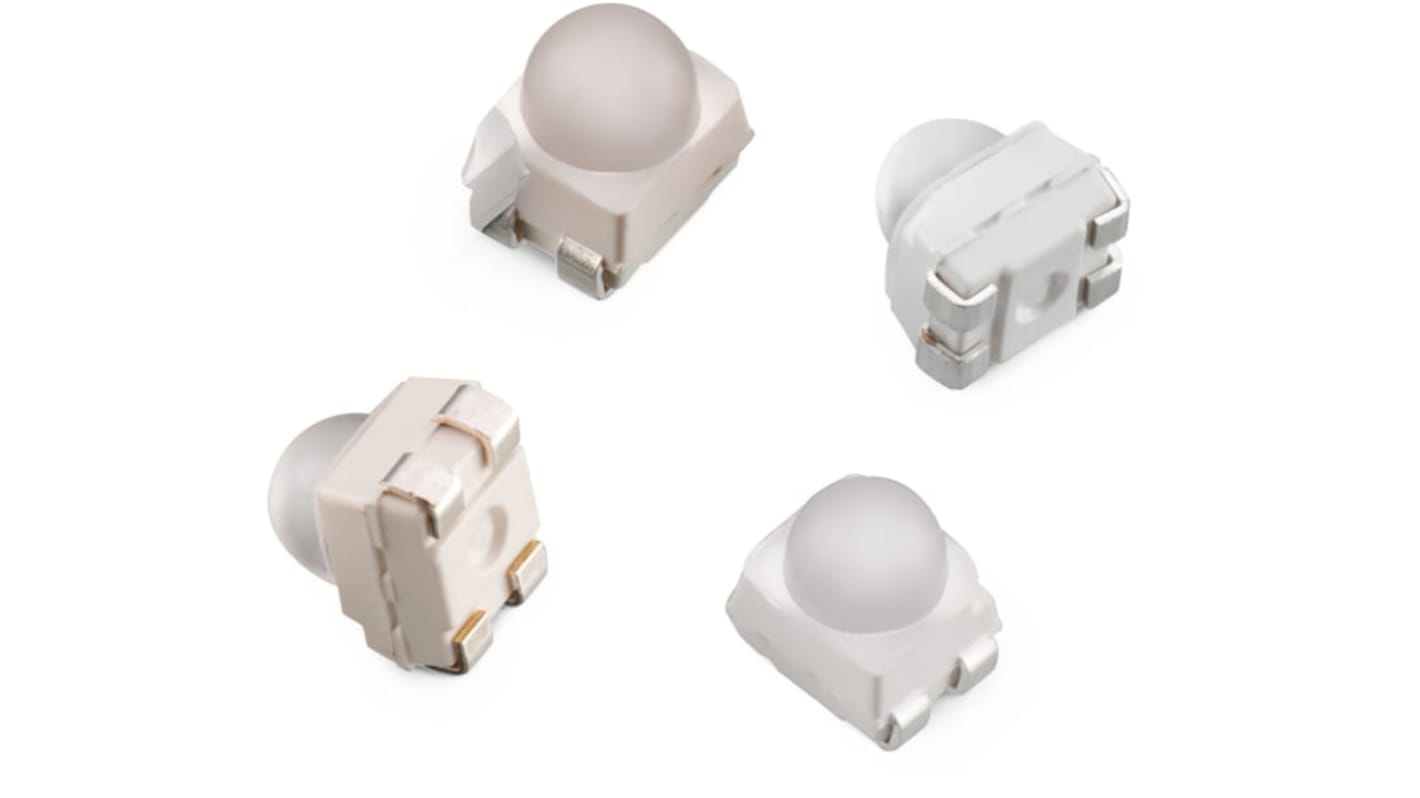

The Wurth Elektronik's SMT monocolour LED diffused dome is a LED emitter. It's emitting colour is yellow. It uses AllnGaP as chip technology. It has diffused lens type. It can be used in traffic lights, backlighting, central console, cabin or push button, navigation and audio system.
Industry standard PLCC-4
High reliability LED package
High optical efficiency
Dimensions (mm) length 3.5 width 2.8 height 3.5
Compatible with both IR soldering process
Operating temperature -40 up to +100 °C
