Broadcom 2.6 V Green, Red, Blue LED PLCC Surface Mount ASMB-MTB
- RS Stock No.:
- 220-7152
- Mfr. Part No.:
- ASMB-MTB1-0B3A2
- Brand:
- Broadcom
Bulk discount available
Subtotal (1 reel of 2000 units)*
£290.00
(exc. VAT)
£348.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 28,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2000 - 2000 | £0.145 | £290.00 |
| 4000 - 8000 | £0.141 | £282.00 |
| 10000 - 18000 | £0.137 | £274.00 |
| 20000 + | £0.134 | £268.00 |
*price indicative
- RS Stock No.:
- 220-7152
- Mfr. Part No.:
- ASMB-MTB1-0B3A2
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| LED Colour | Green, Red, Blue | |
| Product Type | LED | |
| Package Type | PLCC | |
| Maximum Forward Current | 25mA | |
| Mount Type | Surface Mount | |
| Packaging | Tape & Reel | |
| Number of LEDs | 3 | |
| Maximum Power Dissipation | 90mW | |
| Forward Voltage | 2.6V | |
| Number of Pins | 4 | |
| Viewing Angle | 115 ° | |
| Lens Shape | Rectangular | |
| Standards/Approvals | JEDEC MSL 3 | |
| Lens Finish | Clear | |
| Lens Colour | Clear | |
| Series | ASMB-MTB | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Broadcom | ||
LED Colour Green, Red, Blue | ||
Product Type LED | ||
Package Type PLCC | ||
Maximum Forward Current 25mA | ||
Mount Type Surface Mount | ||
Packaging Tape & Reel | ||
Number of LEDs 3 | ||
Maximum Power Dissipation 90mW | ||
Forward Voltage 2.6V | ||
Number of Pins 4 | ||
Viewing Angle 115 ° | ||
Lens Shape Rectangular | ||
Standards/Approvals JEDEC MSL 3 | ||
Lens Finish Clear | ||
Lens Colour Clear | ||
Series ASMB-MTB | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN

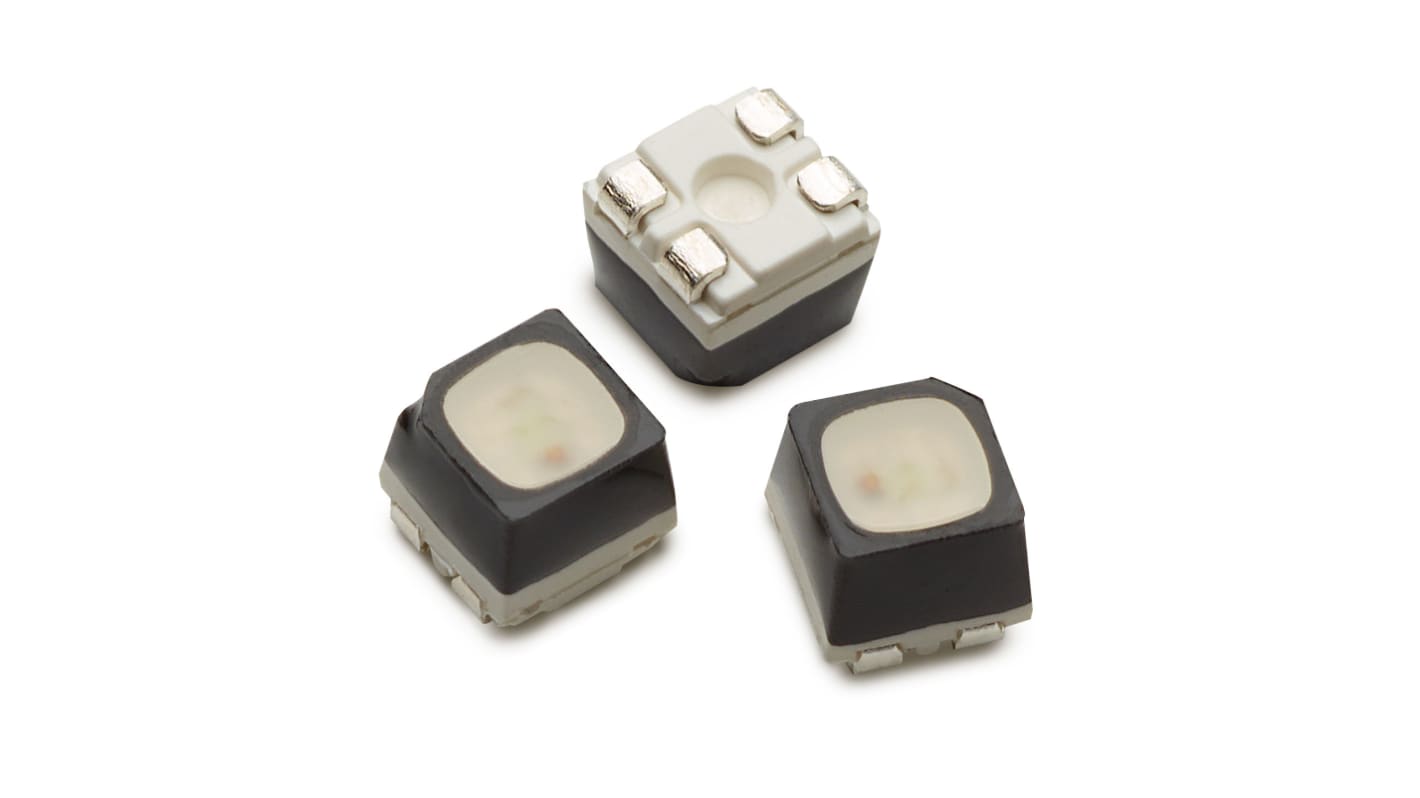

The Broadcom SMT LEDs are in PLCC-4 package. A wide viewing angle together with the built in reflector drives up the intensity of light output making these LEDs suitable for use in interior electronic signs. The black top surface of the LED provide better contrast enhancement, especially in full colour display. It is compatible with reflow soldering process.
LED package with diffused silicone encapsulation
Using AlInGaP and InGaN dice technologies
Typical viewing angle at 115°
