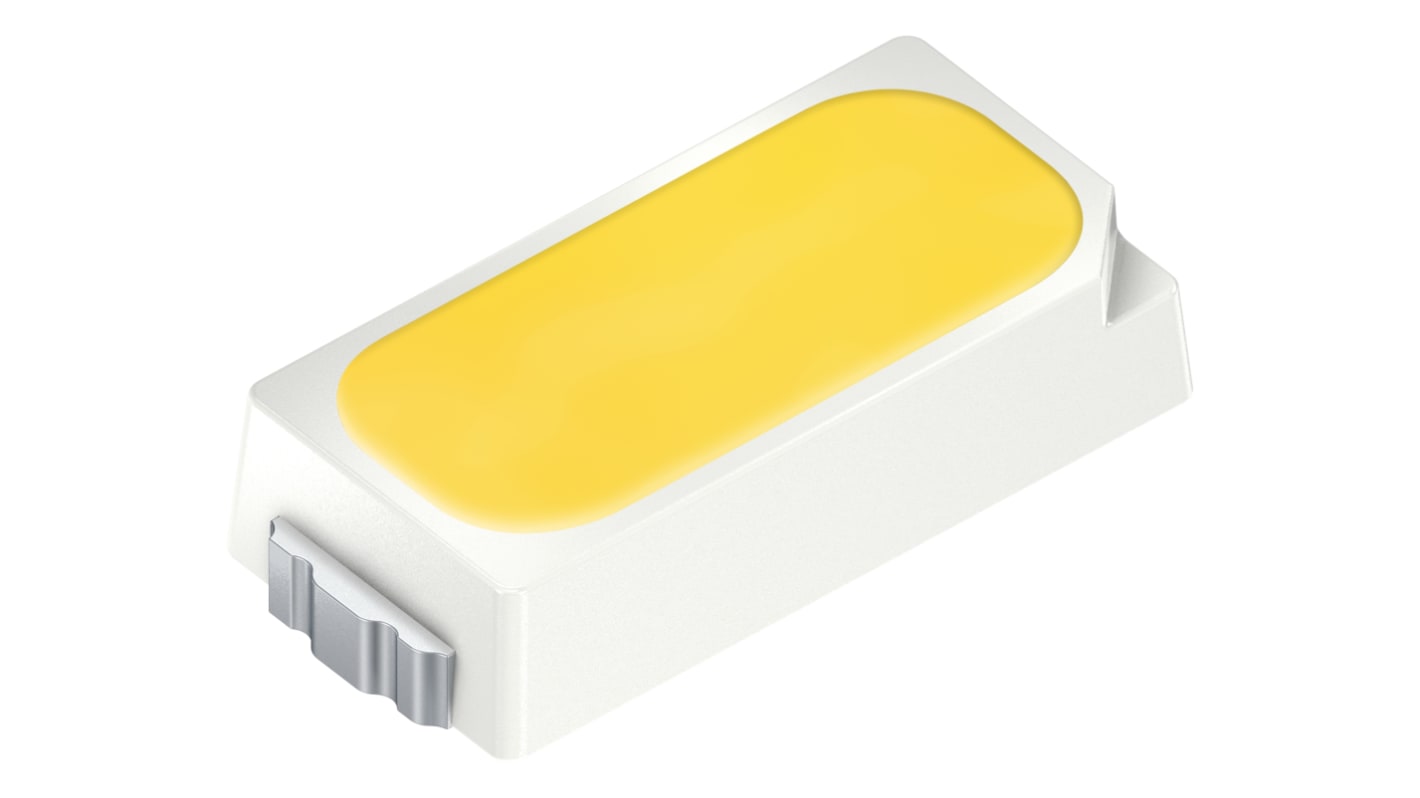

ams OSRAM 2.7 V White LED 3014 Surface Mount KW DCLMS2
- RS Stock No.:
- 212-1201
- Mfr. Part No.:
- LUW JLSH.01-7B6C-I4Q7-1
- Brand:
- ams OSRAM
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 212-1201
- Mfr. Part No.:
- LUW JLSH.01-7B6C-I4Q7-1
- Brand:
- ams OSRAM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ams OSRAM | |
| LED Colour | White | |
| Product Type | LED | |
| Maximum Forward Current | 30mA | |
| Package Type | 3014 | |
| Mount Type | Surface Mount | |
| Packaging | Tape & Reel | |
| Number of LEDs | 1 | |
| Forward Voltage | 2.7V | |
| Viewing Angle | 110 ° | |
| LED Luminous Flux | 7205 to 10184 mlm | |
| LED Luminosity | 2240 to 3550 mcd | |
| Lens Dimensions | 3 x 1.4 mm | |
| Standards/Approvals | RoHS, IEC 62471:2006 | |
| Series | KW DCLMS2 | |
| Colour Temperature | 10000k | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ams OSRAM | ||
LED Colour White | ||
Product Type LED | ||
Maximum Forward Current 30mA | ||
Package Type 3014 | ||
Mount Type Surface Mount | ||
Packaging Tape & Reel | ||
Number of LEDs 1 | ||
Forward Voltage 2.7V | ||
Viewing Angle 110 ° | ||
LED Luminous Flux 7205 to 10184 mlm | ||
LED Luminosity 2240 to 3550 mcd | ||
Lens Dimensions 3 x 1.4 mm | ||
Standards/Approvals RoHS, IEC 62471:2006 | ||
Series KW DCLMS2 | ||
Colour Temperature 10000k | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The OSRAM Opto Semiconductors TOPLED E3014 series has a wide beam angle with a compact format and is one of the smallest LED for screen backlighting. It is therefore ideal for injecting in light guides for homogeneous illumination applications.
Chip technology InGaN on Sapphire
Corrosion robustness class 1B
Operating temperature ranges from -40 to 85 °C
