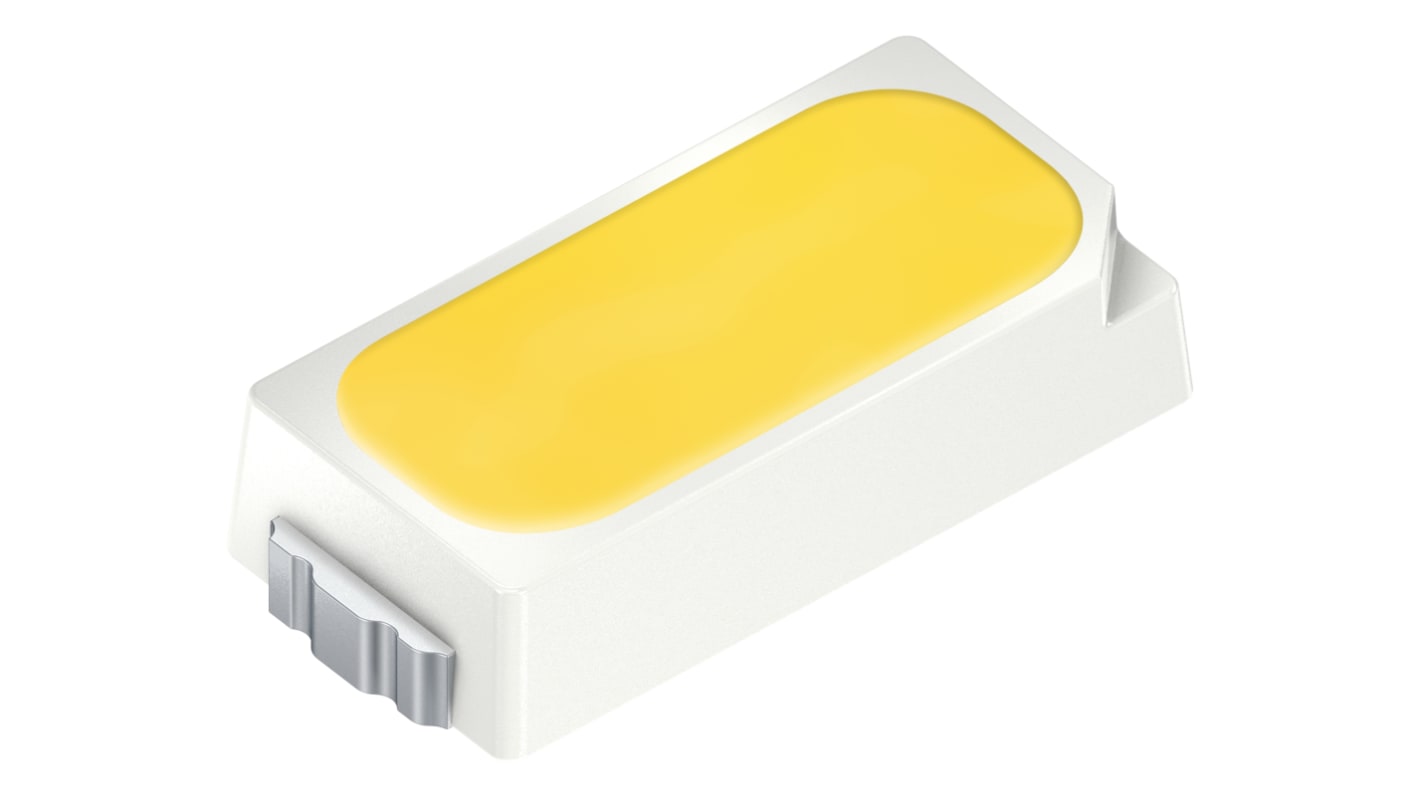

ams OSRAM 2.7 V White LED 3014 Surface KW DCLMS2
- RS Stock No.:
- 212-1191
- Mfr. Part No.:
- KW DCLMS2.EC-CXCZ-4A7D-1
- Brand:
- ams OSRAM
Bulk discount available
View bulk pricing optionsSubtotal (1 reel of 3000 units)*
£108.00
(exc. VAT)
£129.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 3,000 unit(s) shipping from 20 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 - 3000 | £0.036 | £108.00 |
| 6000 - 12000 | £0.034 | £102.00 |
| 15000 + | £0.033 | £99.00 |
*price indicative
- RS Stock No.:
- 212-1191
- Mfr. Part No.:
- KW DCLMS2.EC-CXCZ-4A7D-1
- Brand:
- ams OSRAM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ams OSRAM | |
| Product Type | LED | |
| LED Colour | White | |
| Package Type | 3014 | |
| Maximum Forward Current | 30mA | |
| Mount Type | Surface | |
| Packaging | Tape & Reel | |
| Number of LEDs | 1 | |
| Forward Voltage | 2.7V | |
| Viewing Angle | 110 ° | |
| LED Luminous Flux | 9150 to 12600 mlm | |
| LED Luminosity | 2800 to 4500 mcd | |
| Colour Rendering Index CRI | 80% | |
| Lens Dimensions | 3 x 1.4 mm | |
| Standards/Approvals | IEC 62471:2006 | |
| Colour Temperature | 8000K | |
| Series | KW DCLMS2 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ams OSRAM | ||
Product Type LED | ||
LED Colour White | ||
Package Type 3014 | ||
Maximum Forward Current 30mA | ||
Mount Type Surface | ||
Packaging Tape & Reel | ||
Number of LEDs 1 | ||
Forward Voltage 2.7V | ||
Viewing Angle 110 ° | ||
LED Luminous Flux 9150 to 12600 mlm | ||
LED Luminosity 2800 to 4500 mcd | ||
Colour Rendering Index CRI 80% | ||
Lens Dimensions 3 x 1.4 mm | ||
Standards/Approvals IEC 62471:2006 | ||
Colour Temperature 8000K | ||
Series KW DCLMS2 | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The OSRAM Opto Semiconductors TOPLED E3014 series has a wide beam angle with a compact format and is one of the smallest LED for screen backlighting. It has colour temperature of 8000 K. It is ideally used for injecting in light guides for homogeneous illumination applications.
Chip technology InGaN on Sapphire
Corrosion robustness class 1B
Operating temperature ranges from -40 to 85 °C
