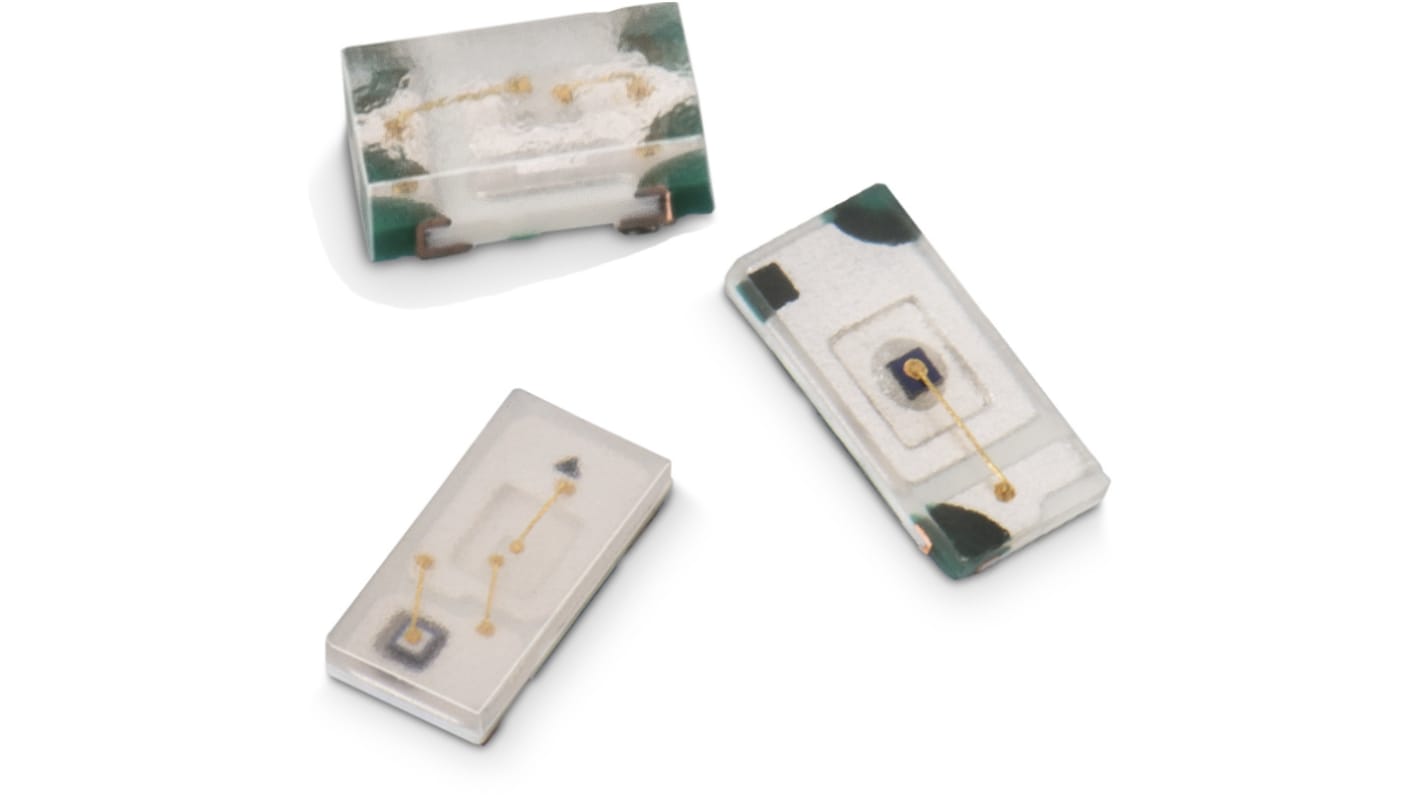

Wurth Elektronik2.4 V Red LED 1608 (0603) SMD, WL-SMCC 150060RS73220
- RS Stock No.:
- 176-6121
- Mfr. Part No.:
- 150060RS73220
- Brand:
- Wurth Elektronik
Save 11% when you buy 2500 units
Subtotal (1 pack of 50 units)*
£11.45
(exc. VAT)
£13.75
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,750 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
50 - 200 | £0.229 | £11.45 |
250 - 450 | £0.222 | £11.10 |
500 - 1200 | £0.215 | £10.75 |
1250 - 2450 | £0.209 | £10.45 |
2500 + | £0.203 | £10.15 |
*price indicative
- RS Stock No.:
- 176-6121
- Mfr. Part No.:
- 150060RS73220
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Wurth Elektronik | |
LED Colours | Red | |
Package Type | 1608 (0603) | |
Mounting Type | Surface Mount | |
Number of LEDs | 1 | |
Forward Voltage | 2.4 V | |
Luminous Intensity | 90 mcd | |
Number of Pins | 2 | |
Viewing Angle | 120 ° | |
Lens Shape | Rectangle | |
Dominant Wavelength | 624 nm | |
Dimensions | 1.6 x 0.8 x 0.14mm | |
Lens Finish | Clear | |
Lens Colour | Clear | |
Forward Current | 20mA | |
Series | WL-SMCC | |
Select all | ||
---|---|---|
Brand Wurth Elektronik | ||
LED Colours Red | ||
Package Type 1608 (0603) | ||
Mounting Type Surface Mount | ||
Number of LEDs 1 | ||
Forward Voltage 2.4 V | ||
Luminous Intensity 90 mcd | ||
Number of Pins 2 | ||
Viewing Angle 120 ° | ||
Lens Shape Rectangle | ||
Dominant Wavelength 624 nm | ||
Dimensions 1.6 x 0.8 x 0.14mm | ||
Lens Finish Clear | ||
Lens Colour Clear | ||
Forward Current 20mA | ||
Series WL-SMCC | ||
- COO (Country of Origin):
- TW
Characteristics
Compatible to IR reflow soldering
Miniaturized color effects
Size 0402
Super thin Chip LED of 0.4 mm with exceptional brightness
Industry standard footprint
Waterclear lens
High reliability
Size 0603
Industrial platform – 1.6 x 0.8 mm
Ultra thin 0.2 mm
PCB based
Temperature Tj = 115°C / 125°C
Applications
Front panel backlighting
Navigation and LCD backlighting
Size 0402
Cellphone display
Display for industrial control systems
Traffic display
Size 0603
Office Automation
Home appliances
Industrial equipment
Industrial switches and button backlighting
Dashboards
Entertainment consoles
Small pixel indoor signs
Compatible to IR reflow soldering
Miniaturized color effects
Size 0402
Super thin Chip LED of 0.4 mm with exceptional brightness
Industry standard footprint
Waterclear lens
High reliability
Size 0603
Industrial platform – 1.6 x 0.8 mm
Ultra thin 0.2 mm
PCB based
Temperature Tj = 115°C / 125°C
Applications
Front panel backlighting
Navigation and LCD backlighting
Size 0402
Cellphone display
Display for industrial control systems
Traffic display
Size 0603
Office Automation
Home appliances
Industrial equipment
Industrial switches and button backlighting
Dashboards
Entertainment consoles
Small pixel indoor signs
