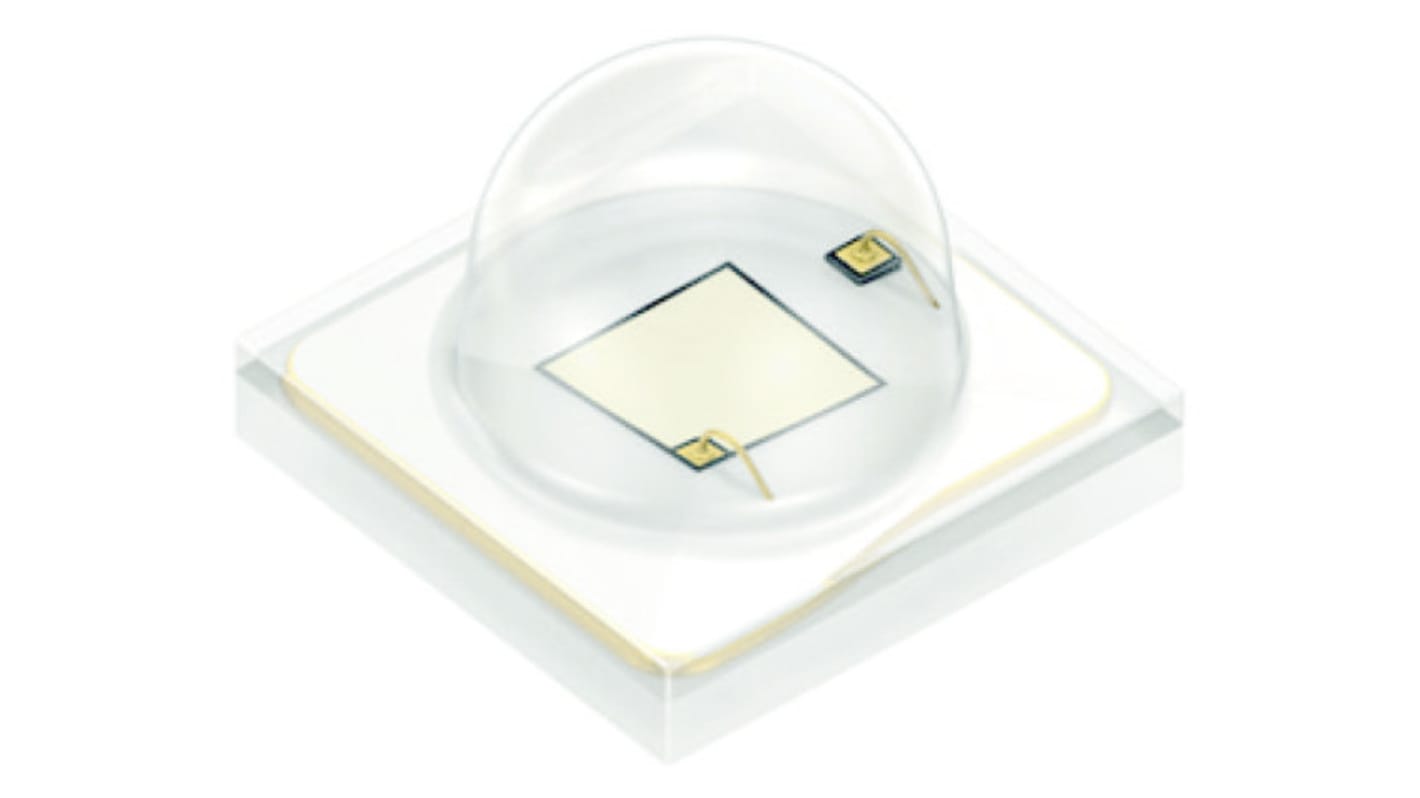

ams OSRAM3.2 V Blue LED SMD, OSLON SSL 80 GB CS8PM1.13-HYHZ-35-0
- RS Stock No.:
- 175-1860
- Mfr. Part No.:
- GB CS8PM1.13-HYHZ-35-0
- Brand:
- ams OSRAM
Available to back order for despatch when stock is available
Added
Price Each (On a Reel of 600)
£0.73
(exc. VAT)
£0.88
(inc. VAT)
| Units | Per unit | Per Reel* |
| 600 - 5400 | £0.73 | £438.00 |
| 6000 - 14400 | £0.716 | £429.60 |
| 15000 + | £0.69 | £414.00 |
| *price indicative | ||
- RS Stock No.:
- 175-1860
- Mfr. Part No.:
- GB CS8PM1.13-HYHZ-35-0
- Brand:
- ams OSRAM
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details
New, higher performing OSLON SSL family LED with well known superior robustness, high reliability, long lifetime, low thermal resistance. Perfectly addressing applications demanding for high efficiency and long lifetime requirement.
Package: SMT ceramic package with silicone resin and silicone lens
Viewing angle at 50 % IV: 80°
colour: 465 nm (blue)
Luminous efficacy: typ. 30 lm/W
Corrosion Robustness: Superior Corrosion
Robustness
Applications
Accent and effect lighting
Architectural lighting
Shop lighting
Stage lighting
Luminous Flux: typ. 40 lm
Viewing angle at 50 % IV: 80°
colour: 465 nm (blue)
Luminous efficacy: typ. 30 lm/W
Corrosion Robustness: Superior Corrosion
Robustness
Applications
Accent and effect lighting
Architectural lighting
Shop lighting
Stage lighting
Luminous Flux: typ. 40 lm
Specifications
Attribute | Value |
|---|---|
| LED Colours | Blue |
| Mounting Type | Surface Mount |
| Number of LEDs | 1 |
| Forward Voltage | 3.2 V |
| Number of Pins | 2 |
| Viewing Angle | 80 ° |
| Luminous Flux | 45 lm |
| Lens Shape | Dome |
| Dominant Wavelength | 476 nm |
| Lens Colour | Clear |
| Forward Current | 100 → 1000mA |
| Dimensions | 3 x 3 x 2.21mm |
| Series | OSLON SSL 80 |
