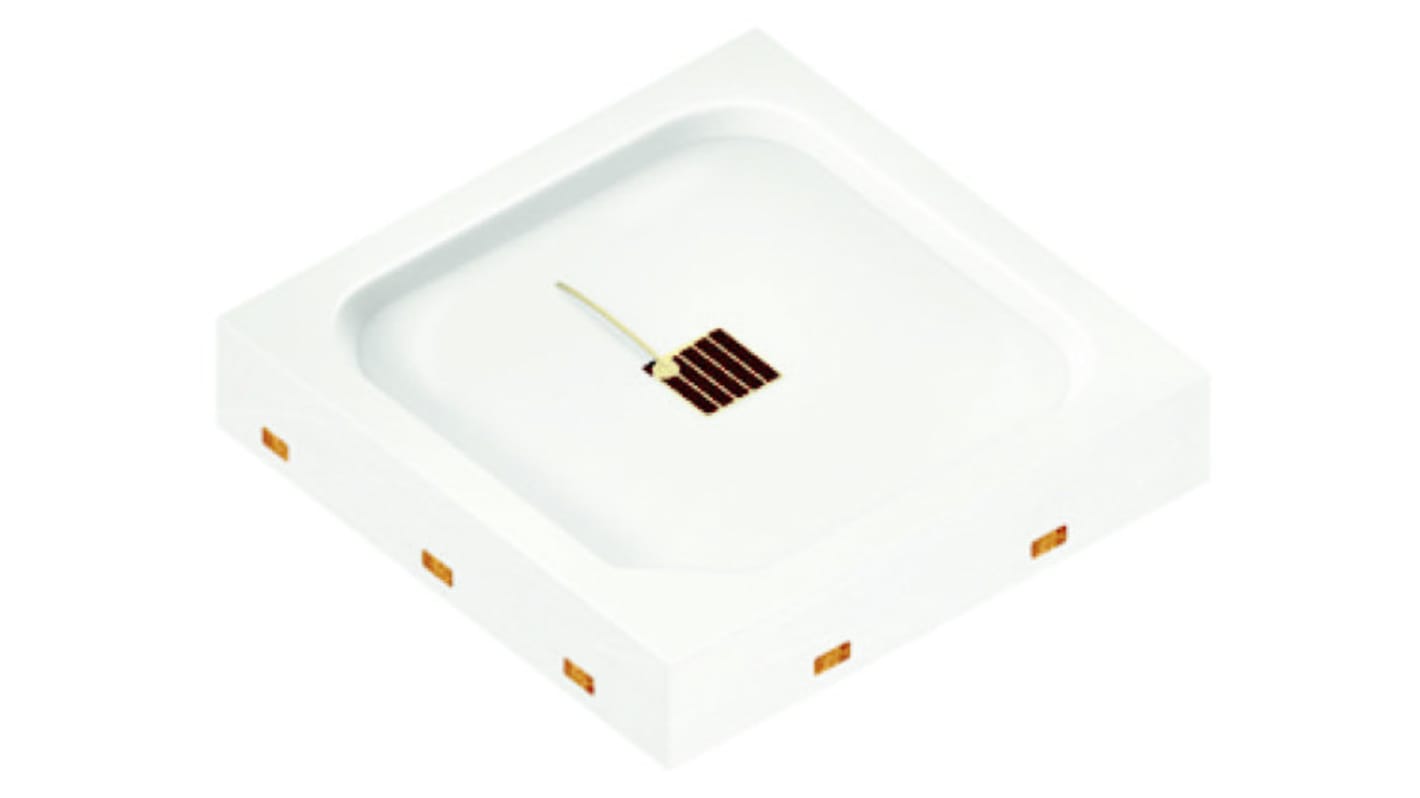

ams OSRAM2.4 V Red LED SMD, DURIS S5 GR PSLM31.23-FTGP-46-1
- RS Stock No.:
- 175-1824
- Mfr. Part No.:
- GR PSLM31.23-FTGP-46-1
- Brand:
- ams OSRAM
Subtotal (1 reel of 3000 units)*
£408.00
(exc. VAT)
£489.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 15,000 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.136 | £408.00 |
*price indicative
- RS Stock No.:
- 175-1824
- Mfr. Part No.:
- GR PSLM31.23-FTGP-46-1
- Brand:
- ams OSRAM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ams OSRAM | |
| LED Colours | Red | |
| Mounting Type | Surface Mount | |
| Number of LEDs | 1 | |
| Forward Voltage | 2.4 V | |
| Number of Pins | 2 | |
| Viewing Angle | 120 ° | |
| Luminous Flux | 19.4 lm | |
| Lens Shape | Square | |
| Dominant Wavelength | 630 nm | |
| Lens Colour | Clear | |
| Forward Current | 10 → 200mA | |
| Dimensions | 3 x 3 x 0.6mm | |
| Series | DURIS S5 | |
Select all | ||
|---|---|---|
Brand ams OSRAM | ||
LED Colours Red | ||
Mounting Type Surface Mount | ||
Number of LEDs 1 | ||
Forward Voltage 2.4 V | ||
Number of Pins 2 | ||
Viewing Angle 120 ° | ||
Luminous Flux 19.4 lm | ||
Lens Shape Square | ||
Dominant Wavelength 630 nm | ||
Lens Colour Clear | ||
Forward Current 10 → 200mA | ||
Dimensions 3 x 3 x 0.6mm | ||
Series DURIS S5 | ||
- COO (Country of Origin):
- CN
Package: white SMT package, colourless clear resin
Viewing angle at 50 % IV: 120°
colour: 623 nm ( red )
Luminous Flux: typ. 17 lm
Luminous efficacy: typ. 81 lm/W
Applications
Architectural lighting
Smart lighting
Cove lighting
Viewing angle at 50 % IV: 120°
colour: 623 nm ( red )
Luminous Flux: typ. 17 lm
Luminous efficacy: typ. 81 lm/W
Applications
Architectural lighting
Smart lighting
Cove lighting
