- RS Stock No.:
- 174-9840
- Mfr. Part No.:
- SM0805HCL
- Brand:
- Bivar
1350 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 25)
£0.335
(exc. VAT)
£0.402
(inc. VAT)
Units | Per unit | Per Pack* |
25 - 75 | £0.335 | £8.375 |
100 - 225 | £0.29 | £7.25 |
250 - 475 | £0.257 | £6.425 |
500 - 975 | £0.224 | £5.60 |
1000 + | £0.168 | £4.20 |
*price indicative |
- RS Stock No.:
- 174-9840
- Mfr. Part No.:
- SM0805HCL
- Brand:
- Bivar
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

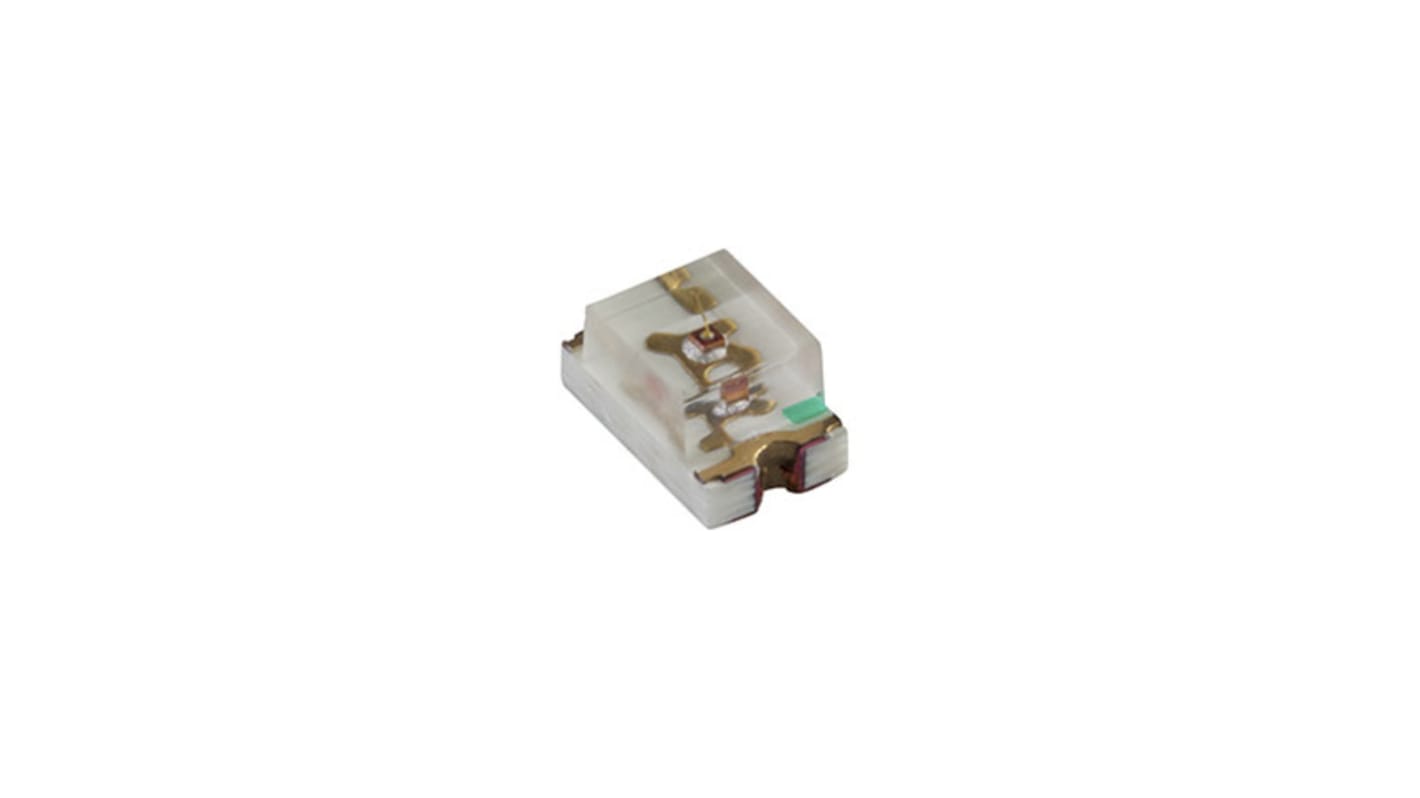

LED, SMD, 0805, HE Red, 645nm, 11.5mcd, Water Clear Lens, 130 Deg Viewing Angle, Low Current.
Industry Standard 0805 Package
Color: HE Red
Water Clear Lens
Wide Viewing Angle for Uniform Output
2mA Low Operating Current
Color: HE Red
Water Clear Lens
Wide Viewing Angle for Uniform Output
2mA Low Operating Current
Specifications
Attribute | Value |
---|---|
LED Colours | Red |
Package Type | 2012 (0805) |
Mounting Type | Surface Mount |
Number of LEDs | 1 |
Forward Voltage | 2.3 V |
Luminous Intensity | 11.5 mcd |
Number of Pins | 2 |
Viewing Angle | 130 ° |
Lens Shape | Dome |
Dominant Wavelength | 631 nm |
Lens Finish | Clear |
Forward Current | 30mA |
Dimensions | 2 x 1.2 x 0.8mm |
Lens Colour | Clear |
