- RS Stock No.:
- 169-7812
- Mfr. Part No.:
- KPA-2106SECK
- Brand:
- Kingbright
- RS Stock No.:
- 169-7812
- Mfr. Part No.:
- KPA-2106SECK
- Brand:
- Kingbright
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

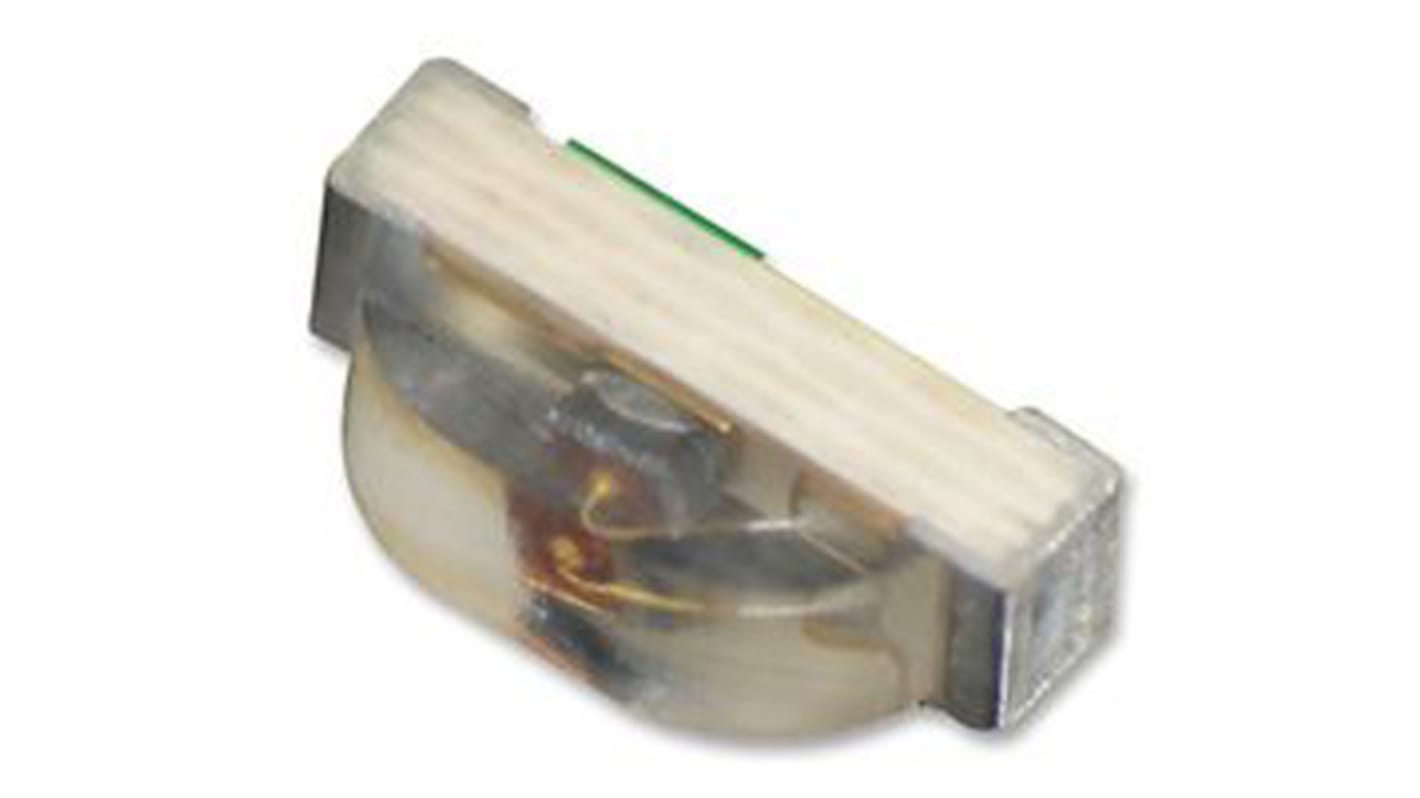

Kingbright SMT Right Angle Package
This family of LEDs, from Kingbright, are side looking surface mount (SMD) devices. They are available in single, full and bi-colour options from a variety of package sizes. There are also a range of different lens types. Suitable applications for the side looking LEDs include backlighting and indicators.
Side-looking LEDs
Right angle surface mounted (SMD)
Variety of colour options
Right angle surface mounted (SMD)
Variety of colour options
Visible Light LEDs, Kingbright
Specifications
Attribute | Value |
---|---|
LED Colours | Orange |
Package Type | 2106 |
Mounting Type | Surface Mount |
Number of LEDs | 1 |
Forward Voltage | 2.5 V |
Luminous Intensity | 250 mcd |
Number of Pins | 2 |
Viewing Angle | 120 ° |
Lens Shape | Dome |
Dominant Wavelength | 601 nm |
Lens Colour | Clear |
Dimensions | 2.1 x 0.6 x 1mm |
