Lite-On2.6 V RGB LED PLCC 4 SMD, LTSN-H213EGBW
- RS Stock No.:
- 168-9456
- Mfr. Part No.:
- LTSN-H213EGBW
- Brand:
- Lite-On
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 168-9456
- Mfr. Part No.:
- LTSN-H213EGBW
- Brand:
- Lite-On
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lite-On | |
| LED Colours | RGB | |
| Package Type | PLCC 4 | |
| Mounting Type | Surface Mount | |
| Number of LEDs | 3 | |
| Forward Voltage | 2.6 V | |
| Luminous Intensity | 355 (Red) mcd, 560 (Green) mcd, 71 (Blue) mcd | |
| Number of Pins | 4 | |
| Viewing Angle | 110 ° | |
| Lens Shape | Round | |
| Dominant Wavelength | 624 / 525 / 470 nm | |
| Dimensions | 2.1 x 1.9 x 1mm | |
| Lens Finish | Diffused | |
| Forward Current | 80mA | |
Select all | ||
|---|---|---|
Brand Lite-On | ||
LED Colours RGB | ||
Package Type PLCC 4 | ||
Mounting Type Surface Mount | ||
Number of LEDs 3 | ||
Forward Voltage 2.6 V | ||
Luminous Intensity 355 (Red) mcd, 560 (Green) mcd, 71 (Blue) mcd | ||
Number of Pins 4 | ||
Viewing Angle 110 ° | ||
Lens Shape Round | ||
Dominant Wavelength 624 / 525 / 470 nm | ||
Dimensions 2.1 x 1.9 x 1mm | ||
Lens Finish Diffused | ||
Forward Current 80mA | ||
- COO (Country of Origin):
- CN

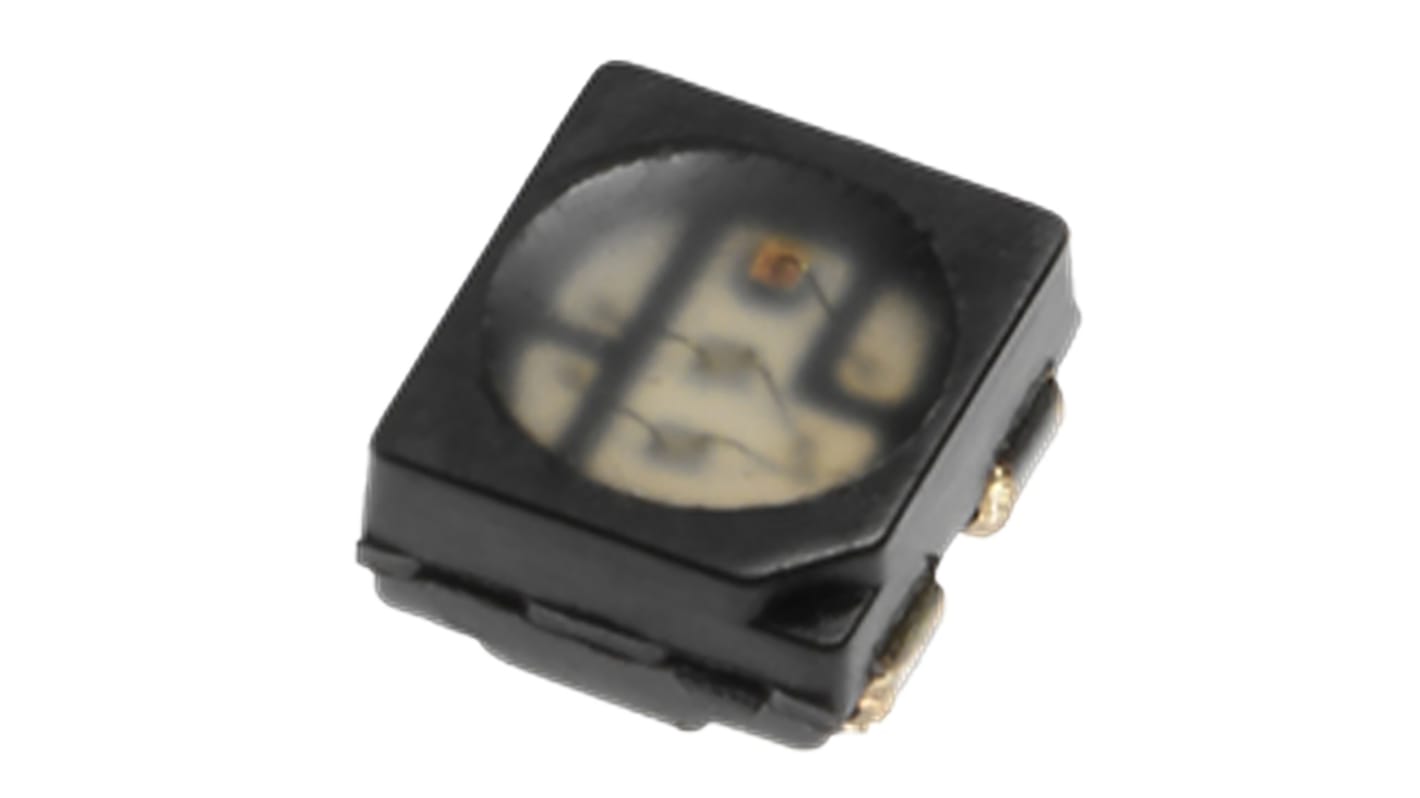

Lite-On SMD PLCC RGB LEDs
Tri-colour RGB LEDs from Lite-On in compact PLCC SMD packages. The LEDs have a diffused lens and the RGB elements allow the creation of any colour within the visual spectrum, including white light. The PLCC packages are suitable for automated PCB assembly using component placement equipment.
Visible Light LEDs, Lite-On
