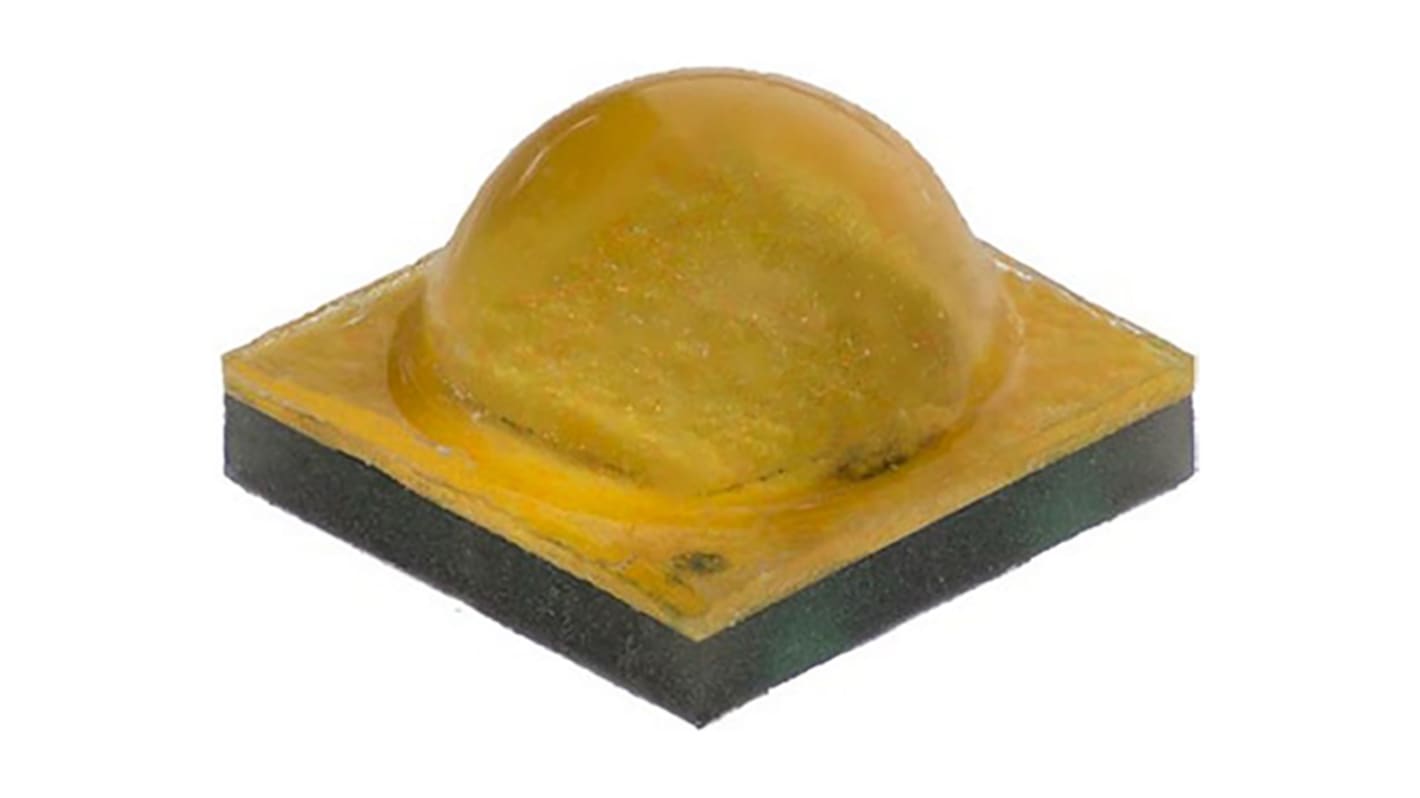

Cree LED3.06 V White LED 3535 SMD, XLamp XP-G3 XPGDWT-01-0000-00LE5
- RS Stock No.:
- 162-4445
- Mfr. Part No.:
- XPGDWT-01-0000-00LE5
- Brand:
- Cree LED
Available to back order for despatch when stock is available
Added
Price Each (On a Reel of 1000)
£0.666
(exc. VAT)
£0.799
(inc. VAT)
| Units | Per unit | Per Reel* |
| 1000 + | £0.666 | £666.00 |
| *price indicative | ||
- RS Stock No.:
- 162-4445
- Mfr. Part No.:
- XPGDWT-01-0000-00LE5
- Brand:
- Cree LED
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Cree XLamp XP-G3 Series White LEDs
A range of high output white SMT LEDs from Cree. The XLamp XP-G3 LED incorporates SC5 technology to deliver both high reliability at high operating temperatures, and high efficacy to meet DLC (DesignLights Consortium) classification requirements. The XP-G3 LEDs are optimised for directional, high-lumen applications, from indoor and outdoor, to portable and lamp retrofits. The simplicity of the XP-G platform design delivers a compact package with established benefits.
• Available in five correlated colour temperatures
• ANSI-compatible chromaticity bins
• Binning and specification at 85°C
• Maximum Drive Current: 2 A
• Low Thermal Resistance: 3°C/W
• Wide Viewing Angle: 125°
• JEDEC J‑STD‑020C Standard for moisture/reflow sensitivity
• Package dimensions: 3.45 x 3.45 x 2.26 mm
• ANSI-compatible chromaticity bins
• Binning and specification at 85°C
• Maximum Drive Current: 2 A
• Low Thermal Resistance: 3°C/W
• Wide Viewing Angle: 125°
• JEDEC J‑STD‑020C Standard for moisture/reflow sensitivity
• Package dimensions: 3.45 x 3.45 x 2.26 mm
Cree - White LEDs
Specifications
Attribute | Value |
|---|---|
| LED Colours | White |
| Package Type | 3535 |
| Mounting Type | Surface Mount |
| Number of LEDs | 1 |
| Forward Voltage | 3.06 V |
| Number of Pins | 2 |
| Viewing Angle | 125 ° |
| Luminous Flux | 179 (Minimum) lm |
| Lens Shape | Dome |
| Lens Colour | Clear |
| Forward Current | 2000mA |
| Colour Temperature | 4000K |
| Series | XLamp XP-G3 |
| Dimensions | 3.45 x 3.45 x 2.26mm |
| Priced to Clear | Yes |
