Wurth Elektronik 3.2 V Blue LED 2012 Surface Mount WL-SMCW

View all LEDs

Subtotal (1 reel of 4000 units)*

£404.00

(exc. VAT)

£484.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 4,000 unit(s) shipping from 04 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
4000 +£0.101£404.00

*price indicative

Development Kit Box with a flash stating "Win"
Win A Würth Elektronik Lighting Development Kit
Spend as little as £1 and win a Würth Elektronik Lighting Kit, complete with exclusive follow-up technical support from the experts themselves. Promotion ends 30th November 2025.
Claim my Lighting Kit
RS Stock No.:
162-3745
Mfr. Part No.:
150080BS75000
Brand:
Wurth Elektronik
Find similar products by selecting one or more attributes.
Select all

Brand

Wurth Elektronik

LED Colour

Blue

Product Type

LED

Package Type

2012

Maximum Forward Current

30mA

Packaging

Tape & Reel

Mount Type

Surface Mount

Forward Voltage

3.2V

Maximum Power Dissipation

105mW

Number of Pins

2

Viewing Angle

140 °

LED Luminosity

145 mcd

Lens Dimensions

1.4 x 0.7 mm

Lens Shape

Rectangular

Standards/Approvals

RoHS

Dominant Wavelength

470 nm

Lens Finish

Clear

Lens Colour

Clear

Series

WL-SMCW

Automotive Standard

No

COO (Country of Origin):
CN

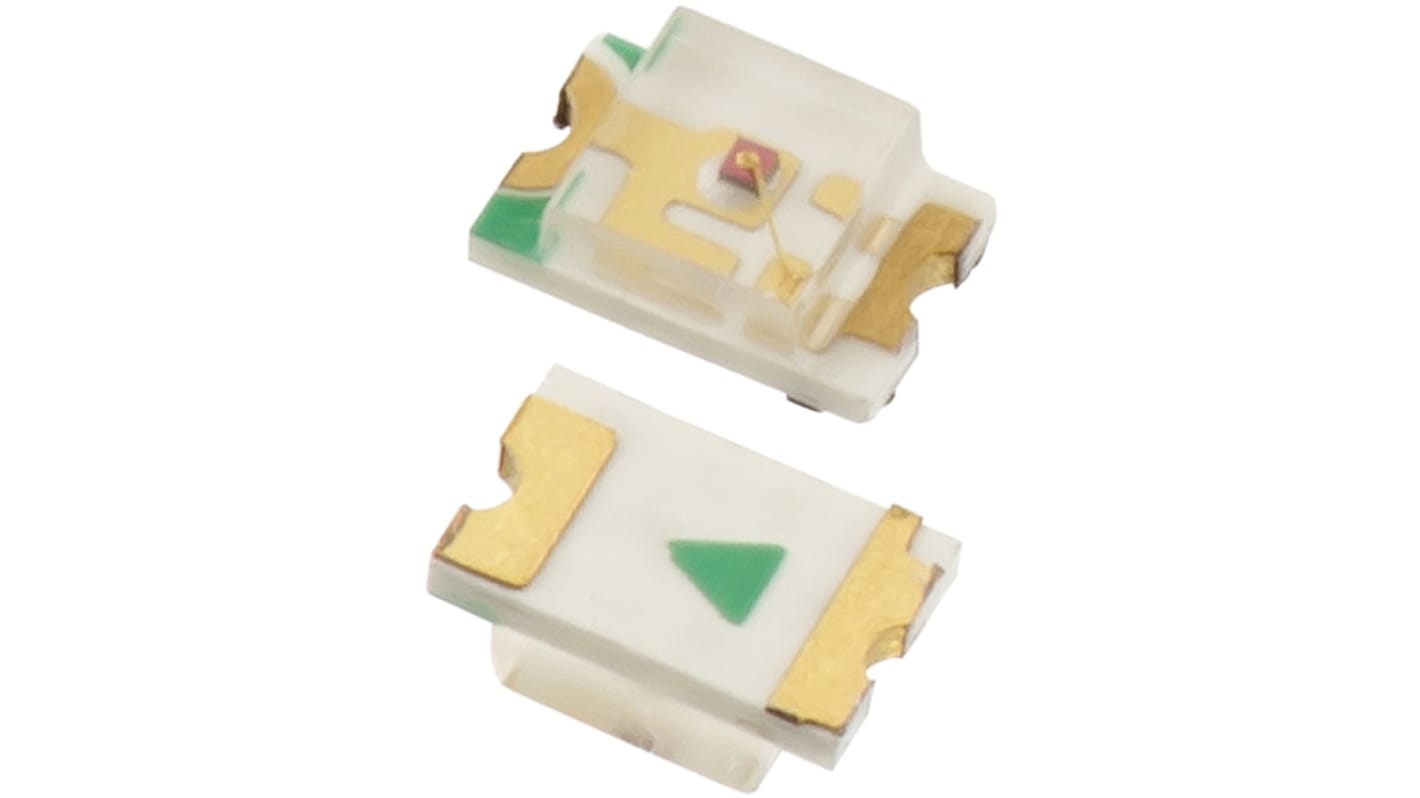

WL-SMCW SMD Chip LEDs


The WL-SMCW series from Wurth Elektronik are single colour SMD chip LEDs with water-clear lens. WL-SMCW LEDs are available in a range of package sizes including 0603, 0805 and 1206. These top-view LEDs exhibit exceptionally high brightness from an ultra-compact SMT package. They have a wide viewing angle and low energy consumption, and offer high reliability and long service life. The LEDs are suitable for a multitude of applications including backlighting for mobile and portable devices, switch and indicator illumination, message boards and displays, optical indicators, toys and general lighting.

Features of the WL-SMCW LEDs:

Range of different single colour options

Industry-standard packages: 0603 / 0805 / 1206

Water-clear rectangular lens

Top viewing package

Wide viewing angle

Visible Light LEDs, Wurth


A wide range of visible light LEDs from Würth Elektronik available in both SMT and through-hole packages. Both water-clear and diffused types are available and all devices feature high luminous efficacy with low energy consumption. The LEDs are suitable for a very wide range of applications which include backlighting for LCDs, indicator and switch illumination, indoor and outdoor message displays, industrial control system and traffic signals, marker lights, directional indicators and decorative lighting.
