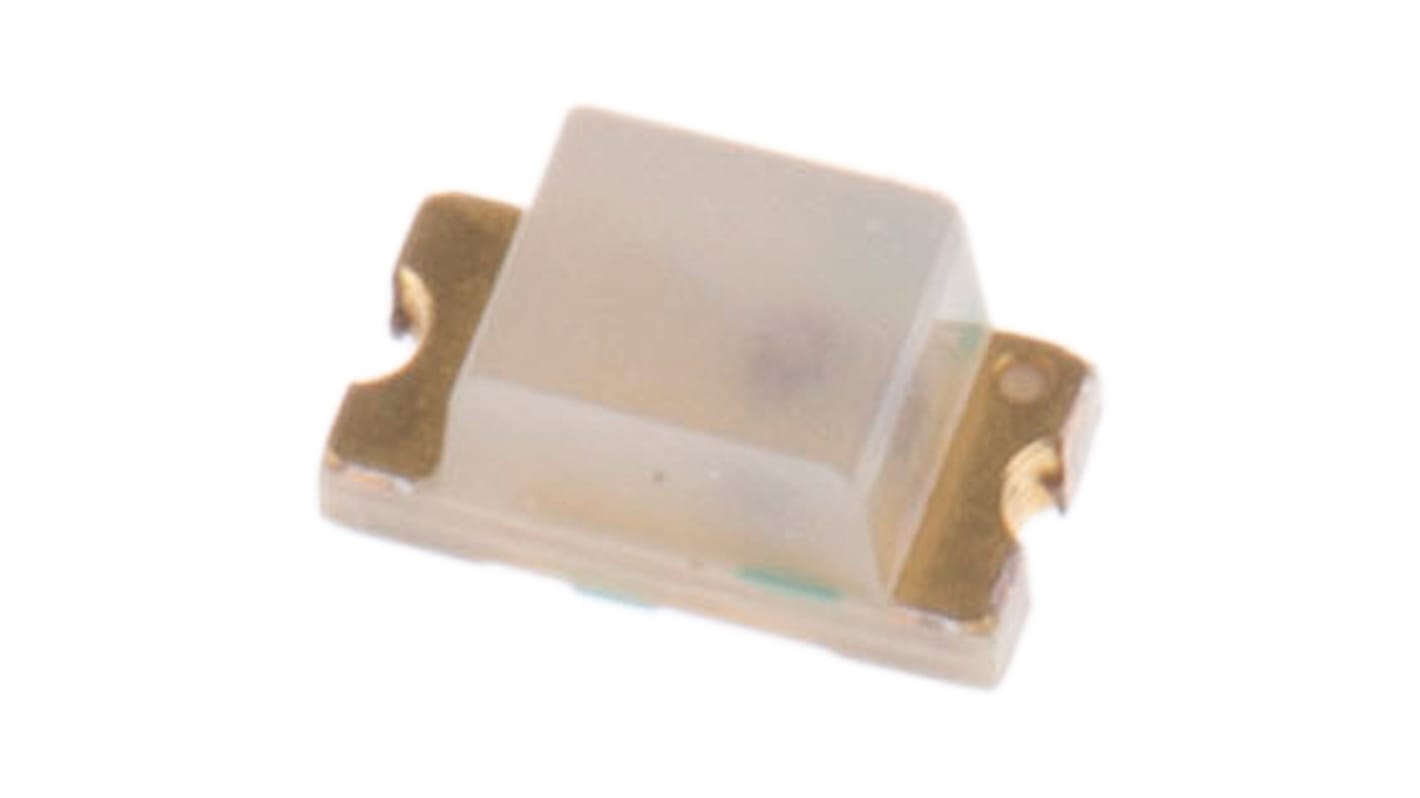

ams OSRAM2.5 V Orange LED 1608 (0603) SMD, CHIP LED 0603 LO Q976
- RS Stock No.:
- 121-7786
- Mfr. Part No.:
- LO Q976
- Brand:
- ams OSRAM
Available to back order for despatch 22/05/2024
Added
Price Each (On a Reel of 4000)
£0.041
(exc. VAT)
£0.049
(inc. VAT)
| Units | Per unit | Per Reel* |
| 4000 - 16000 | £0.041 | £164.00 |
| 20000 + | £0.04 | £160.00 |
| *price indicative | ||
- RS Stock No.:
- 121-7786
- Mfr. Part No.:
- LO Q976
- Brand:
- ams OSRAM
Technical Reference
Legislation and Compliance
Product Details
OSRAM CHIPLED 0603 Series LEDs
The OSRAM CHIPLED 0603 series of LEDs, from OSRAM Opto Semiconductors, forms a part of the CHIPLED family. The CHIPLED 0402 come in the standard 0603 compact footprint. Ideal for applications that do not require a high powered LED, the CHIPLED 0603 can be used for various applications. These applications include; key/LCD-backlighting, eraser arrays, narrow distance displays or indicators for external modems.
Features of the CHIPLED 0603 LEDs:
Dimensions: 1.6 x 0.8 mm
Industry standard 0603 package
Flat (0.3 mm) packages available
Variety of colours
Dimensions: 1.6 x 0.8 mm
Industry standard 0603 package
Flat (0.3 mm) packages available
Variety of colours
Note
Amber LEDs – Originally designed for use in automotive brake-light applications, OSRAM amber LEDs can appear red due to a high dominant wavelength value. Refer to a dominant wavelength colour chart to find your chosen LED colour.
Specifications
Attribute | Value |
|---|---|
| LED Colours | Orange |
| Package Type | 1608 (0603) |
| Mounting Type | Surface Mount |
| Number of LEDs | 1 |
| Forward Voltage | 2.5 V |
| Luminous Intensity | 280 mcd |
| Number of Pins | 2 |
| Viewing Angle | 160 ° |
| Luminous Flux | 0.52 lm |
| Lens Shape | Rectangular |
| Dominant Wavelength | 605 nm |
| Series | CHIP LED 0603 |
| Dimensions | 1.6 x 0.8 x 0.8mm |
| Lens Colour | Clear |
