ams OSRAM 13.5 V White LED Surface Mount Surface KW4 HKL533.TK KW4 HKL533.TK-F5FB-4L35M3-AGAE
- RS Stock No.:
- 637-470
- Mfr. Part No.:
- KW4 HKL533.TK-F5FB-4L35M3-AGAE
- Brand:
- ams OSRAM
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£3.60
(exc. VAT)
£4.32
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 1,489 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £3.60 |
| 10 - 24 | £3.16 |
| 25 - 99 | £2.83 |
| 100 - 499 | £2.46 |
| 500 + | £2.03 |
*price indicative
- RS Stock No.:
- 637-470
- Mfr. Part No.:
- KW4 HKL533.TK-F5FB-4L35M3-AGAE
- Brand:
- ams OSRAM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ams OSRAM | |
| Product Type | LED | |
| LED Colour | White | |
| Package Type | Surface Mount | |
| Maximum Forward Current | 1500mA | |
| Mount Type | Surface | |
| Packaging | Tape & Reel | |
| Number of LEDs | 2 | |
| Forward Voltage | 13.5V | |
| Viewing Angle | 120 ° | |
| Lens Dimensions | 6.8 x 3.75 mm | |
| LED Luminous Flux | 1550 to 1940 lm | |
| Lens Shape | Flat | |
| Standards/Approvals | AEC-Q102, IEC 62471:2006 | |
| Series | KW4 HKL533.TK | |
| Automotive Standard | AEC-Q102 | |
| Select all | ||
|---|---|---|
Brand ams OSRAM | ||
Product Type LED | ||
LED Colour White | ||
Package Type Surface Mount | ||
Maximum Forward Current 1500mA | ||
Mount Type Surface | ||
Packaging Tape & Reel | ||
Number of LEDs 2 | ||
Forward Voltage 13.5V | ||
Viewing Angle 120 ° | ||
Lens Dimensions 6.8 x 3.75 mm | ||
LED Luminous Flux 1550 to 1940 lm | ||
Lens Shape Flat | ||
Standards/Approvals AEC-Q102, IEC 62471:2006 | ||
Series KW4 HKL533.TK | ||
Automotive Standard AEC-Q102 | ||
- COO (Country of Origin):
- MY

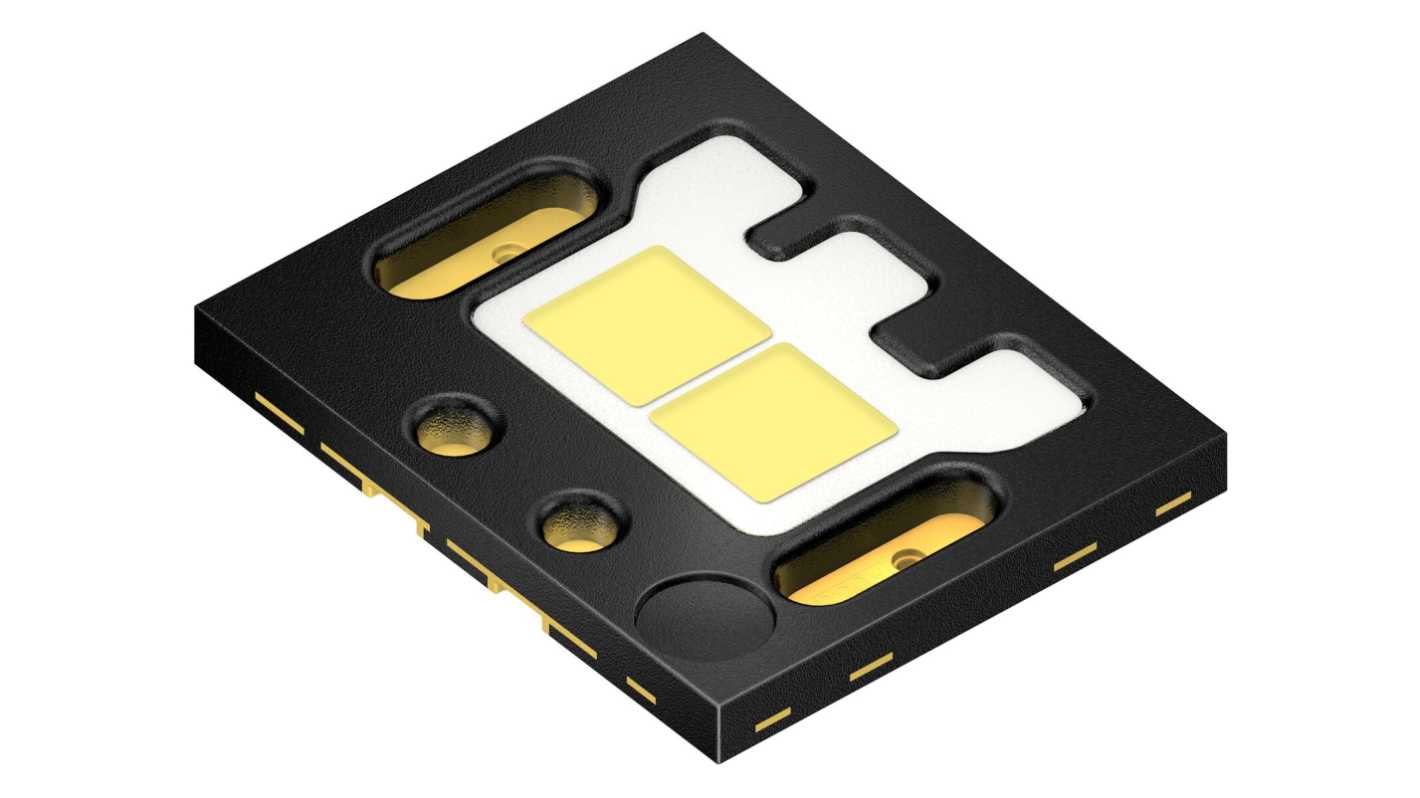

The ams OSRAM Black Flat S is a high-brightness LED with excellent luminance for strong visibility. Its black lead frame package ensures superior contrast and optical performance. The design also offers high second-board reliability. Ideal for standard automotive headlamp applications.
AEC Q102 qualified
Corrosion robustness class is 3B
SMD epoxy package
