Osram Opto2.15 V Super Red LED SMT SMD, KS DDLM32.23 KS DDLM32.23-FQGR-68-D1G2
- RS Stock No.:
- 331-659
- Mfr. Part No.:
- KS DDLM32.23-FQGR-68-D1G2
- Brand:
- OSRAM Opto Semiconductors
Subtotal (1 tape of 10 units)*
£0.90
(exc. VAT)
£1.10
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3,950 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
---|---|---|
10 + | £0.09 | £0.90 |
*price indicative
- RS Stock No.:
- 331-659
- Mfr. Part No.:
- KS DDLM32.23-FQGR-68-D1G2
- Brand:
- OSRAM Opto Semiconductors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | OSRAM Opto Semiconductors | |
LED Colours | Super Red | |
Package Type | SMT | |
Mounting Type | Surface Mount | |
Forward Voltage | 2.15 V | |
Series | KS DDLM32.23 | |
Select all | ||
---|---|---|
Brand OSRAM Opto Semiconductors | ||
LED Colours Super Red | ||
Package Type SMT | ||
Mounting Type Surface Mount | ||
Forward Voltage 2.15 V | ||
Series KS DDLM32.23 | ||
- COO (Country of Origin):
- CN

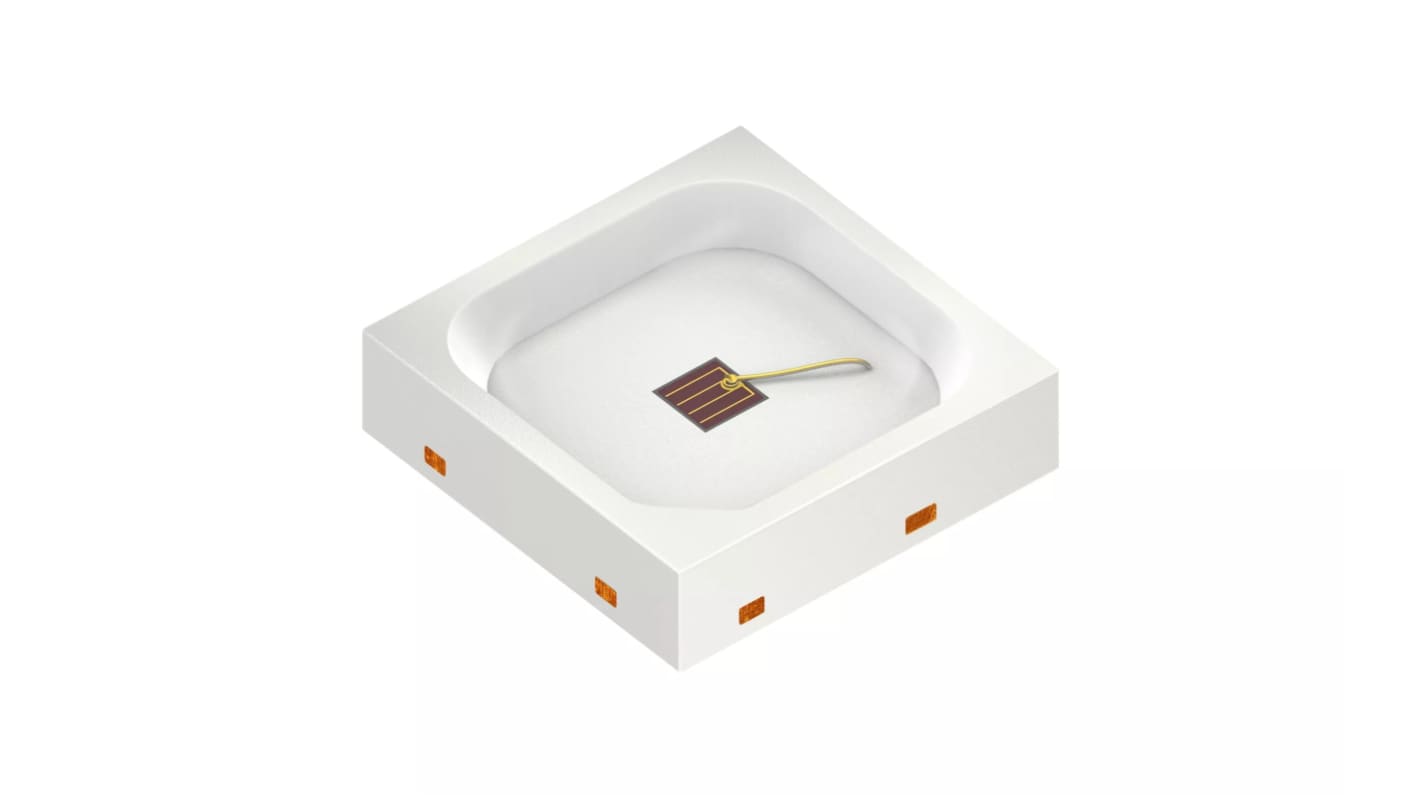

The OSRAM Opto Semiconductors SYNIOS S2222 square package color LED with just 2mm outline combines best performance with a small footprint for environments where improved corrosion robustness is needed. A centralized chip allows an easy integration into optical systems. The availability of all main colors and white points gives highest flexibility in various application areas.
Package White SMT Package, Colorless Clear Silicone Resin
Chip Technology Thin film
Typical Radiation 120° Lambertian Emitter
Color λdom 632 nm Super Red
ESD Protection 2 kV ANSI/ESDA/JEDEC JS-001 HBM Class 2
Luminous Flux at 632 nm Typical 15.0 lm
Corrosion Robustness Class 3B 40°C 90% RH 15 ppm H2S 14 Days
Chip Technology Thin film
Typical Radiation 120° Lambertian Emitter
Color λdom 632 nm Super Red
ESD Protection 2 kV ANSI/ESDA/JEDEC JS-001 HBM Class 2
Luminous Flux at 632 nm Typical 15.0 lm
Corrosion Robustness Class 3B 40°C 90% RH 15 ppm H2S 14 Days
Applications
Ambient Lighting
Entertainment
Factory Automation
Home and Building Automation
Indoor Lighting
Material Processing
Projection and Display
Robotics
Transportation
Entertainment
Factory Automation
Home and Building Automation
Indoor Lighting
Material Processing
Projection and Display
Robotics
Transportation
