MEAN WELL LED Driver, 35V Output, 60W Output, 2.1A Output, Constant Current
- RS Stock No.:
- 876-4749
- Mfr. Part No.:
- HBG-60-2100
- Brand:
- MEAN WELL
Available to back order for despatch 23/09/2024
Price Each
£25.74
(exc. VAT)
£30.89
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £25.74 |
| 5 - 9 | £24.45 |
| 10 - 24 | £23.61 |
| 25 - 49 | £22.90 |
| 50 + | £21.81 |
- RS Stock No.:
- 876-4749
- Mfr. Part No.:
- HBG-60-2100
- Brand:
- MEAN WELL

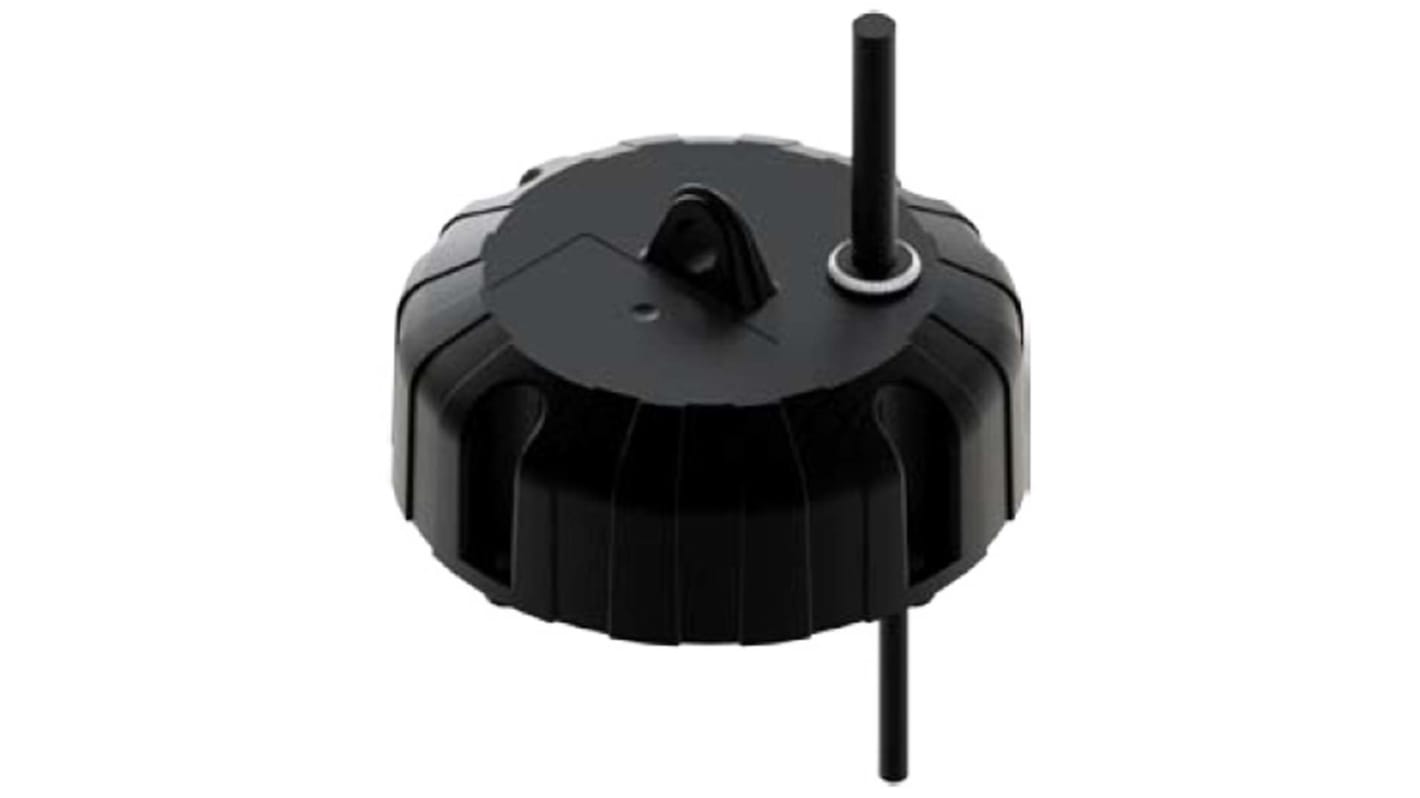

60W Constant Current LED Driver Power Supply for Bay Lighting HBG-60 Series
The Mean Well HBG-60 is a series of LED Power supplies to fulfil the various illumination demands. These LED drivers feature a circular design which fits perfectly in the structure of high bay and low bay lighting fixtures. The HBG-60 comes in a 94V-0 flame retardant plastic enclosure. The structure of this LED power driver is designed to make the HBG-60 series very easy to assemble. Designed with up to date high efficiency topology these LED Drivers possess up to 91% of high efficiency and can be cooled by free air convection from -40°C to +70°C ambient temperature. These constant current LED drivers are suitable for applications such as LED high/low bay lighting, mining lighting, stage lighting and LED spot lighting.
Circular shape design with flame retardant plastic case
Constant current design
91% high efficiency
Wide range input 90 to 295Vac
Built-in active PFC function
Cooling by free air convection
-40 to +70°C working temperature
Short circuit and over temperature protections
Fully isolated plastic case
Class II power unit, no FG
Constant current design
91% high efficiency
Wide range input 90 to 295Vac
Built-in active PFC function
Cooling by free air convection
-40 to +70°C working temperature
Short circuit and over temperature protections
Fully isolated plastic case
Class II power unit, no FG
Standards
UL8750, CSA C22.2 No. 250.13-12, ENEC EN61347-1 & EN61347-2-13 independent, EN62384 approved
Approvals
UL, CUL, ENEC, CB, CE
Mean Well LED Drivers, Constant Current
Attribute | Value |
|---|---|
| Output Voltage | 35V |
| Maximum Output Power | 60W |
| Output Current | 2.1A |
| Dimmable | No |
| Input Voltage | 127 → 417 V dc, 90 → 295 V ac |
| Operation | Constant Current |
| LED Driver Type | LED Driver |
| AC or DC Input Voltage | ac, dc |
| Output | 35 V @ 2100 mA |
| Current Rating | 700 mA @ 115 V ac |
| Voltage Rating | 127 → 417 V dc, 90 → 295 V ac |
| Series | HBG-60 |
| Number of Outputs | 1 |
| Configuration | Enclosed |
| Standards Met | CB, CE, CSA C22.2 No.250.13-12, cULus, EN61347-2-13, EN-62384, ENEC 05, ENEC EN61347-1, UL8750 |
| Primary Type | AC-DC, DC-DC |
