Recom, 24 → 36V Output, 36W Output, 1A Output, Constant Current
- RS Stock No.:
- 829-3758
- Mfr. Part No.:
- RACD35-1000A
- Brand:
- Recom
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 829-3758
- Mfr. Part No.:
- RACD35-1000A
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Recom | |
Output Voltage | 24 → 36V | |
Maximum Output Power | 36W | |
Output Current | 1A | |
Input Voltage | 90 → 305 V ac | |
Operation | Constant Current | |
Dimming Operation | 1-10 V PWM Resistance | |
AC or DC Input Voltage | ac | |
IP Rating | IP67 | |
Voltage Rating | 90 → 305V ac | |
Select all | ||
---|---|---|
Brand Recom | ||
Output Voltage 24 → 36V | ||
Maximum Output Power 36W | ||
Output Current 1A | ||
Input Voltage 90 → 305 V ac | ||
Operation Constant Current | ||
Dimming Operation 1-10 V PWM Resistance | ||
AC or DC Input Voltage ac | ||
IP Rating IP67 | ||
Voltage Rating 90 → 305V ac | ||
- COO (Country of Origin):
- CN

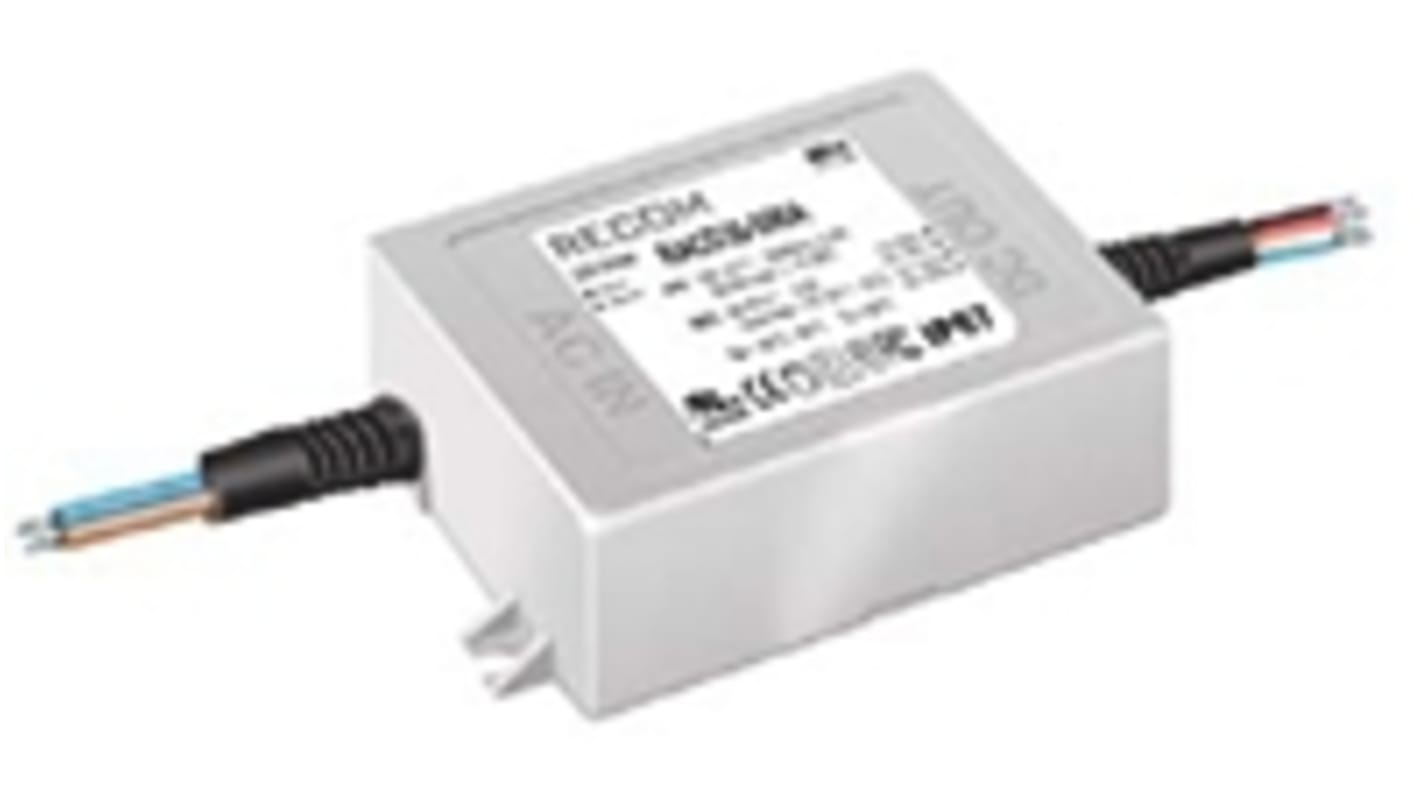

35W LED Driver, Constant Current, RACD35-A Series
The Recom RACD35-A Series is a range of dimmable LED Drivers for constant current LED luminaires. The RACD35-A has a wide input voltage range of 90 to 305 Vac, which means that they can be used worldwide. These class 2 power supplies operate with efficiency of up to 83% and active PFC, with power factors exceeding 0.90, the RACD35-A series is protected against short circuit, overvoltage and over temperature conditions. These LED Drivers come with a 3-in-1 dimming function and can be controlled with analogue, PWM, or external resistor dimming. Due to their IP67 rated enclosures these LED Drivers are protected against dust and moisture and can be installed in industrial or out-buildings, as well as damp rooms like bathrooms or basements.
35W Class II AC-DC LED Power Supply
500, 700, 1000, 1400mA or 2500mA Output
Active power factor correction >0.90
Efficiency up to 83%
IP67 certified
3 in 1 dimming
500, 700, 1000, 1400mA or 2500mA Output
Active power factor correction >0.90
Efficiency up to 83%
IP67 certified
3 in 1 dimming
Standards
UL8750, EN61347, EN55015, EN61547
