- RS Stock No.:
- 738-5718
- Mfr. Part No.:
- RCD-24-0.70/PL/B
- Brand:
- Recom
88 In stock - FREE next working day delivery available
Added
Price Each
£15.44
(exc. VAT)
£18.53
(inc. VAT)
Units | Per unit |
1 - 4 | £15.44 |
5 - 9 | £14.81 |
10 - 24 | £14.49 |
25 - 49 | £14.20 |
50 + | £13.91 |
- RS Stock No.:
- 738-5718
- Mfr. Part No.:
- RCD-24-0.70/PL/B
- Brand:
- Recom
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

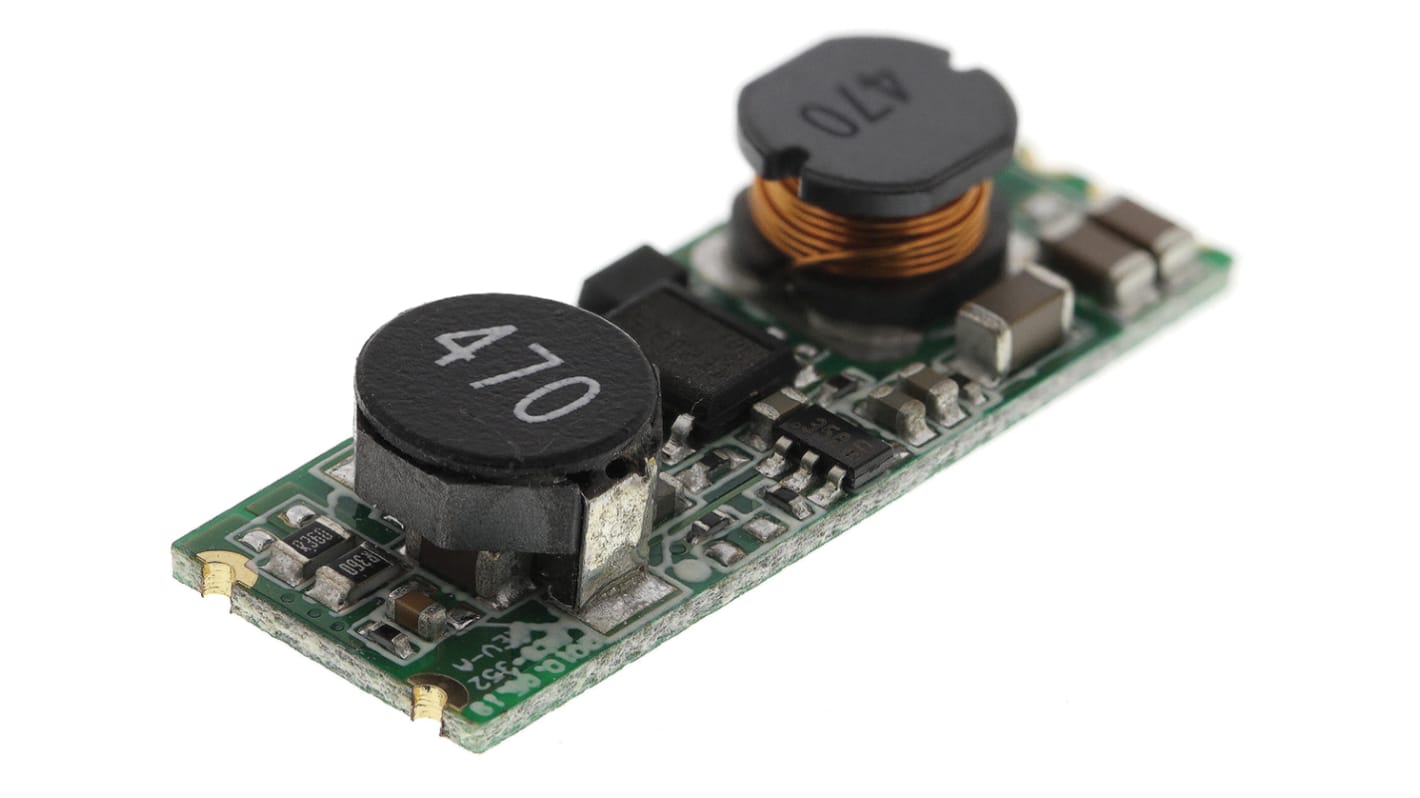

RECOM Constant-Current LED Driver, 24.5W Maximum Output Power, Dimmable - RCD-24-PL Series - RCD-24-0.70/PL/B
Regulate the current flowing through your high-power LED devices with this constant-current LED driver from RECOM. It keeps input current at a steady level, which means the output current is safe for your LEDs and prevents damage to them. This component has 96% efficiency at maximum input voltage, which means there's minimal energy loss for high levels of productivity. Its compact, open-frame design makes it ideal for use in applications where space is at a premium.
Features & Benefits
• Low weight of 1.9g makes it easy to handle and places minimal strain on your system
• Broad temperature range between -40°C and +75°C for use in demanding industrial conditions
• Compact dimensions of 31 (L) x 11.4 (W) x 6.6mm (H) for use in small setups
• Low heat dissipation of 700mW for energy efficiency
• Broad temperature range between -40°C and +75°C for use in demanding industrial conditions
• Compact dimensions of 31 (L) x 11.4 (W) x 6.6mm (H) for use in small setups
• Low heat dissipation of 700mW for energy efficiency
Applications
• Residential lighting
• LED signs
• Vehicle lights
• LED signs
• Vehicle lights
Can this LED driver regulate lights solely via an analogue controller?
Yes. This driver can regulate LEDs using independent analogue or digital PWM (pulse width modulation) controllers or a combination of both, which gives you a versatile means of control.
LED Drivers
Specifications
Attribute | Value |
---|---|
Output Voltage | 2 → 35V dc |
Maximum Output Power | 24.5W |
Output Current | 700mA |
Dimmable | Yes |
Input Voltage | 4.5 → 36 V dc |
Operation | Constant Current |
LED Driver Type | LED Driver |
Dimming Operation | 0 to 4.35 V dc, PWM |
AC or DC Input Voltage | dc |
Current Rating | 0 → 700mA |
Voltage Rating | 36V dc |
Series | RCD-24-PL |
Number of Outputs | 1 |
Configuration | Open Frame |
Primary Type | DC-DC |
