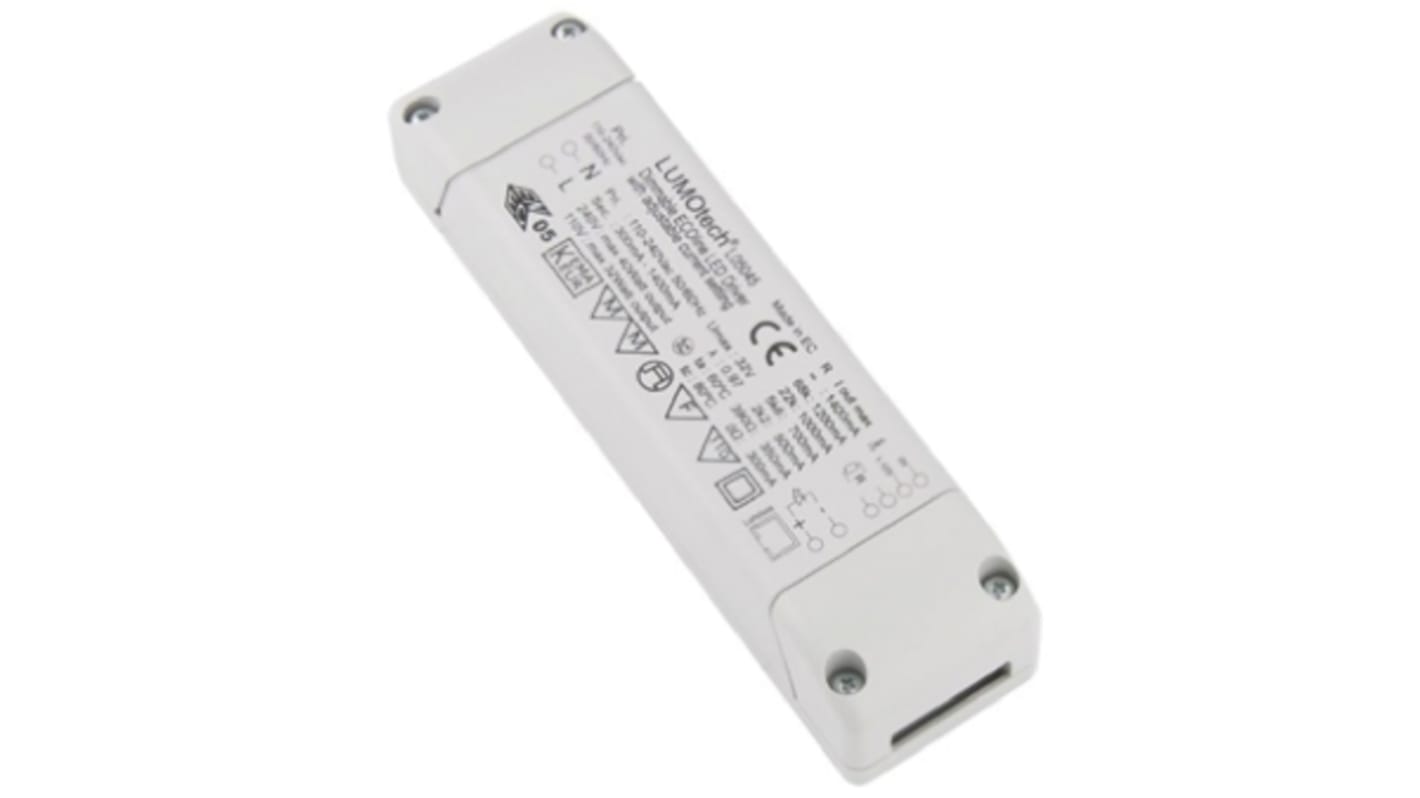

Lumotech LED Driver, 15V, 32 V Output, 40 W Output, 1400mA, 160 mA 1/10 V, Potentiometer, PWM
- RS Stock No.:
- 723-8710
- Mfr. Part No.:
- L05045
- Brand:
- Lumotech
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 723-8710
- Mfr. Part No.:
- L05045
- Brand:
- Lumotech
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lumotech | |
| Output Voltage | 15, 32V | |
| Product Type | LED Driver | |
| Maximum Output Power | 40W | |
| Input Voltage | 110, 240V ac | |
| Mount Type | Screw | |
| Sub Type | LED Driver | |
| Dimming Operation | 1/10 V, Potentiometer, PWM | |
| Input Voltage Type | AC | |
| Terminal Type | Clamp Connection | |
| IP Rating | IP20 | |
| Driver Current | 1400, 160mA | |
| Operating Modes | Constant Current | |
| LED Voltage | 16, 32V | |
| Series | ECOline | |
| Standards/Approvals | RoHS, KEMA KEUR, ENEC-05, EN 62384, EN 55015, EN 61000-3-2, EN 61347-2-13, CE, EN 61547 | |
| Number of Outputs | 5 | |
| Configuration | Enclosed | |
| Power Dissipation | 40W | |
| Primary Type | AC-DC | |
| Select all | ||
|---|---|---|
Brand Lumotech | ||
Output Voltage 15, 32V | ||
Product Type LED Driver | ||
Maximum Output Power 40W | ||
Input Voltage 110, 240V ac | ||
Mount Type Screw | ||
Sub Type LED Driver | ||
Dimming Operation 1/10 V, Potentiometer, PWM | ||
Input Voltage Type AC | ||
Terminal Type Clamp Connection | ||
IP Rating IP20 | ||
Driver Current 1400, 160mA | ||
Operating Modes Constant Current | ||
LED Voltage 16, 32V | ||
Series ECOline | ||
Standards/Approvals RoHS, KEMA KEUR, ENEC-05, EN 62384, EN 55015, EN 61000-3-2, EN 61347-2-13, CE, EN 61547 | ||
Number of Outputs 5 | ||
Configuration Enclosed | ||
Power Dissipation 40W | ||
Primary Type AC-DC | ||
ECOline Series LED Driver
The ECOline series of mains powered LED drivers from Lumotech are high efficiency and feature a very high power factor of 0.97 at 230V or 0.99 at 110V.
Mains input voltage: 110/240V
SELV equivalent
Long lifetime: 80,000 hours at Ta 50°C
Very high power factor: 0.97
Operating temperature: -25 to +60°C
Thermal, short circuit, over voltage and open circuit protection
Dimensions: 156 x 42 x 32mm
