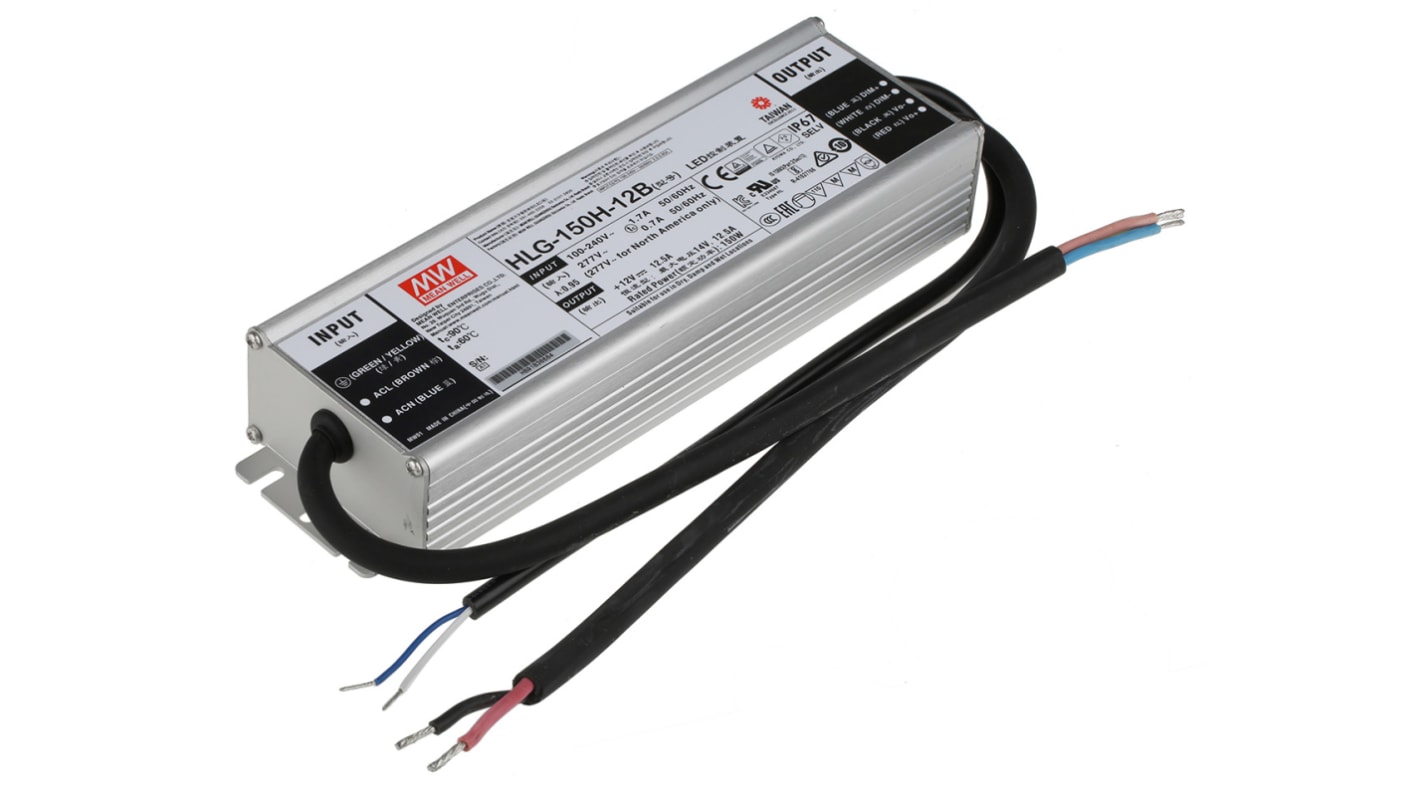

Mean Well Constant Voltage LED Driver 150W 12V

  • RS Stock No. 721-1904
  • Mfr. Part No. HLG-150H-12B
  • Warranty 5 Year
  • Brand Mean Well
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

RS - 150W Waterproof (IP67) PFC Dimmable SMPSU

External, switch mode, encapsulated IP67 rated power supplies
High efficiency, long life and high reliability
Suitable for dry, damp or wet locations indoor or outdoor
Suitable for LED lighting and moving sign applications
Compliance to worldwide safety regulations for lighting
Constant current level adjustable through output cable with 1-10Vdc or 10V PWM signal or resistor
Over current protection level can be set via the output cable
Short circuit, over load, over voltage and over temperature protection
300mm un-terminated, 3-core 18AWG input lead
300mm un-terminated, 2-core 14AWG output lead
300mm un-terminated, 2-core 18AWG dimming lead
EMC compliance to EN 55022 Class B
Power factor correction to EN 61000-3-2

Note

Power derates above 60°C.
MTBF to MIL-HDBK-217F.

Standards

UL8750, EN61347-1, EN61347-2-13, UL60950-1, TUV EN60950-1

Approvals

TUV, UL recognised for Canada & US

Specifications
Attribute Value
Input Voltage 90 → 264 V ac, 127 → 370 V dc
Output Voltage 12V
Operation Constant Voltage
Output Current 12.5A
Maximum Output Power 150W
Dimming Operation Potentiometer, 1 to 10 V
AC or DC Input Voltage Ac, Dc
IP Rating IP67
Number of Outputs 1
Voltage Rating 90 → 264 V ac, 127 → 370 V dc
141 In stock - FREE next working day delivery available
Price Each
£ 37.90
(exc. VAT)
£ 45.48
(inc. VAT)
Units
Per unit
1 - 4
£37.90
5 - 9
£34.12
10 - 24
£32.59
25 +
£31.46
