MEAN WELL LED Driver, 36V Output, 241.2W Output, 6.7A Output, Constant Voltage Dimmable
- RS Stock No.:
- 706-6697
- Mfr. Part No.:
- HLG-240H-36B
- Brand:
- MEAN WELL

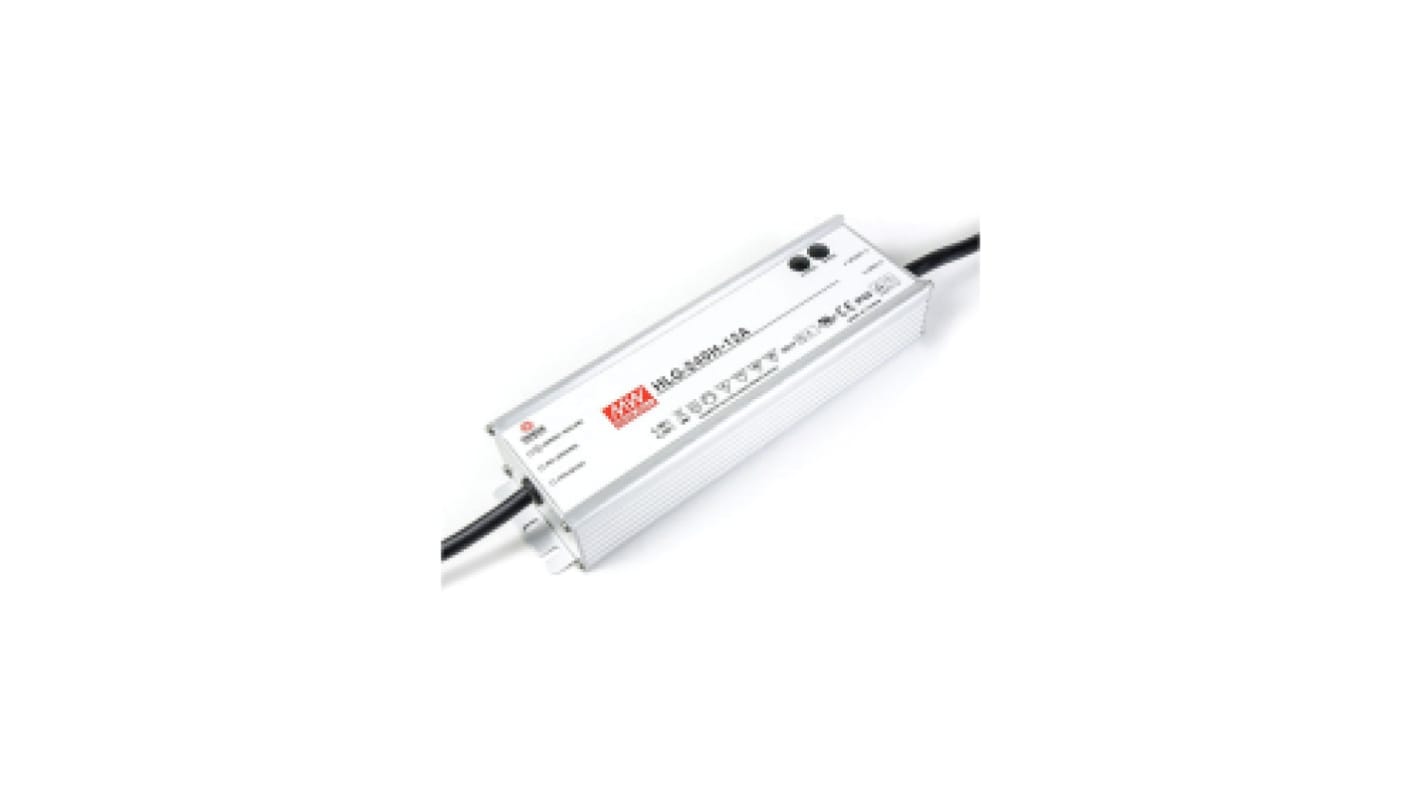

Image representative of range
Bulk discount available
Subtotal (1 unit)*
£72.22
(exc. VAT)
£86.66
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 11 unit(s) ready to ship
- Plus 24 unit(s) shipping from 21 November 2025
- Plus 24 unit(s) shipping from 06 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £72.22 |
5 - 9 | £64.99 |
10 - 24 | £62.09 |
25 + | £60.52 |
*price indicative
- RS Stock No.:
- 706-6697
- Mfr. Part No.:
- HLG-240H-36B
- Brand:
- MEAN WELL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | MEAN WELL | |
Output Voltage | 36V | |
Maximum Output Power | 241.2W | |
Output Current | 6.7A | |
Dimmable | Yes | |
Input Voltage | 127 → 373 V dc, 90 → 264 V ac | |
Operation | Constant Voltage | |
LED Driver Type | LED Driver | |
Dimming Operation | 1 to 10 V, Potentiometer | |
AC or DC Input Voltage | ac, dc | |
IP Rating | IP67 | |
Number of Outputs | 1 | |
Voltage Rating | 127 → 373 V dc, 90 → 264 V ac | |
Select all | ||
---|---|---|
Brand MEAN WELL | ||
Output Voltage 36V | ||
Maximum Output Power 241.2W | ||
Output Current 6.7A | ||
Dimmable Yes | ||
Input Voltage 127 → 373 V dc, 90 → 264 V ac | ||
Operation Constant Voltage | ||
LED Driver Type LED Driver | ||
Dimming Operation 1 to 10 V, Potentiometer | ||
AC or DC Input Voltage ac, dc | ||
IP Rating IP67 | ||
Number of Outputs 1 | ||
Voltage Rating 127 → 373 V dc, 90 → 264 V ac | ||
RS - 240W Waterproof (IP67) PFC SMPSU
External switch mode IP67 rated power supplies
High efficiency, long life and high reliability
Designed for indoor or outdoor installations
Suitable for LED lighting and moving sign applications
Fully regulated output
Short circuit, over-load, over-voltage and over-temperature protection
300mm un-terminated, 3-core 18AWG input lead
300mm un-terminated, 2-core 14AWG output leads and 2-core 18AWG current adjust
EMC compliance to EN 55022 Class B
Power factor correction to EN 61000-3-2
High efficiency, long life and high reliability
Designed for indoor or outdoor installations
Suitable for LED lighting and moving sign applications
Fully regulated output
Short circuit, over-load, over-voltage and over-temperature protection
300mm un-terminated, 3-core 18AWG input lead
300mm un-terminated, 2-core 14AWG output leads and 2-core 18AWG current adjust
EMC compliance to EN 55022 Class B
Power factor correction to EN 61000-3-2
Note
For Industrial Use Only, not in scope of Regulation (EC) No 125/2009.
Power derates above 60°C.
MTBF to MIL-HDBK-217F.
Power derates above 60°C.
MTBF to MIL-HDBK-217F.
Standards
UL1012 ; EN61347-1, EN61347-2-13 independent (except for HLG-240 C type) ; UL60950-1, TUV EN60950-1
