eldoLED LED Driver, 12 to 28 V Output, 224 W Output, 8 A DALI
- RS Stock No.:
- 233-1434
- Mfr. Part No.:
- LN200D-D2Z2C
- Brand:
- eldoLED
Bulk discount available
Subtotal (1 unit)*
£97.37
(exc. VAT)
£116.84
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 4 | £97.37 |
| 5 - 9 | £93.47 |
| 10 - 24 | £89.76 |
| 25 + | £86.17 |
*price indicative
- RS Stock No.:
- 233-1434
- Mfr. Part No.:
- LN200D-D2Z2C
- Brand:
- eldoLED
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | eldoLED | |
| Output Voltage | 12 to 28 V | |
| Product Type | LED Driver | |
| Maximum Output Power | 224W | |
| Input Voltage | 12/28 V | |
| Mount Type | Screw | |
| Sub Type | LED Driver | |
| Dimming Operation | DALI | |
| Input Voltage Type | DC | |
| Terminal Type | Push-in | |
| LED Voltage | 28 V | |
| Driver Current | 8 A | |
| Operating Modes | Constant Voltage | |
| Number of Outputs | 2 | |
| Standards/Approvals | CE, EN, ENEC, REACH, UL, RoHS | |
| Series | LN200D | |
| Configuration | Enclosed | |
| Primary Type | DC, AC | |
| Select all | ||
|---|---|---|
Brand eldoLED | ||
Output Voltage 12 to 28 V | ||
Product Type LED Driver | ||
Maximum Output Power 224W | ||
Input Voltage 12/28 V | ||
Mount Type Screw | ||
Sub Type LED Driver | ||
Dimming Operation DALI | ||
Input Voltage Type DC | ||
Terminal Type Push-in | ||
LED Voltage 28 V | ||
Driver Current 8 A | ||
Operating Modes Constant Voltage | ||
Number of Outputs 2 | ||
Standards/Approvals CE, EN, ENEC, REACH, UL, RoHS | ||
Series LN200D | ||
Configuration Enclosed | ||
Primary Type DC, AC | ||
- COO (Country of Origin):
- CN

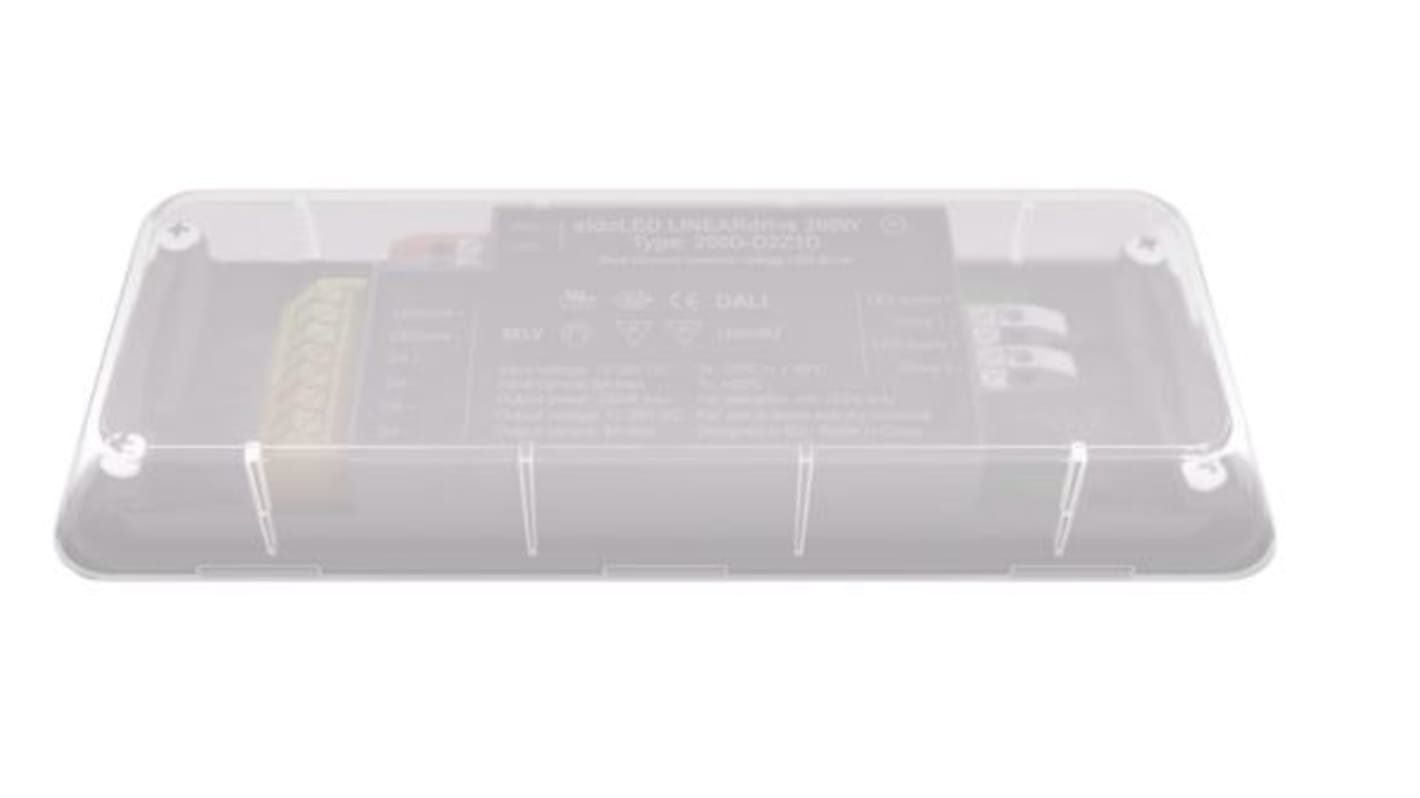

The eldoLED LINEARdrive is a constant voltage LED driver. It features two LED outputs that can be controlled separately via DALI DT8 Tc. Light Shape LED driver, LINEARdrive allows you to compose the exact shade of white at the right intensity level to complement materials in retail, support productivity in the office, or create the perfect atmosphere in a hospitality environment.
CE certification
provides the smoothest flicker-free high-performance dimming to zero for every fixture
