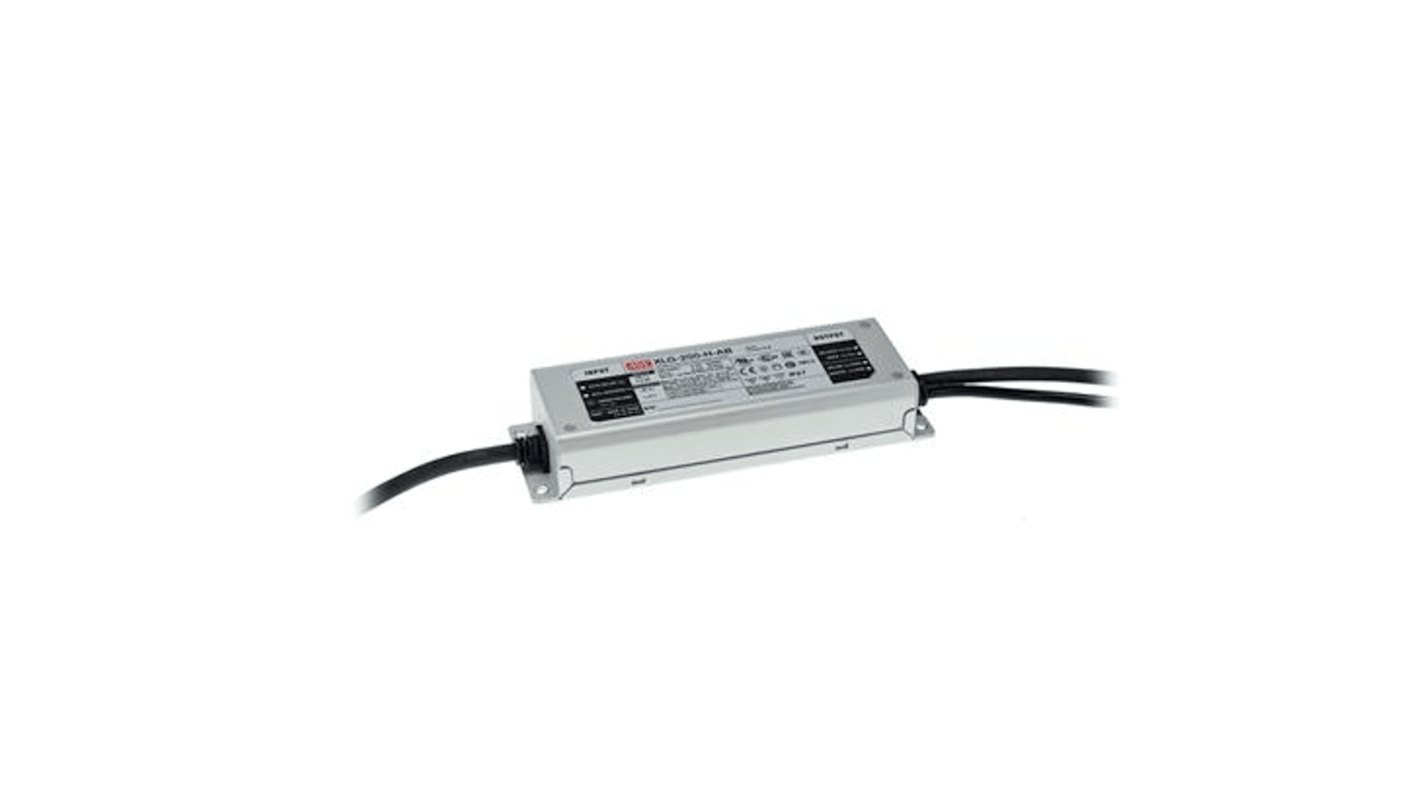

MEAN WELL LED Driver, 285 V Output, 200 W Output, 700 mA Potentiometer

View all LED Drivers
Bulk discount available

Subtotal (1 unit)*

£39.33

(exc. VAT)

£47.20

(inc. VAT)

Add to Basket
Select or type quantity
Orders below £50.00 (exc. VAT) cost £6.95.
Temporarily out of stock
  • 16 unit(s) shipping from 26 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£39.33
10 - 24£35.39
25 - 49£33.99
50 +£32.84

*price indicative

RS Stock No.:
216-3032
Distrelec Article No.:
302-30-158
Mfr. Part No.:
XLG-200-L-AB
Brand:
MEAN WELL
Find similar products by selecting one or more attributes.
Select all

Brand

MEAN WELL

Output Voltage

285 V

Product Type

LED Driver

Maximum Output Power

200W

Input Voltage

100/305 V

Mount Type

Screw

Sub Type

LED Driver

Dimming Operation

Potentiometer

Input Voltage Type

AC

Terminal Type

Wire

IP Rating

IP67

Driver Current

700 mA

Operating Modes

Constant Voltage, Constant Current

LED Voltage

100/305 V ac

Series

XLG-200

Standards/Approvals

CCC, SELV, CB, ENEC, CE, BIS, EAC, UL

Number of Outputs

5

Configuration

Enclosed

Primary Type

AC-DC

Power Dissipation

0.5W

COO (Country of Origin):
CN
The Mean Well XLG-200 series is a 200 W LED AC/DC driver featuring the constant power mode. XLG-200 operates from 100-305 VAC and offers models with different rated current ranging between 700mA and 16A. Thanks to the high efficiency up to 94%, with the fanless design , the entire series is able to operate for 40℃∼+ 90℃ case temperature under free air convection.

Metal case with IP67, suitable for outdoor applications

Protection functions: OVP/SCP/OCP/OTP
