Recom LED Driver, 18 → 36V dc Output, 25W Output, 700mA Output, Constant Current Dimmable
- RS Stock No.:
- 146-6702
- Mfr. Part No.:
- RACT25-700
- Brand:
- Recom
Bulk discount available
Subtotal (1 unit)*
£19.66
(exc. VAT)
£23.59
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 17 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £19.66 |
5 - 9 | £18.87 |
10 - 24 | £18.51 |
25 - 49 | £18.09 |
50 + | £17.71 |
*price indicative
- RS Stock No.:
- 146-6702
- Mfr. Part No.:
- RACT25-700
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Recom | |
Output Voltage | 18 → 36V dc | |
Maximum Output Power | 25W | |
Output Current | 700mA | |
Dimmable | Yes | |
Input Voltage | 198 → 264 V ac | |
Operation | Constant Current | |
LED Driver Type | LED Driver | |
Dimming Operation | Triac | |
AC or DC Input Voltage | ac | |
IP Rating | IP20 | |
Current Rating | 160mA | |
Number of Outputs | 1 | |
Series | RACT25 | |
Voltage Rating | 198 → 264V ac | |
Configuration | Enclosed | |
Power Dissipation | 1W | |
Primary Type | AC-DC | |
Standards Met | CE | |
Select all | ||
---|---|---|
Brand Recom | ||
Output Voltage 18 → 36V dc | ||
Maximum Output Power 25W | ||
Output Current 700mA | ||
Dimmable Yes | ||
Input Voltage 198 → 264 V ac | ||
Operation Constant Current | ||
LED Driver Type LED Driver | ||
Dimming Operation Triac | ||
AC or DC Input Voltage ac | ||
IP Rating IP20 | ||
Current Rating 160mA | ||
Number of Outputs 1 | ||
Series RACT25 | ||
Voltage Rating 198 → 264V ac | ||
Configuration Enclosed | ||
Power Dissipation 1W | ||
Primary Type AC-DC | ||
Standards Met CE | ||
- COO (Country of Origin):
- CN

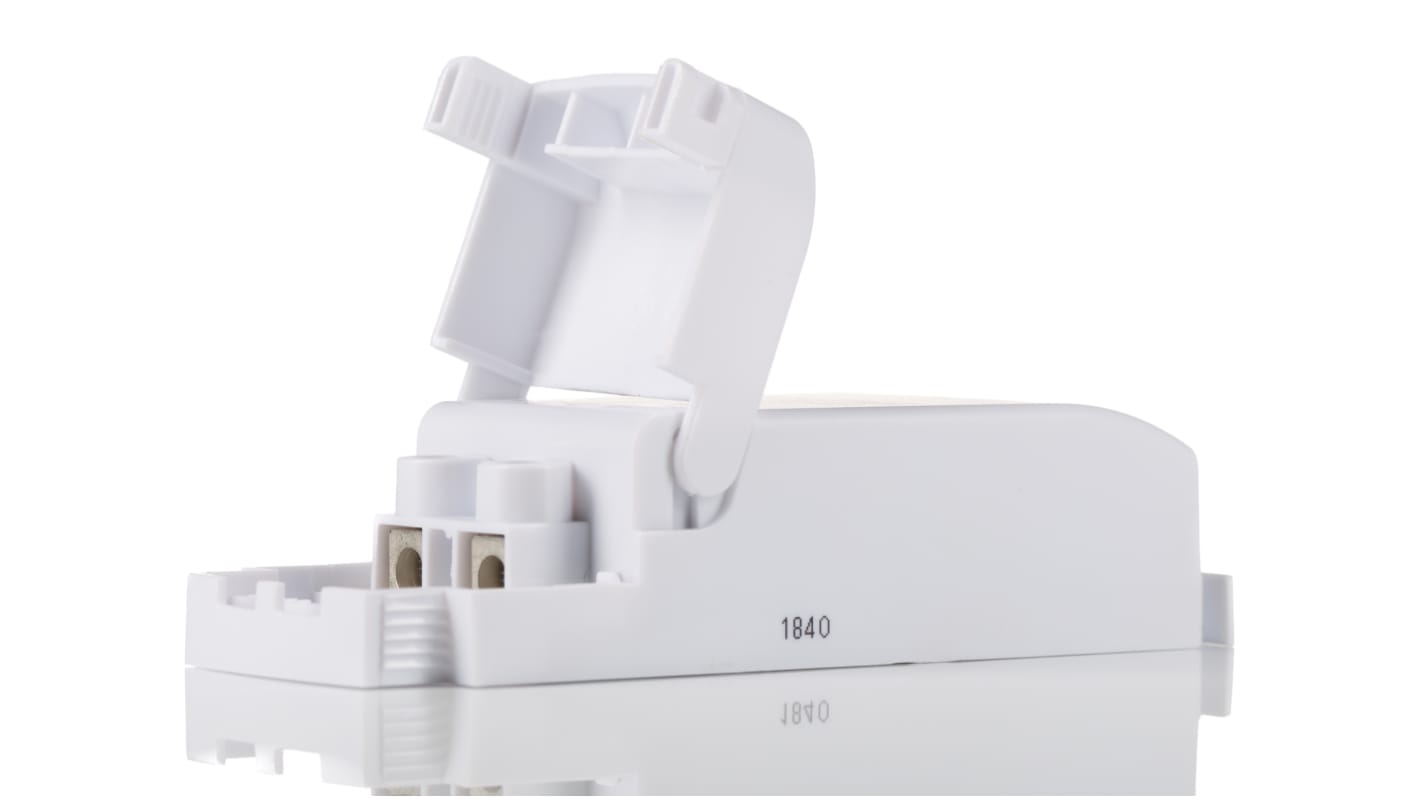

RECOM LED Driver, 50/60Hz Frequency, 1W No-Load Power Consumption - RACT25 - RACT25-700
Control lighting units in your workplace with this LED driver from RECOM. It has an isolation voltage of 3.75kV AC, so it safely prevents high voltages from getting to your array, ensuring it performs optimally in the long term. The unit's thermoplastic housing provides resistance to impacts and abrasion, making it suitable for use in harsh environments. The casing also serves as an insulator to protect you from electric shocks during operation. The driver is compatible with TRIAC dimmers, so you can adjust the brightness of the lighting units to suit your setup's needs.
Features & Benefits
• Output current of 700mA for use in low-current-consuming systems
• Maximum output power of 25W to supply low-energy lamps
• Works with AC and DC supply voltages for versatility
• 85% efficiency for increased productivity and minimal energy waste
• Integrated fusible resistor for short-circuit fault protection
• Maximum output power of 25W to supply low-energy lamps
• Works with AC and DC supply voltages for versatility
• 85% efficiency for increased productivity and minimal energy waste
• Integrated fusible resistor for short-circuit fault protection
Applications
• Interior decoration
• Retail fittings
• Medical equipment
• Retail fittings
• Medical equipment
Is this LED driver finger-safe?
Yes, the driver's IP20 rating indicates that it's protected from tools and objects larger than 12mm in size, including your fingers.
What precautions should I take while using this LED driver?
To ensure optimal performance and prevent damage to LED lamps, you mustn't use the driver without an electrical load.
