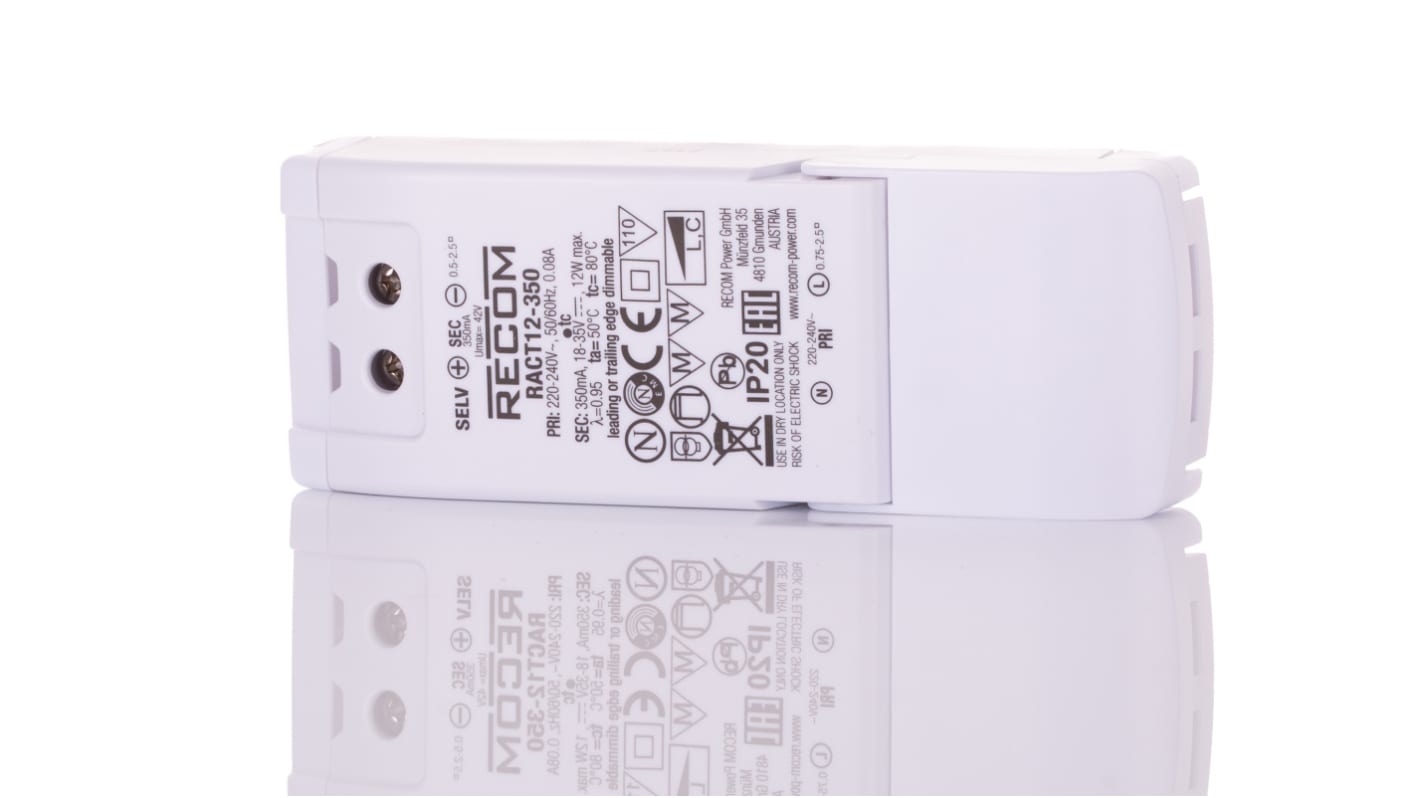

Recom RACT12-350, Constant Current Triac LED Driver 12W 18 → 35V 350mA, RACT12 Series

  • RS Stock No. 146-6692
  • Mfr. Part No. RACT12-350
  • Brand Recom
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

The RACT12-xxx series are low cost, triac-dimmable, constant current 12W LED drivers available with either 300mA, 350mA, 500mA or 700mA full-range outputs. The drivers are Class II (double insulated) meaning no earth connection is required. The phase angle dimming works with leading or trailing edge dimmers. The RACT12 is suitable for indoor locations up to 50°C ambient temperature and is certified for building into furniture for applications such as dimmable shelf lighting, cove lighting or accent lighting.

Triac-dimmable with leading or trailing edge dimmers
Class II with SELV output (no earth required)
Extra-large screw terminals and integrated cable clamps for easy installation
Power factor corrected >0.95
Dimming range 1..100%
Compatible with a wide range of dimmers

Specifications
Attribute Value
Input Voltage 198 → 264 V ac
Output Voltage 18 → 35V
Operation Constant Current
Output Current 350mA
Maximum Output Power 12W
Dimming Operation Triac
AC or DC Input Voltage Ac
IP Rating IP20
Current Rating 80mA
Number of Outputs 2
Output 18 → 35 V dc @ 350 mA
Series RACT12
Voltage Rating 198 → 264V ac
Power Dissipation 1W
Primary Type AC-DC
18 In stock for FREE next working day delivery
Price Each
£ 9.30
(exc. VAT)
£ 11.16
(inc. VAT)
Units
Per unit
1 - 4
£9.30
5 - 9
£8.93
10 - 24
£8.75
25 - 49
£8.56
50 +
£8.37
