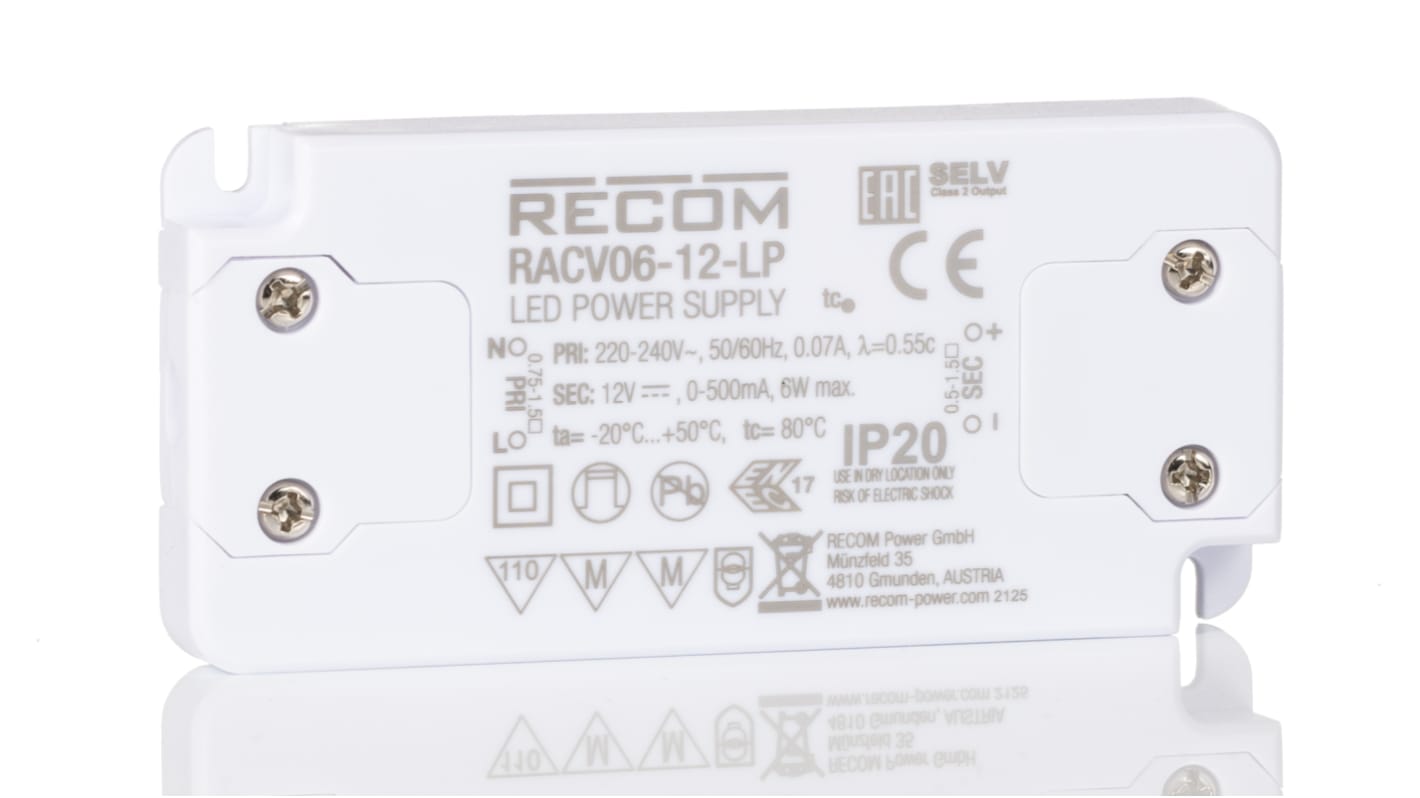

Recom LED Driver, 12V dc Output, 6W Output, 500mA Output, Constant Voltage

RS Stock No.:: 131-4717
Mfr. Part No.:: RACV06-12-LP
Brand:: Recom

Recom LED Driver, 12V dc Output, 6W Output, 500mA Output, Constant Voltage

34 In stock - FREE next working day delivery available

9 available from Europe for delivery within 2 working day(s).

Price Each

£8.86

(exc. VAT)

£10.63

(inc. VAT)

Units	Per unit
1 - 4	£8.86
5 - 9	£8.48
10 - 24	£8.33
25 - 49	£8.14
50 +	£7.98

RS Stock No.:: 131-4717
Mfr. Part No.:: RACV06-12-LP
Brand:: Recom

Technical Reference

Legislation and Compliance

COO (Country of Origin):: TW

Product Details

6W Constant Voltage LED Driver, RACV06-LP Series

Low Profile case (11 mm height max.)
12 V and 24 V Constant Voltage Output
Fully Protected for Short Circuit, Open Circuit, Over Load, Over Voltage and Over Temperature
Low Standby Power, ErP conform
Screw Terminal Block Input/Output with Cable Clamps

RECOM LED Driver, IP20 Rating, Enclosed Configuration - RACV06-LP series - RACV06-12-LP

Feel in the dark about reliable LED power supplies? There's light at the end of the tunnel with this LED driver from RECOM. It handles input voltages between 198 and 264V AC and outputs the steady 12V DC needed by sensitive arrays. This device delivers a constant 6W of power to keep flickering at bay. As hazard protection is built-in, this assembly keeps short circuits and overloads in the shadows. Screw terminal blocks make installation speedy, without the need for specialist tools.

Features & Benefits

• 30,000 hours of operational life for prolonged performance
• Functions in a relative humidity range between 5% and 85%, suiting use in damp environments
• 77% typical efficiency reduces energy wastage and supports cool running
• IP20 rating means protection from wires and tools bigger than 12.5mm
• Compact dimensions of 98 (L) x 46 (W) x 11mm (H) for use in small spaces

Applications

• Test and instrumentation devices
• Factory lighting solutions
• Medical equipment

Can I use this device in harsh conditions?

Yes, as this unit operates in a broad temperature range between -20°C and +50°C, it handles the demands of harsh settings.

Recom LED Drivers

Specifications

Attribute	Value
Output Voltage	12V dc
Maximum Output Power	6W
Output Current	500mA
Dimmable	No
Input Voltage	198 → 264 V ac
Operation	Constant Voltage
LED Driver Type	LED Driver
AC or DC Input Voltage	ac
IP Rating	IP20
Current Rating	0 → 500mA
Voltage Rating	264V ac
Number of Outputs	1
Series	RACV06-LP
Configuration	Enclosed
Primary Type	AC-DC
Standards Met	CB, CE, EN 55015, EN 61000-3-2 Class C, EN 61000-3-3, EN 61000-4-11 Criteria B, EN 61000-4-11 Criteria C, EN 61000-4-2 Criteria B, EN 61000-4-3 Criteria A, EN 61000-4-4 Criteria B, EN 61000-4-5 Criteria C, EN 61000-4-6 Criteria A, EN 61347-1, EN 61347-2-13, EN 61493, EN 61547, ENEC, ERP Compliant, IEC 61347-1, IEC 61347-2-13, IEC/EN 62384
