MEAN WELL LED Driver, 36V Output, 100W Output, 3A Output, Constant Current / Constant Voltage Dimmable
- RS Stock No.:
- 103-4337
- Mfr. Part No.:
- ELG-100-36B
- Brand:
- MEAN WELL
22 In stock - FREE next working day delivery available
Added
Price Each
£42.81
(exc. VAT)
£51.37
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £42.81 |
| 5 - 9 | £41.69 |
| 10 - 24 | £40.62 |
| 25 + | £39.60 |
- RS Stock No.:
- 103-4337
- Mfr. Part No.:
- ELG-100-36B
- Brand:
- MEAN WELL
Technical Reference
Legislation and Compliance
Product Details

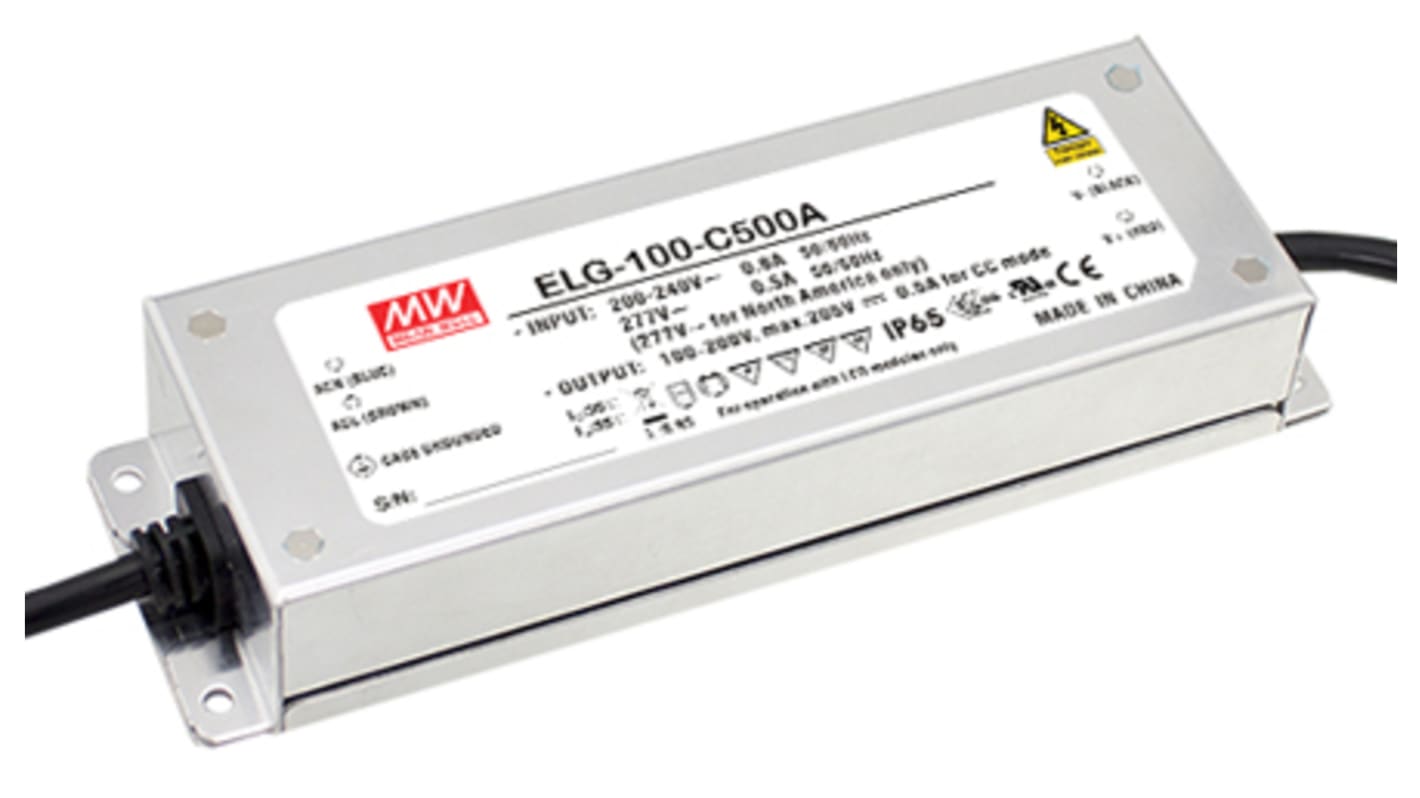

Mean Well ELG-100 Series LED Driver
Mean Well ELG-100 series of constant current 100 W dimmable LED Driver, which also supports a high-voltage constant output. Thanks to a fan-less design, the ELG-100 series provides an efficiency rating of up to 91%. Constructed in a robust full metal housing to ensure suitability with a wide variety of applications.
Features and Benefits
•Fan-less design provides high efficiency rating.
•Wide operating temperature range.
•Rated to IP 65/67 depending on the option selected.
•Designed to provide the optimal flexibility for LED applications.
•Both Potentiometer and PWM signal dimming options available.
•Class 2 power unit.
•Built-in active PFC function.
•Wide operating temperature range.
•Rated to IP 65/67 depending on the option selected.
•Designed to provide the optimal flexibility for LED applications.
•Both Potentiometer and PWM signal dimming options available.
•Class 2 power unit.
•Built-in active PFC function.
Typical applications include LED street lighting, architectural lighting, bay lighting & floodlighting.
Mean Well LED Drivers / Power Supplies - IP Rated
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 36V |
| Maximum Output Power | 100W |
| Output Current | 3A |
| Dimmable | Yes |
| Input Voltage | 180 → 305 V ac, 254 → 431 V dc |
| Operation | Constant Current / Constant Voltage |
| LED Driver Type | LED Driver |
| AC or DC Input Voltage | ac, dc |
| IP Rating | IP67 |
| Output | 36 V dc @ 2.66 A |
| Current Rating | 600mA |
| Voltage Rating | 180 → 305 V ac, 254 → 431 V dc |
| Number of Outputs | 1 |
| Series | ELG-100 |
| Configuration | Encapsulated |
| Primary Type | AC-DC, DC-DC |
| Standards Met | CB, CE:CCC, cULus Recognized, EN61347-1, EN61347-2-13, EN62384, ENEC, PFC, UL8750 |
