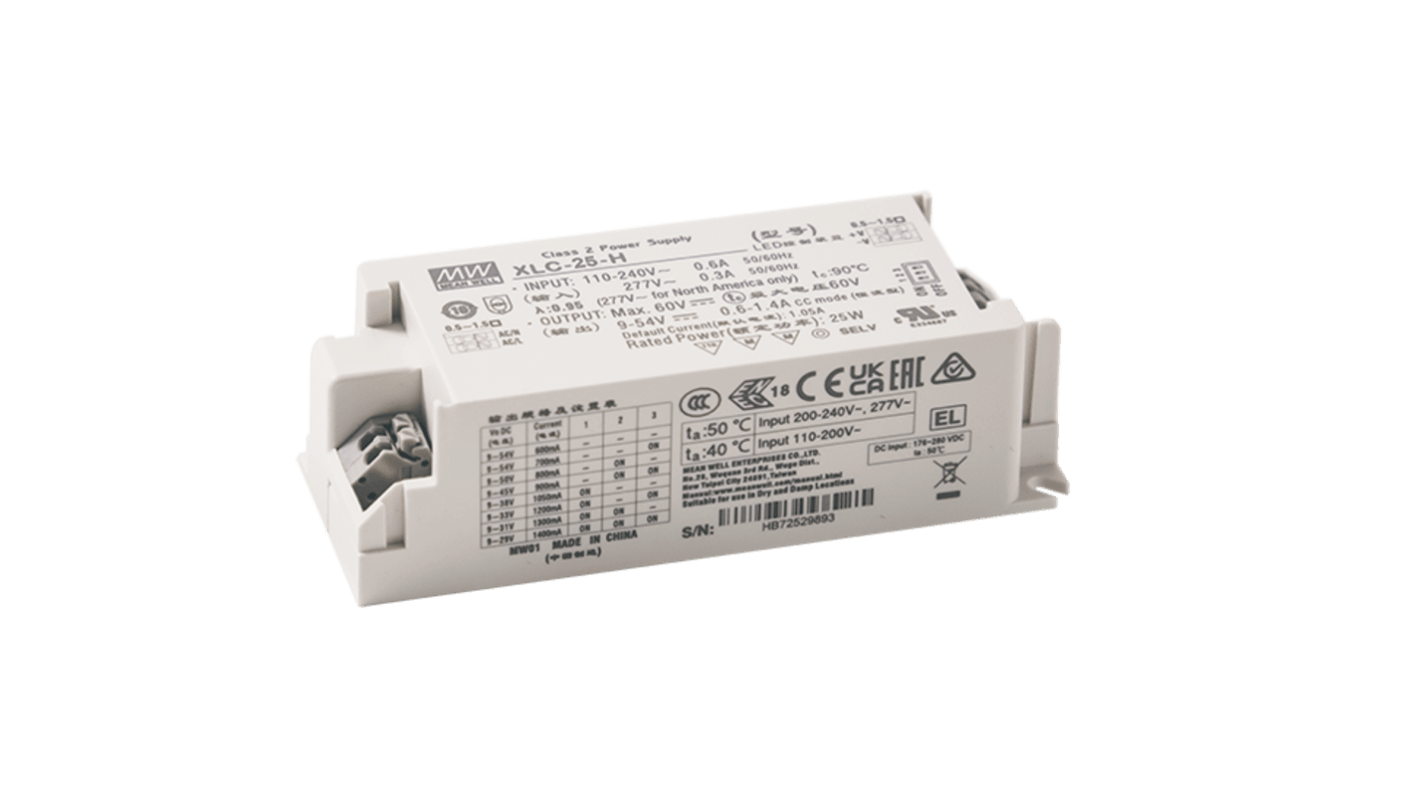

MEAN WELL LED Driver Power Supply, 60V Output, 25W Output, 1.05A Output, Constant Power Dimmable
- RS Stock No.:
- 314-322
- Mfr. Part No.:
- XLC-25-H-BN
- Brand:
- MEAN WELL
Subtotal (1 unit)*
£15.53
(exc. VAT)
£18.64
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 14 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £15.53 |
*price indicative
- RS Stock No.:
- 314-322
- Mfr. Part No.:
- XLC-25-H-BN
- Brand:
- MEAN WELL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | MEAN WELL | |
Output Voltage | 60V | |
Maximum Output Power | 25W | |
Output Current | 1.05A | |
Dimmable | Yes | |
Input Voltage | 110 → 305 V | |
Operation | Constant Power | |
LED Driver Type | LED Driver Power Supply | |
Select all | ||
---|---|---|
Brand MEAN WELL | ||
Output Voltage 60V | ||
Maximum Output Power 25W | ||
Output Current 1.05A | ||
Dimmable Yes | ||
Input Voltage 110 → 305 V | ||
Operation Constant Power | ||
LED Driver Type LED Driver Power Supply | ||
- COO (Country of Origin):
- CN
The MEANWELL LED Driver is a 25W LED driver with constant power and constant voltage output. It can operate from 100V to 305V AC, with an output current range between 300mA to 1050mA, which is selectable by a DIP switch or NFC setting. This LED Driver is designed in accordance with the latest safety regulations, featuring three in one dimming and DALI-2 dimming. Additionally, the brightness can be adjusted with a simple push button, providing flexibility for LED lighting applications.
Plastic housing with Class II and PFC design
Meets UL 8750 Class 2 and Class P power unit
Flicker free and complying with CE ERP directive
Standby power consumption less than 0.5W
Meets emergency lighting application requirements
Meets UL 8750 Class 2 and Class P power unit
Flicker free and complying with CE ERP directive
Standby power consumption less than 0.5W
Meets emergency lighting application requirements
