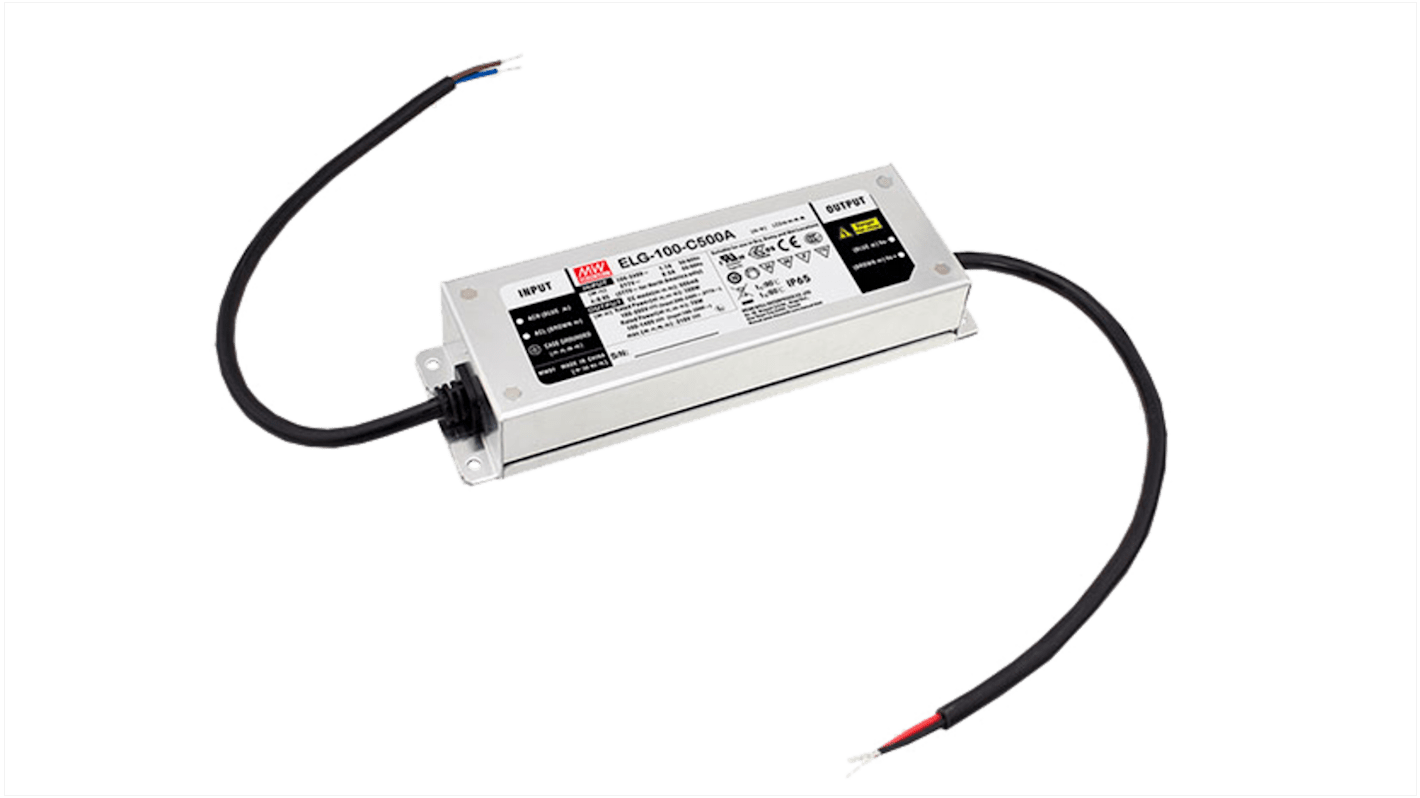

MEAN WELL IP67, IP65 LED Driver, 72V, 100 W 0 to 10 V dc, 10V PWM or Resistance
- RS Stock No.:
- 106-614
- Distrelec Article No.:
- 301-34-571
- Mfr. Part No.:
- ELG-100-C1400
- Brand:
- MEAN WELL
Subtotal (1 unit)*
£27.47
(exc. VAT)
£32.96
(inc. VAT)
FREE delivery for orders over £60.00
- 1 unit(s) shipping from 30 November 2026
- Plus 1 unit(s) shipping from 14 December 2026
Units | Per unit |
|---|---|
| 1 + | £27.47 |
*price indicative
- RS Stock No.:
- 106-614
- Distrelec Article No.:
- 301-34-571
- Mfr. Part No.:
- ELG-100-C1400
- Brand:
- MEAN WELL
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Product Type | LED Driver | |
| Output Voltage | 72V | |
| Maximum Output Power | 100W | |
| Input Voltage | 100, 305V | |
| Dimming Operation | 0 to 10 V dc, 10V PWM or Resistance | |
| Terminal Type | Ac/N | |
| Input Voltage Type | AC/DC | |
| IP Rating | IP67, IP65 | |
| Operating Modes | Constant Current | |
| Series | ELG-100-C | |
| Standards/Approvals | 3, 102, 1050A only), 11, (207 by request), 4, 5, 6, 8, BIS IS15885(for 700A, BS EN/EN55015, BS EN/EN61000-3-2 Class C, BS EN/EN61000-3-3, BS EN/EN61000-4-2, BS EN/EN61547, BS EN/EN62384, BS EN/ES/NZS 61347-1, BS EN/ES/NZS 61347-2-13, CSA C22.2 No. 250.13-12, EAC TP TC 004, EAC TP TC 020, Gb17743, GB19510.1 GB19510.14, IEC62386-101, IP65 or KC61347-1, IS 15885(Part 2/Sec13), KC61347-2-13, KC KN15, KN61547 GB17625.1, UL8750(typeHL) | |
| Power Dissipation | 0.5W | |
| Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Product Type LED Driver | ||
Output Voltage 72V | ||
Maximum Output Power 100W | ||
Input Voltage 100, 305V | ||
Dimming Operation 0 to 10 V dc, 10V PWM or Resistance | ||
Terminal Type Ac/N | ||
Input Voltage Type AC/DC | ||
IP Rating IP67, IP65 | ||
Operating Modes Constant Current | ||
Series ELG-100-C | ||
Standards/Approvals 3, 102, 1050A only), 11, (207 by request), 4, 5, 6, 8, BIS IS15885(for 700A, BS EN/EN55015, BS EN/EN61000-3-2 Class C, BS EN/EN61000-3-3, BS EN/EN61000-4-2, BS EN/EN61547, BS EN/EN62384, BS EN/ES/NZS 61347-1, BS EN/ES/NZS 61347-2-13, CSA C22.2 No. 250.13-12, EAC TP TC 004, EAC TP TC 020, Gb17743, GB19510.1 GB19510.14, IEC62386-101, IP65 or KC61347-1, IS 15885(Part 2/Sec13), KC61347-2-13, KC KN15, KN61547 GB17625.1, UL8750(typeHL) | ||
Power Dissipation 0.5W | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
