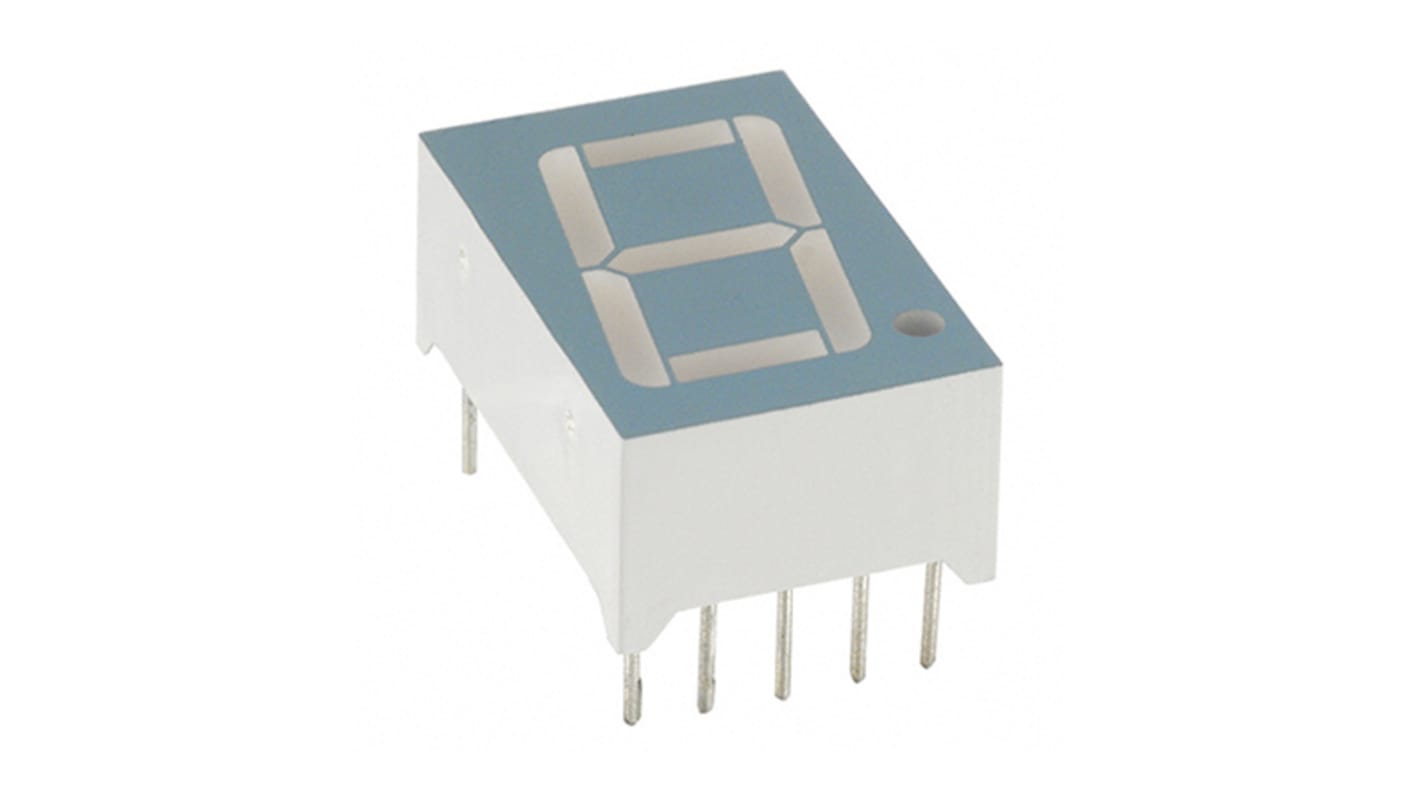

LDS-C514RI Lumex 7-Segment LED Display, CC Red 3900 mcd RH DP 14.2mm
- RS Stock No.:
- 888-5862
- Mfr. Part No.:
- LDS-C514RI
- Brand:
- Lumex
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 888-5862
- Mfr. Part No.:
- LDS-C514RI
- Brand:
- Lumex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lumex | |
| Display Type | 7-Segment | |
| Number of Characters | 1 | |
| LED Colours | Red | |
| Number of Segments | 7 | |
| Dominant Wavelength | 635 nm | |
| Character Width | 8.1mm | |
| Character Height | 14.2mm | |
| Common Connection | Cathode | |
| Mounting Type | Through Hole | |
| External Width | 12.5mm | |
| External Dimensions | 19.05 x 12.5 x 6.8mm | |
| External Depth | 6.8mm | |
| External Height | 19.1mm | |
| Luminous Intensity | 3900 mcd | |
| Colour of Face | Grey | |
| Forward Voltage | 2.8 V | |
| Power Dissipation | 105mW | |
| Minimum Operating Temperature | -40°C | |
| Operating Temperature Range | -40 → +85°C | |
| Forward Current | 20mA | |
| Maximum Operating Temperature | 85°C | |
| Decimal Orientation | Right Side | |
Select all | ||
|---|---|---|
Brand Lumex | ||
Display Type 7-Segment | ||
Number of Characters 1 | ||
LED Colours Red | ||
Number of Segments 7 | ||
Dominant Wavelength 635 nm | ||
Character Width 8.1mm | ||
Character Height 14.2mm | ||
Common Connection Cathode | ||
Mounting Type Through Hole | ||
External Width 12.5mm | ||
External Dimensions 19.05 x 12.5 x 6.8mm | ||
External Depth 6.8mm | ||
External Height 19.1mm | ||
Luminous Intensity 3900 mcd | ||
Colour of Face Grey | ||
Forward Voltage 2.8 V | ||
Power Dissipation 105mW | ||
Minimum Operating Temperature -40°C | ||
Operating Temperature Range -40 → +85°C | ||
Forward Current 20mA | ||
Maximum Operating Temperature 85°C | ||
Decimal Orientation Right Side | ||
- COO (Country of Origin):
- CN
Lumex LDS 7-Segment LED Displays
These InfoVue™ LED displays utilise Lumex’s QuasarBrite™ technology providing a bright, crisp display with a high temperature range of up to +105 °C. These SMD seven-segment LED displays are compatible with standard drivers and are ideally suited to a wide range of applications that require extreme heat conditions. They are available in 0.3 and 0.56" sizes, up to four digit layout, red or green and common anode or common cathode formats.
Potential applications standard and commercial appliances such as fryers, ovens, microwaves and dishwashers. Medical devices such as displays on portable and non-portable patient monitoring displays which could include defibrillators, heart and pulse monitors and sphygmomanometers. Industrial control devices including oil and gas flow metering and drive control displays. Military applications could include aircraft, ground vehicles, GPS and portable communication systems. Telecom equipment applications could also include displays on storage units, networks, switchboard units and routers.
Potential applications standard and commercial appliances such as fryers, ovens, microwaves and dishwashers. Medical devices such as displays on portable and non-portable patient monitoring displays which could include defibrillators, heart and pulse monitors and sphygmomanometers. Industrial control devices including oil and gas flow metering and drive control displays. Military applications could include aircraft, ground vehicles, GPS and portable communication systems. Telecom equipment applications could also include displays on storage units, networks, switchboard units and routers.
Number of digits: 1
Operating temperature range: -40 to +85 °C
Operating temperature range: -40 to +85 °C
