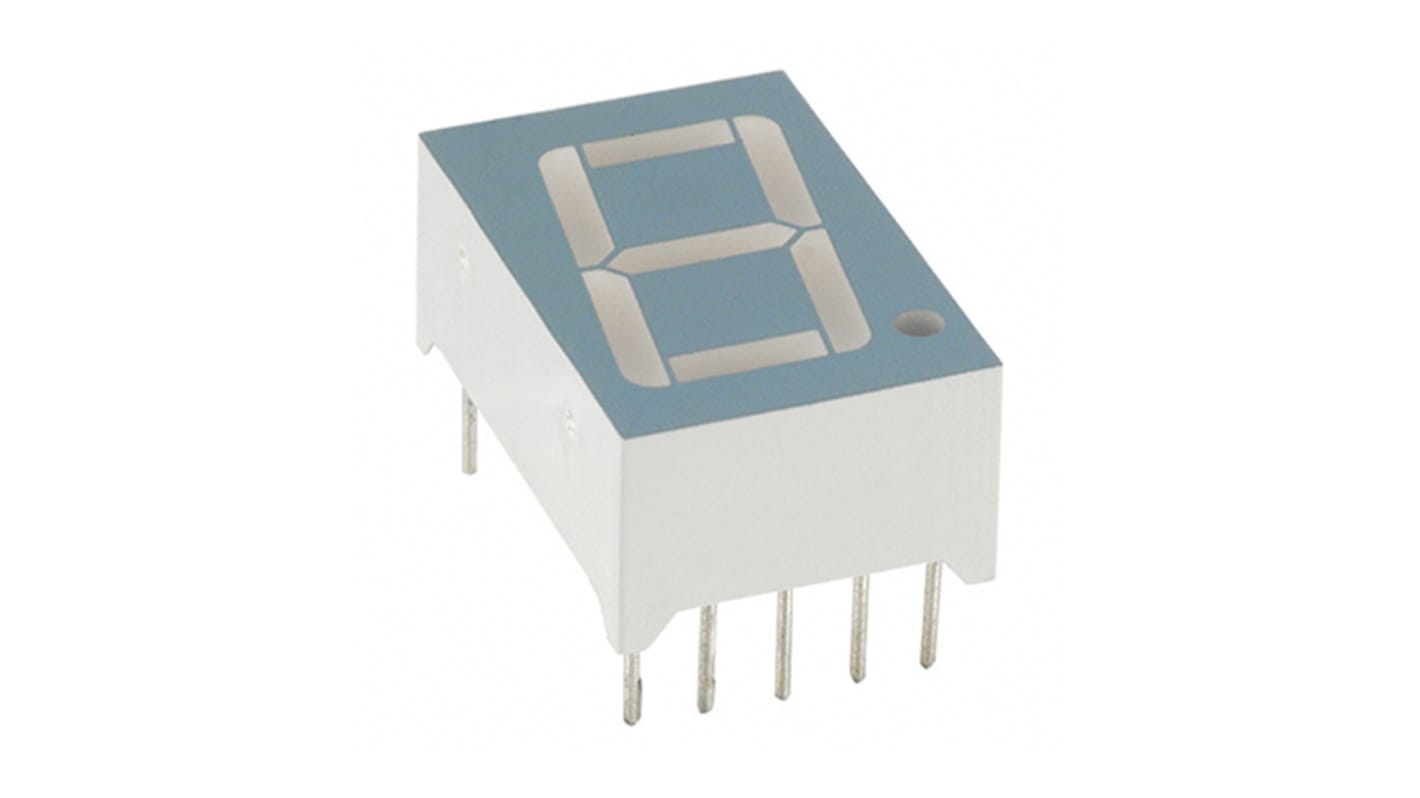

LDS-A516RI Lumex 7-Segment LED Display, CA Red 12000 μcd RH DP 14.2mm
- RS Stock No.:
- 888-5840
- Mfr. Part No.:
- LDS-A516RI
- Brand:
- Lumex
Discontinued
- RS Stock No.:
- 888-5840
- Mfr. Part No.:
- LDS-A516RI
- Brand:
- Lumex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lumex | |
| Display Type | 7-Segment | |
| Number of Characters | 1 | |
| LED Colours | Red | |
| Number of Segments | 7 | |
| Dominant Wavelength | 660 nm | |
| Character Height | 14.2mm | |
| Common Connection | Anode | |
| Mounting Type | Through Hole | |
| External Depth | 8mm | |
| External Height | 19mm | |
| External Dimensions | 19 x 12.6 x 8mm | |
| External Width | 12.6mm | |
| Luminous Intensity | 12000 μcd | |
| Colour of Face | Grey | |
| Forward Voltage | 2.3 V | |
| Power Dissipation | 100mW | |
| Minimum Operating Temperature | -40°C | |
| Decimal Orientation | Right Side | |
| Operating Temperature Range | -40 → +85°C | |
| Maximum Operating Temperature | +85°C | |
| Forward Current | 10mA | |
| Select all | ||
|---|---|---|
Brand Lumex | ||
Display Type 7-Segment | ||
Number of Characters 1 | ||
LED Colours Red | ||
Number of Segments 7 | ||
Dominant Wavelength 660 nm | ||
Character Height 14.2mm | ||
Common Connection Anode | ||
Mounting Type Through Hole | ||
External Depth 8mm | ||
External Height 19mm | ||
External Dimensions 19 x 12.6 x 8mm | ||
External Width 12.6mm | ||
Luminous Intensity 12000 μcd | ||
Colour of Face Grey | ||
Forward Voltage 2.3 V | ||
Power Dissipation 100mW | ||
Minimum Operating Temperature -40°C | ||
Decimal Orientation Right Side | ||
Operating Temperature Range -40 → +85°C | ||
Maximum Operating Temperature +85°C | ||
Forward Current 10mA | ||
- COO (Country of Origin):
- CN
Lumex LDS 7-Segment LED Displays
These InfoVue™ LED displays utilise Lumex’s QuasarBrite™ technology providing a bright, crisp display with a high temperature range of up to +105 °C. These SMD seven-segment LED displays are compatible with standard drivers and are ideally suited to a wide range of applications that require extreme heat conditions. They are available in 0.3 and 0.56" sizes, up to four digit layout, red or green and common anode or common cathode formats.
Potential applications standard and commercial appliances such as fryers, ovens, microwaves and dishwashers. Medical devices such as displays on portable and non-portable patient monitoring displays which could include defibrillators, heart and pulse monitors and sphygmomanometers. Industrial control devices including oil and gas flow metering and drive control displays. Military applications could include aircraft, ground vehicles, GPS and portable communication systems. Telecom equipment applications could also include displays on storage units, networks, switchboard units and routers.
Potential applications standard and commercial appliances such as fryers, ovens, microwaves and dishwashers. Medical devices such as displays on portable and non-portable patient monitoring displays which could include defibrillators, heart and pulse monitors and sphygmomanometers. Industrial control devices including oil and gas flow metering and drive control displays. Military applications could include aircraft, ground vehicles, GPS and portable communication systems. Telecom equipment applications could also include displays on storage units, networks, switchboard units and routers.
Number of digits: 1
Operating temperature range: -40 to +85 °C
Operating temperature range: -40 to +85 °C
