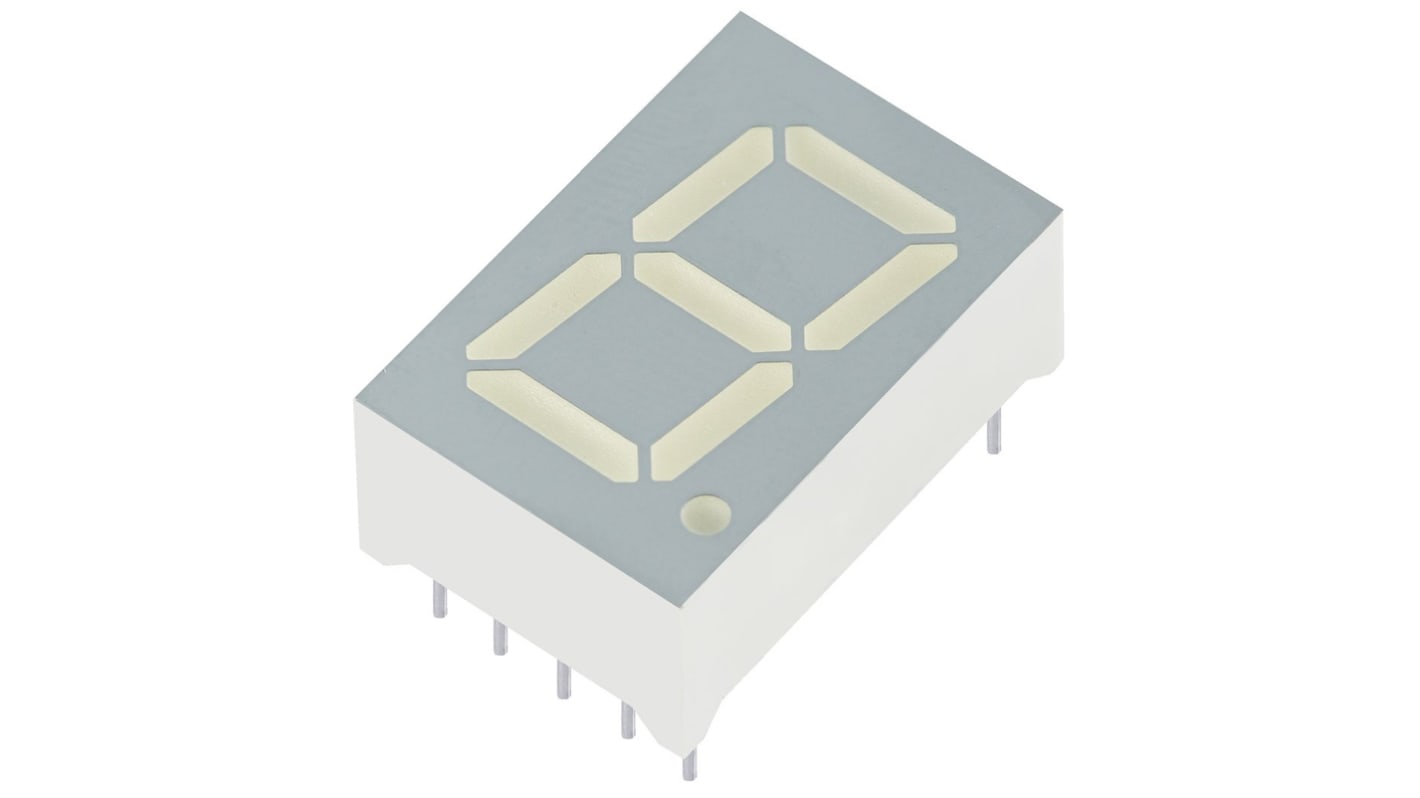

SA56-21CGKWA Kingbright 7-Segment LED Display, CA Green 35 mcd RH DP 14.2mm
- RS Stock No.:
- 877-0974
- Mfr. Part No.:
- SA56-21CGKWA
- Brand:
- Kingbright
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 877-0974
- Mfr. Part No.:
- SA56-21CGKWA
- Brand:
- Kingbright
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Kingbright | |
| Display Type | 7-Segment | |
| Number of Characters | 1 | |
| LED Colours | Green | |
| Number of Segments | 7 | |
| Dominant Wavelength | 570 nm | |
| Character Width | 8mm | |
| Character Height | 14.2mm | |
| Common Connection | Anode | |
| Mounting Type | Through Hole | |
| External Width | 12.7mm | |
| External Dimensions | 12.7 x 19.05 x 8mm | |
| External Depth | 19.1mm | |
| External Height | 8mm | |
| Luminous Intensity | 35 mcd | |
| Colour of Face | Grey | |
| Forward Voltage | 2.1 V | |
| Power Dissipation | 75mW | |
| Operating Temperature Range | -40 → +85°C | |
| Series | SA56 | |
| Decimal Orientation | Right Side | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +85°C | |
| Forward Current | 30mA | |
