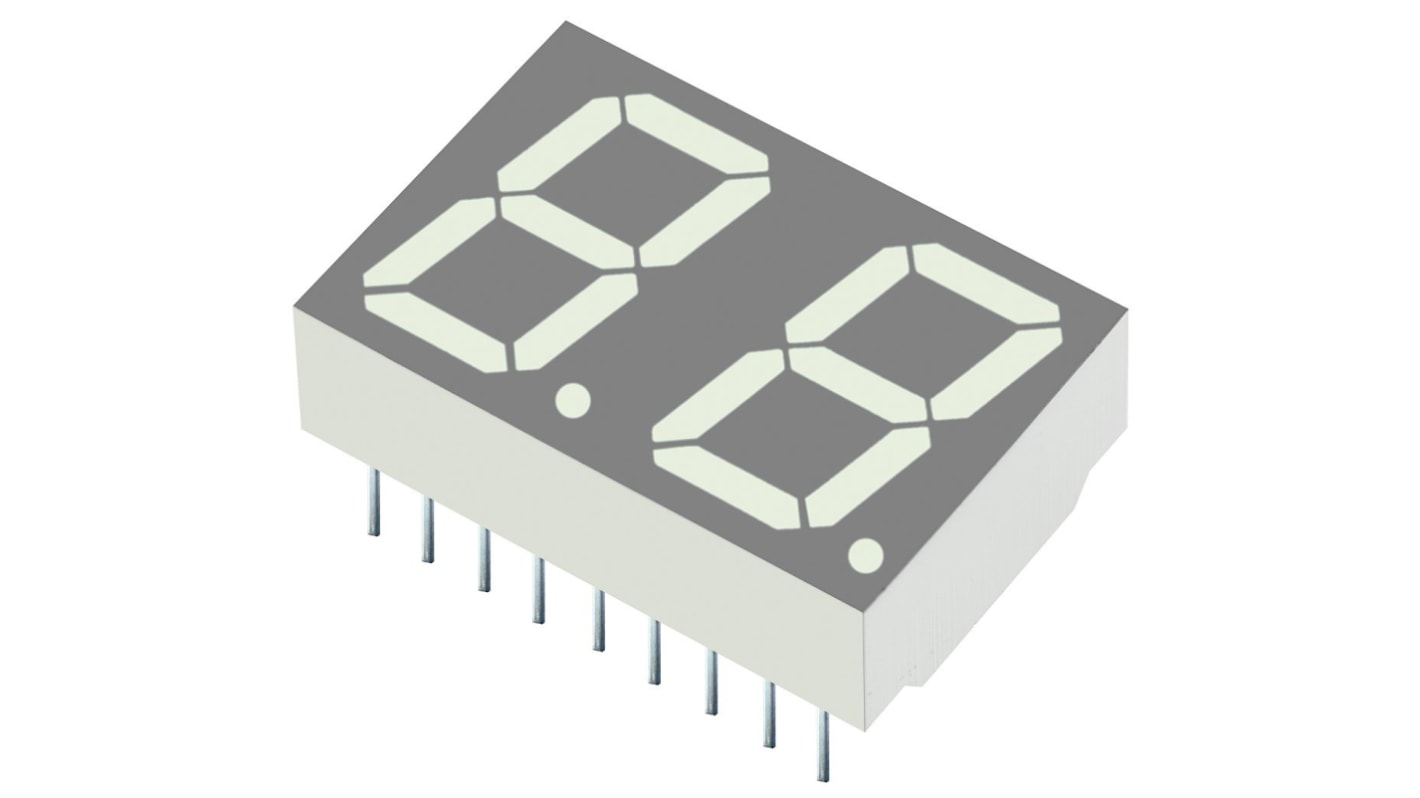

DA56-51CGKWA Kingbright 2 Digit 7-Segment LED Display, CA Green 23 mcd RH DP 14.2mm
- RS Stock No.:
- 877-0883
- Mfr. Part No.:
- DA56-51CGKWA
- Brand:
- Kingbright
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 877-0883
- Mfr. Part No.:
- DA56-51CGKWA
- Brand:
- Kingbright
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Kingbright | |
Display Type | 7-Segment | |
Number of Characters | 2 | |
LED Colours | Green | |
Number of Segments | 7 | |
Dominant Wavelength | 570 nm | |
Character Width | 7.8mm | |
Character Height | 14.2mm | |
Common Connection | Anode | |
Mounting Type | Through Hole | |
External Dimensions | 25 x 17.02 x 8mm | |
External Height | 8mm | |
External Width | 25mm | |
External Depth | 17mm | |
Luminous Intensity | 23 mcd | |
Colour of Face | Grey | |
Forward Voltage | 2.1 V | |
Power Dissipation | 75mW | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +85°C | |
Decimal Orientation | Right Side | |
Forward Current | 30mA | |
Operating Temperature Range | -40 → +85°C | |
Series | DA56 | |
Select all | ||
---|---|---|
Brand Kingbright | ||
Display Type 7-Segment | ||
Number of Characters 2 | ||
LED Colours Green | ||
Number of Segments 7 | ||
Dominant Wavelength 570 nm | ||
Character Width 7.8mm | ||
Character Height 14.2mm | ||
Common Connection Anode | ||
Mounting Type Through Hole | ||
External Dimensions 25 x 17.02 x 8mm | ||
External Height 8mm | ||
External Width 25mm | ||
External Depth 17mm | ||
Luminous Intensity 23 mcd | ||
Colour of Face Grey | ||
Forward Voltage 2.1 V | ||
Power Dissipation 75mW | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Decimal Orientation Right Side | ||
Forward Current 30mA | ||
Operating Temperature Range -40 → +85°C | ||
Series DA56 | ||
- COO (Country of Origin):
- CN
Kingbright Dual Digit, 10.0 to 20.3mm
A range of dual-digit 7-segment LED displays from Kingbright. The displays exhibit excellent visibility with high on/off contrast, and are available in a range of colours.
Low current operation
Excellent character appearance
Grey face with white segments
Easy mounting on P.C. boards or sockets
Categorized for luminous intensity
Mechanically rugged
RoHS compliant
Excellent character appearance
Grey face with white segments
Easy mounting on P.C. boards or sockets
Categorized for luminous intensity
Mechanically rugged
RoHS compliant
7-Segment LED Displays
