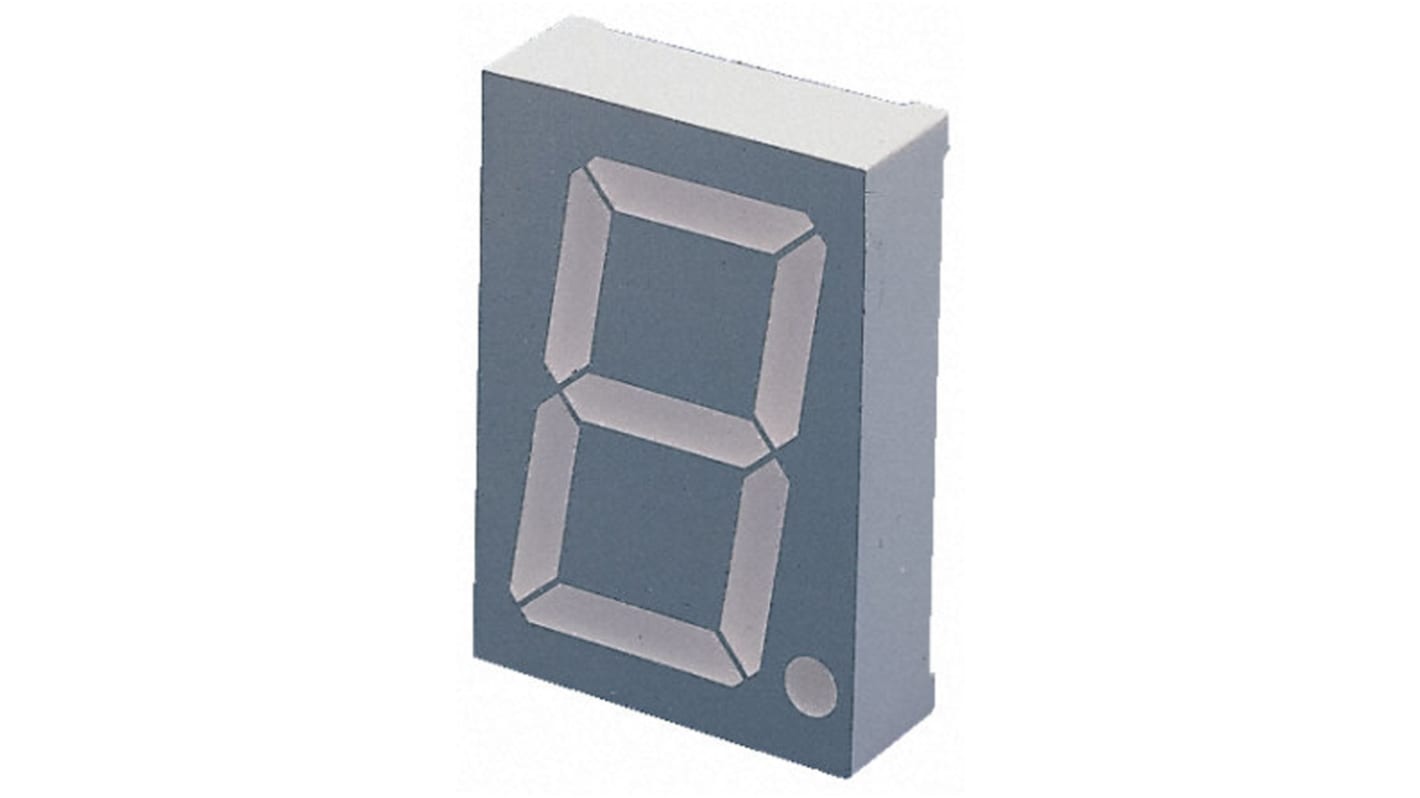

SBA23-11SURKCGKWA Kingbright 7-Segment LED Display, CA Green, Red 200000 μcd, 440000 μcd RH DP 57mm
- RS Stock No.:
- 871-7371
- Mfr. Part No.:
- SBA23-11SURKCGKWA
- Brand:
- Kingbright
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 871-7371
- Mfr. Part No.:
- SBA23-11SURKCGKWA
- Brand:
- Kingbright
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Kingbright | |
| Display Type | 7-Segment | |
| Number of Characters | 1 | |
| LED Colours | Green, Red | |
| Number of Segments | 7 | |
| Dominant Wavelength | 570 / 630 nm | |
| Character Width | 32.2mm | |
| Character Height | 57mm | |
| Common Connection | Anode | |
| Mounting Type | Through Hole | |
| External Height | 12mm | |
| External Dimensions | 48 x 70 x 12mm | |
| External Depth | 70mm | |
| External Width | 48mm | |
| Luminous Intensity | 200000 μcd, 440000 μcd | |
| Colour of Face | Grey | |
| Power Dissipation | 150 mW, 300 mW | |
| Forward Voltage | 7.8 V, 8.4 V | |
| Series | SBA23 | |
| Maximum Operating Temperature | +85°C | |
| Operating Temperature Range | -40 → +85°C | |
| Decimal Orientation | Right Side | |
| Forward Current | 30mA | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand Kingbright | ||
Display Type 7-Segment | ||
Number of Characters 1 | ||
LED Colours Green, Red | ||
Number of Segments 7 | ||
Dominant Wavelength 570 / 630 nm | ||
Character Width 32.2mm | ||
Character Height 57mm | ||
Common Connection Anode | ||
Mounting Type Through Hole | ||
External Height 12mm | ||
External Dimensions 48 x 70 x 12mm | ||
External Depth 70mm | ||
External Width 48mm | ||
Luminous Intensity 200000 μcd, 440000 μcd | ||
Colour of Face Grey | ||
Power Dissipation 150 mW, 300 mW | ||
Forward Voltage 7.8 V, 8.4 V | ||
Series SBA23 | ||
Maximum Operating Temperature +85°C | ||
Operating Temperature Range -40 → +85°C | ||
Decimal Orientation Right Side | ||
Forward Current 30mA | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- CN
Kingbright Single Digit, 38 to 57mm
A range of single-digit 7-segment LED displays from Kingbright. The displays exhibit excellent visibility with high on/off contrast, and are available in a range of colours.
Low current operation
Excellent character appearance
Grey face with white segments
Easy mounting on P.C. boards or sockets
Categorized for luminous intensity
Mechanically rugged
RoHS compliant
Excellent character appearance
Grey face with white segments
Easy mounting on P.C. boards or sockets
Categorized for luminous intensity
Mechanically rugged
RoHS compliant
7-Segment LED Displays
