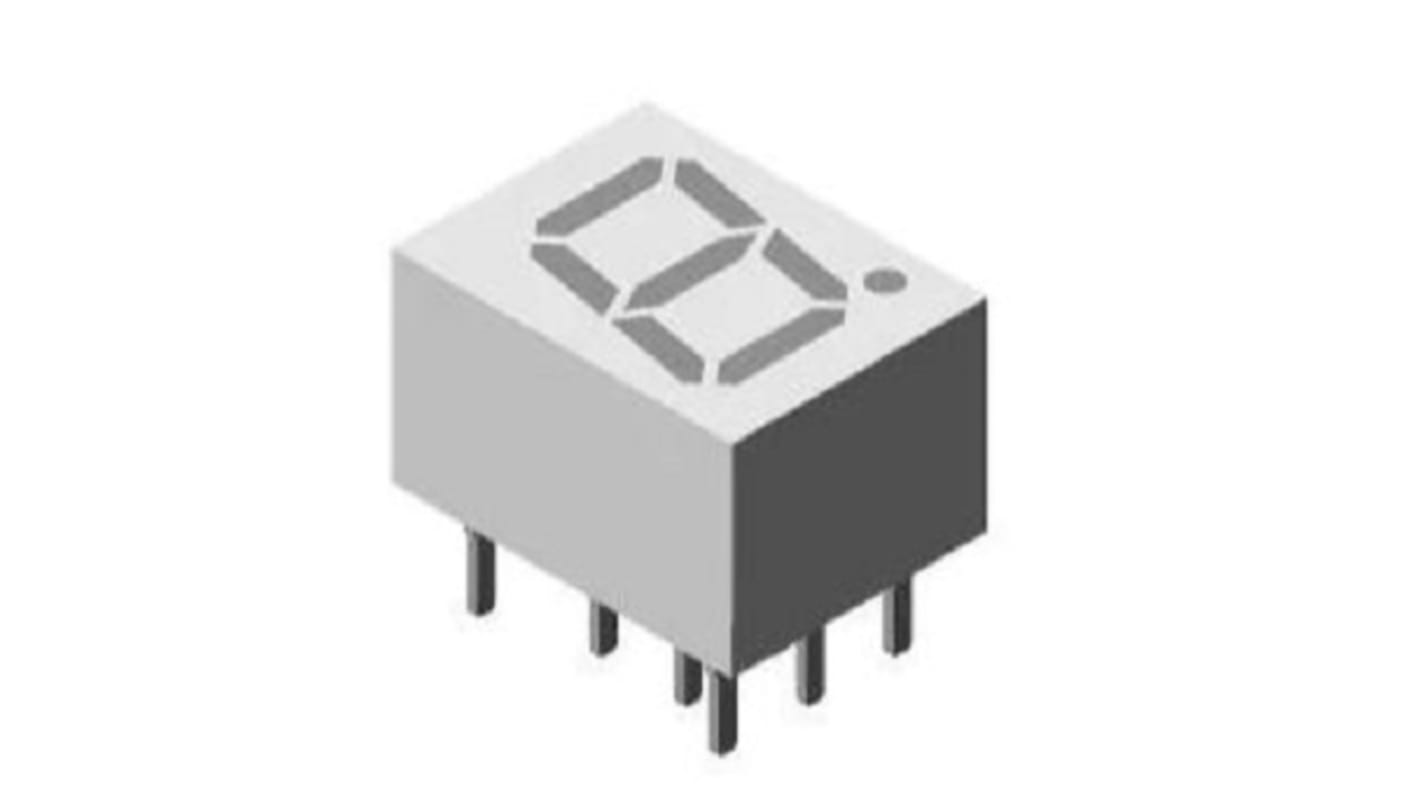

Vishay 1 7 Segment LED Display Cathode Orange, Red
- RS Stock No.:
- 244-4758
- Mfr. Part No.:
- TDSO5150-LM
- Brand:
- Vishay
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 244-4758
- Mfr. Part No.:
- TDSO5150-LM
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | LED Display | |
| Display Type | 7 Segment | |
| Number of Characters | 1 | |
| LED Colour | Orange, Red | |
| Number of Segments | 7 | |
| Dominant Wavelength | 612 to 625 nm | |
| Common Connection | Cathode | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Series | TDS.31 | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type LED Display | ||
Display Type 7 Segment | ||
Number of Characters 1 | ||
LED Colour Orange, Red | ||
Number of Segments 7 | ||
Dominant Wavelength 612 to 625 nm | ||
Common Connection Cathode | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Series TDS.31 | ||
The Vishay seven segment LED displays in a very compact package. The displays are designed for a viewing distance up to 7 m and available in four bright colours. The grey package surface and the evenly lighted untinted segments provide an optimum on-off contrast. All displays are categorized in luminous intensity groups. That allows users to assemble displays with uniform appearance. Typical applications include instruments, panel meters, point-of-sale terminals and household equipment.
Yellow and green categorized for color
Wide viewing angle
Suitable for DC and high peak current
