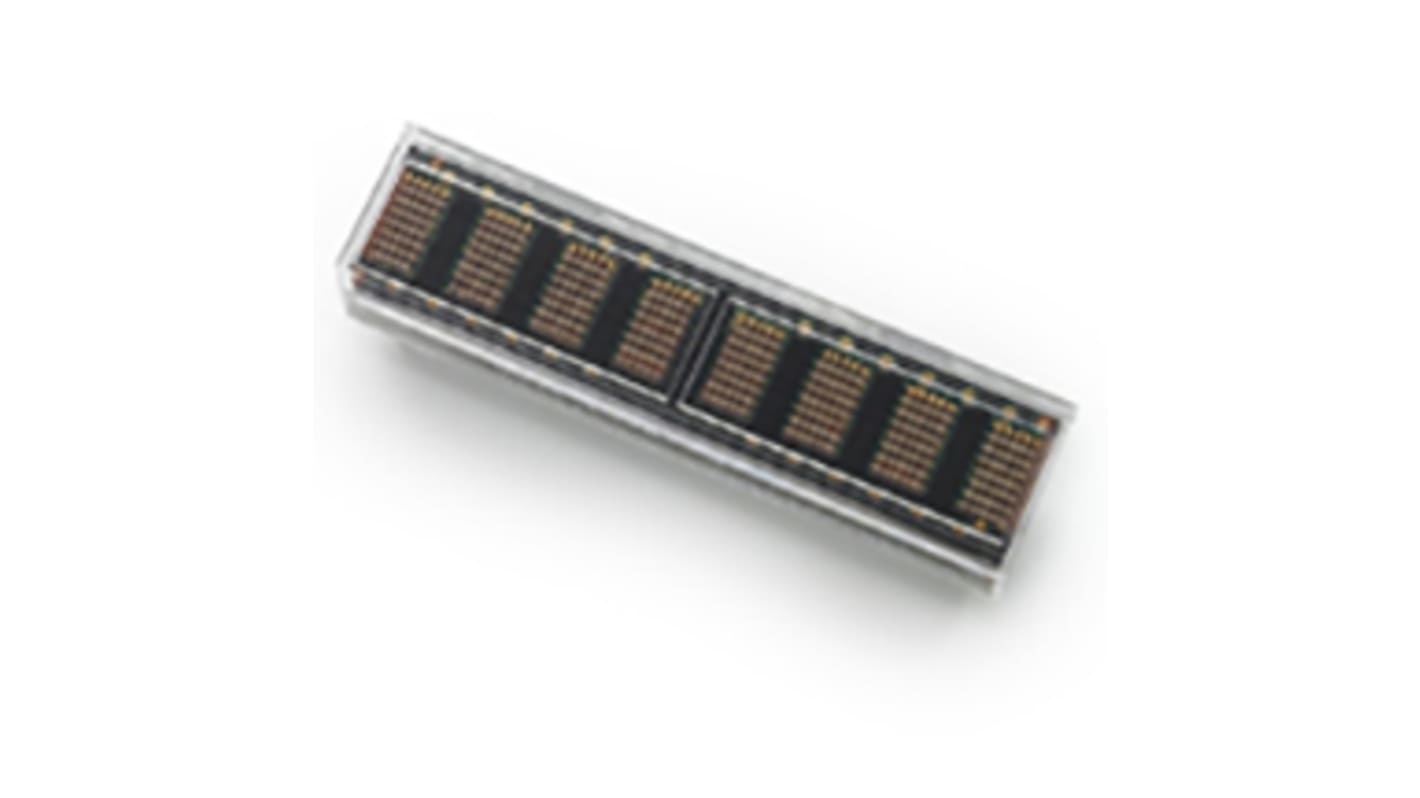

HDSP-2532 Broadcom 8 Digit Dot Matrix LED Display, 5 x 7 Dot Matrix Red 7.5 (Typ.) mcd 4.6mm
- RS Stock No.:
- 189-4797
- Mfr. Part No.:
- HDSP-2532
- Brand:
- Broadcom
Available to back order for despatch 15/05/2024
Added
Price Each (In a Tube of 10)
£37.31
(exc. VAT)
£44.77
(inc. VAT)
| Units | Per unit | Per Tube* |
| 10 - 10 | £37.31 | £373.10 |
| 20 - 40 | £36.302 | £363.02 |
| 50 - 90 | £35.334 | £353.34 |
| 100 - 190 | £34.437 | £344.37 |
| 200 + | £33.579 | £335.79 |
| *price indicative | ||
- RS Stock No.:
- 189-4797
- Mfr. Part No.:
- HDSP-2532
- Brand:
- Broadcom
Technical Reference
Legislation and Compliance
Product Details
8 Digit Alphanumeric Display, Avago HDSP-253x Series
8-digit, 5x7 dot matrix, alphanumeric, programmable 5mm high LED displays.
X-Y stackable
128 ASCII character set
16 user-definable characters
Programmable functions
Multi-level dimming and blanking
Microprocessor bus interface
128 ASCII character set
16 user-definable characters
Programmable functions
Multi-level dimming and blanking
Microprocessor bus interface
Applications include: computer peripherals, industrial instrumentation, portable data entry devices, telecommunications, test equipment.
Alphanumeric LED Displays
Specifications
Attribute | Value |
|---|---|
| Display Type | Dot Matrix |
| Number of Characters | 8 |
| LED Colours | Red |
| Dominant Wavelength | 626 (Typ.) nm |
| Character Width | 2.5mm |
| Character Height | 4.6mm |
| Mounting Type | Through Hole |
| External Width | 42.9mm |
| External Dimensions | 42.93 x 11.43 x 5.31mm |
| External Depth | 11.4mm |
| External Height | 5.3mm |
| Decoder Included | Yes |
| Luminous Intensity | 7.5 (Typ.) mcd |
| Colour of Face | Red |
| Forward Voltage | 4.5 → 5.5 V |
| Dot Matrix Format | 5 x 7 |
| Forward Current | 300mA |
| Operating Temperature Range | -40 → +85°C |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Dots Wide | 5 |
| Dot Matrix Dimensions | 5 x 7 |
| Dots High | 7 |
