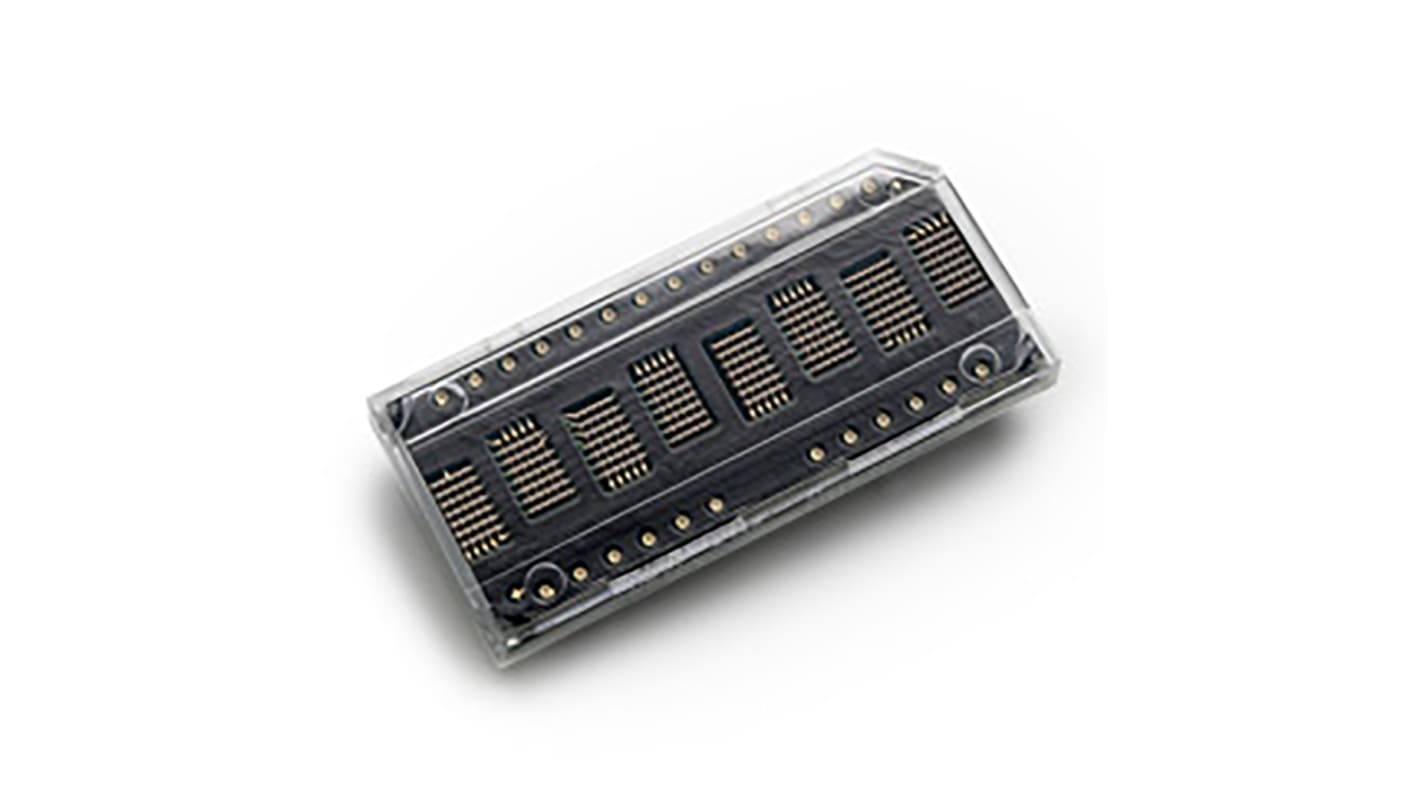

HDSP-2111 Broadcom 8 Digit Dot Matrix LED Display, 5 x 7 Dot Matrix Yellow 7.5 (Typ.) mcd 4.8mm
- RS Stock No.:
- 189-4794
- Mfr. Part No.:
- HDSP-2111
- Brand:
- Broadcom
Stock information currently inaccessible
- RS Stock No.:
- 189-4794
- Mfr. Part No.:
- HDSP-2111
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| Display Type | Dot Matrix | |
| Number of Characters | 8 | |
| LED Colours | Yellow | |
| Dominant Wavelength | 585 (Typ.) nm | |
| Character Width | 2.7mm | |
| Character Height | 4.8mm | |
| Mounting Type | Through Hole | |
| External Depth | 19.6mm | |
| External Dimensions | 42.59 x 19.58 x 5.31mm | |
| External Height | 5.3mm | |
| External Width | 42.6mm | |
| Decoder Included | Yes | |
| Luminous Intensity | 7.5 (Typ.) mcd | |
| Colour of Face | Yellow | |
| Forward Voltage | 4.5 → 5.5 V | |
| Dots Wide | 5 | |
| Dot Matrix Format | 5 x 7 | |
| Dots High | 7 | |
| Minimum Operating Temperature | -45°C | |
| Maximum Operating Temperature | +85°C | |
| Dot Matrix Dimensions | 5 x 7 | |
| Operating Temperature Range | -45 → +85°C | |
| Forward Current | 300mA | |
| Select all | ||
|---|---|---|
Brand Broadcom | ||
Display Type Dot Matrix | ||
Number of Characters 8 | ||
LED Colours Yellow | ||
Dominant Wavelength 585 (Typ.) nm | ||
Character Width 2.7mm | ||
Character Height 4.8mm | ||
Mounting Type Through Hole | ||
External Depth 19.6mm | ||
External Dimensions 42.59 x 19.58 x 5.31mm | ||
External Height 5.3mm | ||
External Width 42.6mm | ||
Decoder Included Yes | ||
Luminous Intensity 7.5 (Typ.) mcd | ||
Colour of Face Yellow | ||
Forward Voltage 4.5 → 5.5 V | ||
Dots Wide 5 | ||
Dot Matrix Format 5 x 7 | ||
Dots High 7 | ||
Minimum Operating Temperature -45°C | ||
Maximum Operating Temperature +85°C | ||
Dot Matrix Dimensions 5 x 7 | ||
Operating Temperature Range -45 → +85°C | ||
Forward Current 300mA | ||
