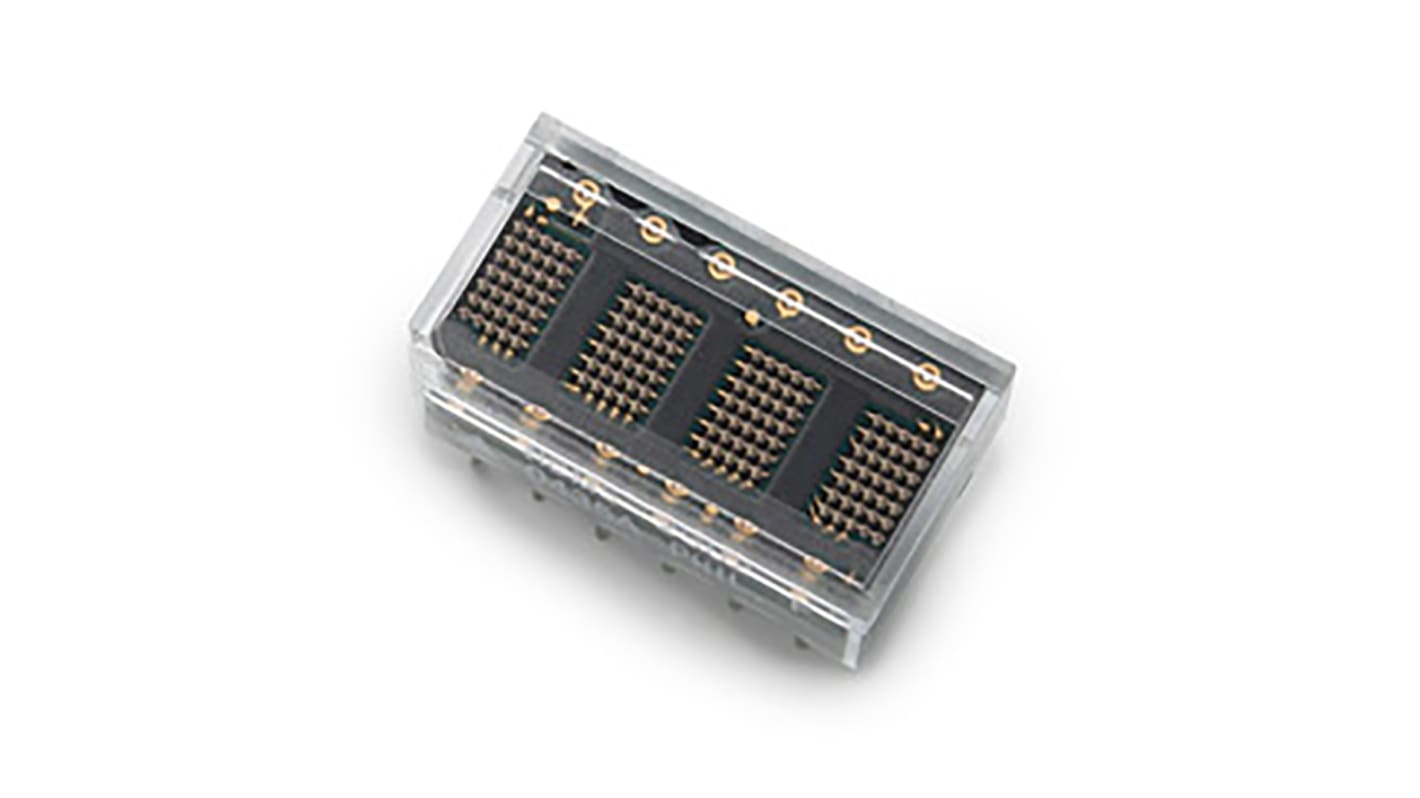

HCMS-2902 Broadcom 4 Digit Dot Matrix LED Display, 5 x 7 Dot Matrix Red 270 (Typ.) μcd 3.7mm
- RS Stock No.:
- 189-4793
- Mfr. Part No.:
- HCMS-2902
- Brand:
- Broadcom
Available to back order for despatch 24/09/2024
Added
Price Each (In a Tube of 20)
£20.86
(exc. VAT)
£25.03
(inc. VAT)
| Units | Per unit | Per Tube* |
| 20 + | £20.86 | £417.20 |
| *price indicative | ||
- RS Stock No.:
- 189-4793
- Mfr. Part No.:
- HCMS-2902
- Brand:
- Broadcom
Technical Reference
Legislation and Compliance
Product Details
4 and 8 Digit Alphanumeric LED Display, Avago HCMS-29xx Series
A range of 5x7 dot-matrix displays available in 4- and 8-digit packages.
X-Y stackable
Serial bus interface
+5.0V supply voltage
Serial bus interface
+5.0V supply voltage
Alphanumeric LED Displays
Specifications
Attribute | Value |
|---|---|
| Display Type | Dot Matrix |
| Number of Characters | 4 |
| LED Colours | Red |
| Dominant Wavelength | 626 (Typ.) nm |
| Character Width | 2.1mm |
| Character Height | 3.7mm |
| Mounting Type | Through Hole |
| External Dimensions | 17.78 x 10.16 x 5.08mm |
| External Depth | 10.2mm |
| External Width | 17.8mm |
| External Height | 5.1mm |
| Decoder Included | Yes |
| Luminous Intensity | 270 (Typ.) μcd |
| Colour of Face | Red |
| Power Dissipation | 1.2W |
| Forward Voltage | 3 → 5.5 V |
| Operating Temperature Range | -40 → +85°C |
| Dot Matrix Dimensions | 5 x 7 |
| Forward Current | 132mA |
| Maximum Operating Temperature | +85°C |
| Dots Wide | 5 |
| Dot Matrix Format | 5 x 7 |
| Dots High | 7 |
| Minimum Operating Temperature | -40°C |
