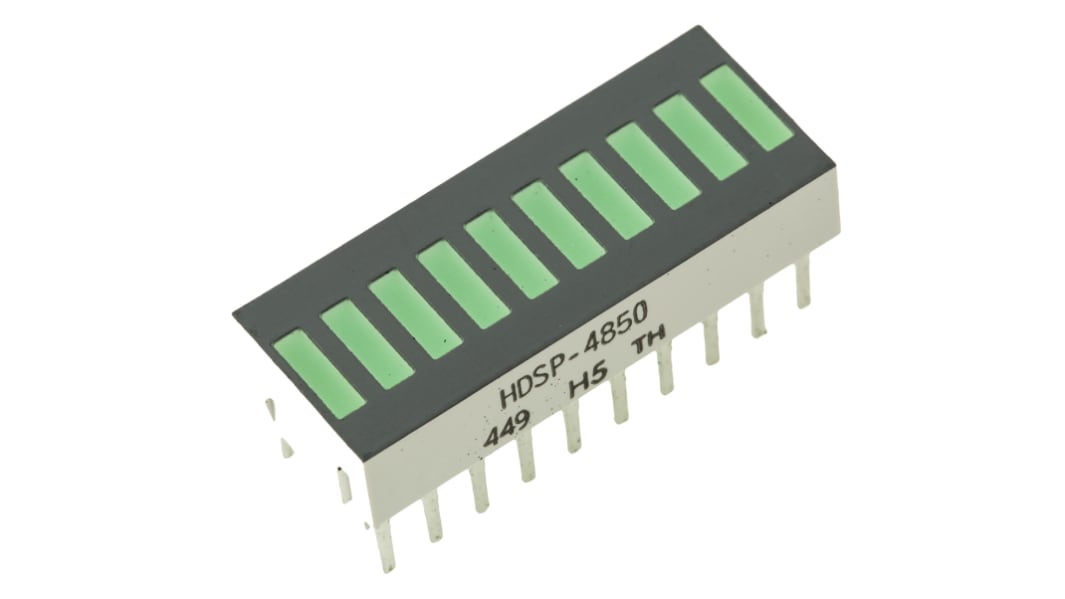

HDSP-4850 Broadcom Light Bar LED Display, Green 1.9 mcd
- RS Stock No.:
- 178-2961
- Mfr. Part No.:
- HDSP-4850
- Brand:
- Broadcom
Subtotal (1 tube of 120 units)*
£277.20
(exc. VAT)
£332.40
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 120 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
---|---|---|
120 + | £2.31 | £277.20 |
*price indicative
- RS Stock No.:
- 178-2961
- Mfr. Part No.:
- HDSP-4850
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Broadcom | |
Display Type | Light Bar | |
LED Colours | Green | |
Number of Segments | 10 | |
Dominant Wavelength | 571 nm | |
Mounting Type | Through Hole | |
External Depth | 6.1mm | |
External Height | 10.2mm | |
External Width | 25.4mm | |
External Dimensions | 10.2 x 25.4 x 6.1mm | |
Luminous Intensity | 1.9 mcd | |
Colour of Face | Grey | |
Forward Voltage | 2.1 V | |
Power Dissipation | 105mW | |
Maximum Operating Temperature | +85°C | |
Minimum Operating Temperature | -20°C | |
Forward Current | 90mA | |
Operating Temperature Range | -20 → +85°C | |
Select all | ||
---|---|---|
Brand Broadcom | ||
Display Type Light Bar | ||
LED Colours Green | ||
Number of Segments 10 | ||
Dominant Wavelength 571 nm | ||
Mounting Type Through Hole | ||
External Depth 6.1mm | ||
External Height 10.2mm | ||
External Width 25.4mm | ||
External Dimensions 10.2 x 25.4 x 6.1mm | ||
Luminous Intensity 1.9 mcd | ||
Colour of Face Grey | ||
Forward Voltage 2.1 V | ||
Power Dissipation 105mW | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -20°C | ||
Forward Current 90mA | ||
Operating Temperature Range -20 → +85°C | ||
Broadcom HLCP-X100 and HLMP-2XXX Light Bar Arrays
The HLCP-X100 and HLMP-2XXX range of LED light bars are available in a range of sizes and colours. These LED light bars are ideal for applications which require a bright and uniform light.
HLCP-X100 and HLMP-2XXX light bars have either single or segmented light emitting areas which offer a good on-off contrast. Suitable applications for the HLCP-X100 and HLMP-2XXX light bars include; telecommunications indicators, front panel status indicators and bar graphs.
HLCP-X100 and HLMP-2XXX light bars have either single or segmented light emitting areas which offer a good on-off contrast. Suitable applications for the HLCP-X100 and HLMP-2XXX light bars include; telecommunications indicators, front panel status indicators and bar graphs.
Features of the HLCP-X100 and HLMP-2XXX LED light bars:
Rectangular LES (single or segment)
Uniform light emitting area
X-Y stackable
Flush mountable
Rectangular LES (single or segment)
Uniform light emitting area
X-Y stackable
Flush mountable
Caution
Observe Anti-static precautions when handling devices.
Broadcom Light Bar Arrays
