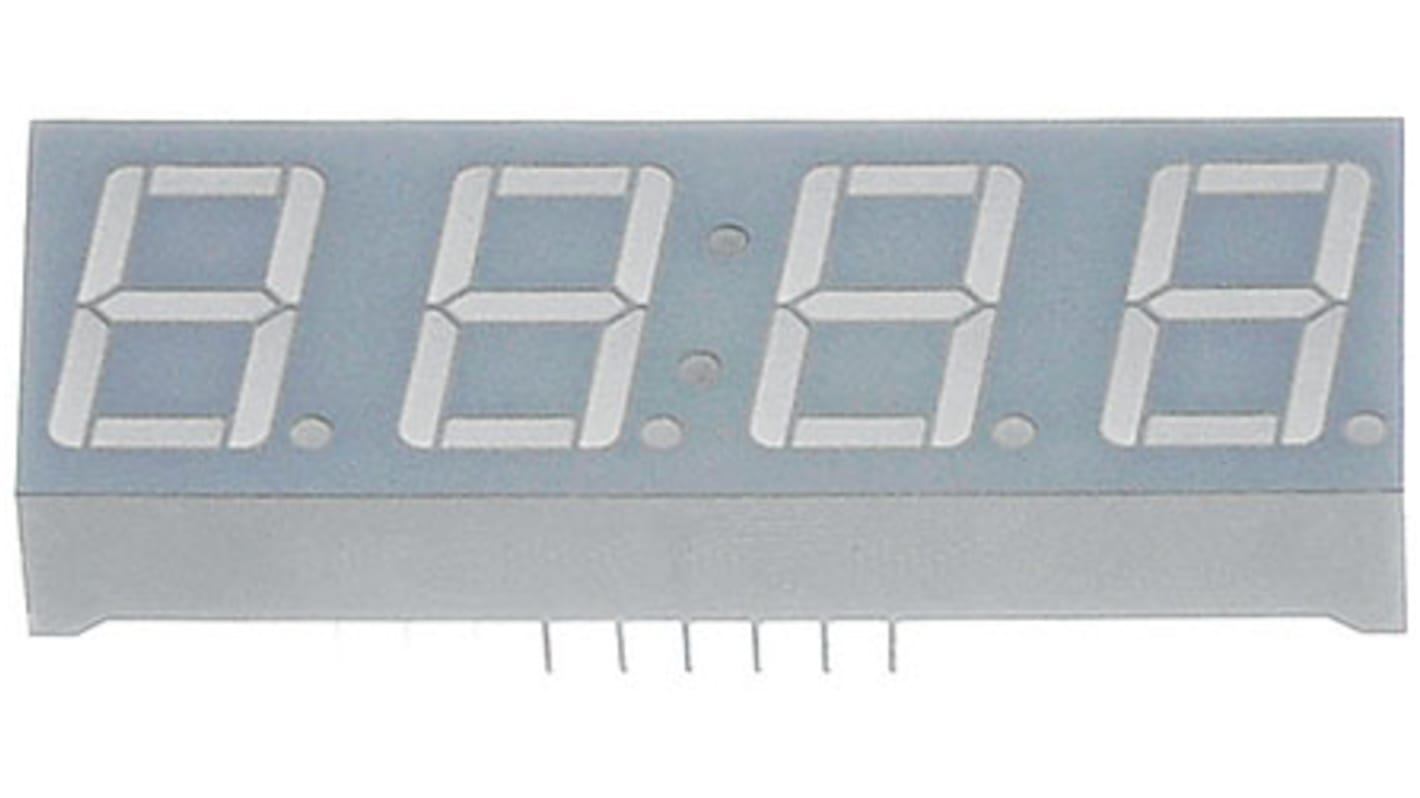

CC56-11SURKWA Kingbright 4 Digit 7-Segment LED Display, CC Red 72 mcd RH DP 14.2mm
- RS Stock No.:
- 145-1502
- Mfr. Part No.:
- CC56-11SURKWA
- Brand:
- Kingbright
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 145-1502
- Mfr. Part No.:
- CC56-11SURKWA
- Brand:
- Kingbright
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Kingbright | |
| Display Type | 7-Segment | |
| Number of Characters | 4 | |
| LED Colours | Red | |
| Number of Segments | 7 | |
| Character Width | 8mm | |
| Character Height | 14.2mm | |
| Common Connection | Cathode | |
| Mounting Type | Through Hole | |
| External Height | 8.1mm | |
| External Dimensions | 50.3 x 19 x 8.1mm | |
| External Depth | 19mm | |
| External Width | 50.3mm | |
| Luminous Intensity | 72 mcd | |
| Colour of Face | Grey | |
| Forward Voltage | 2.5 V | |
| Power Dissipation | 75mW | |
| Forward Current | 30mA | |
| Series | CC56 | |
| Decimal Orientation | Right Side | |
| Operating Temperature Range | -40 → +85°C | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -40°C | |
