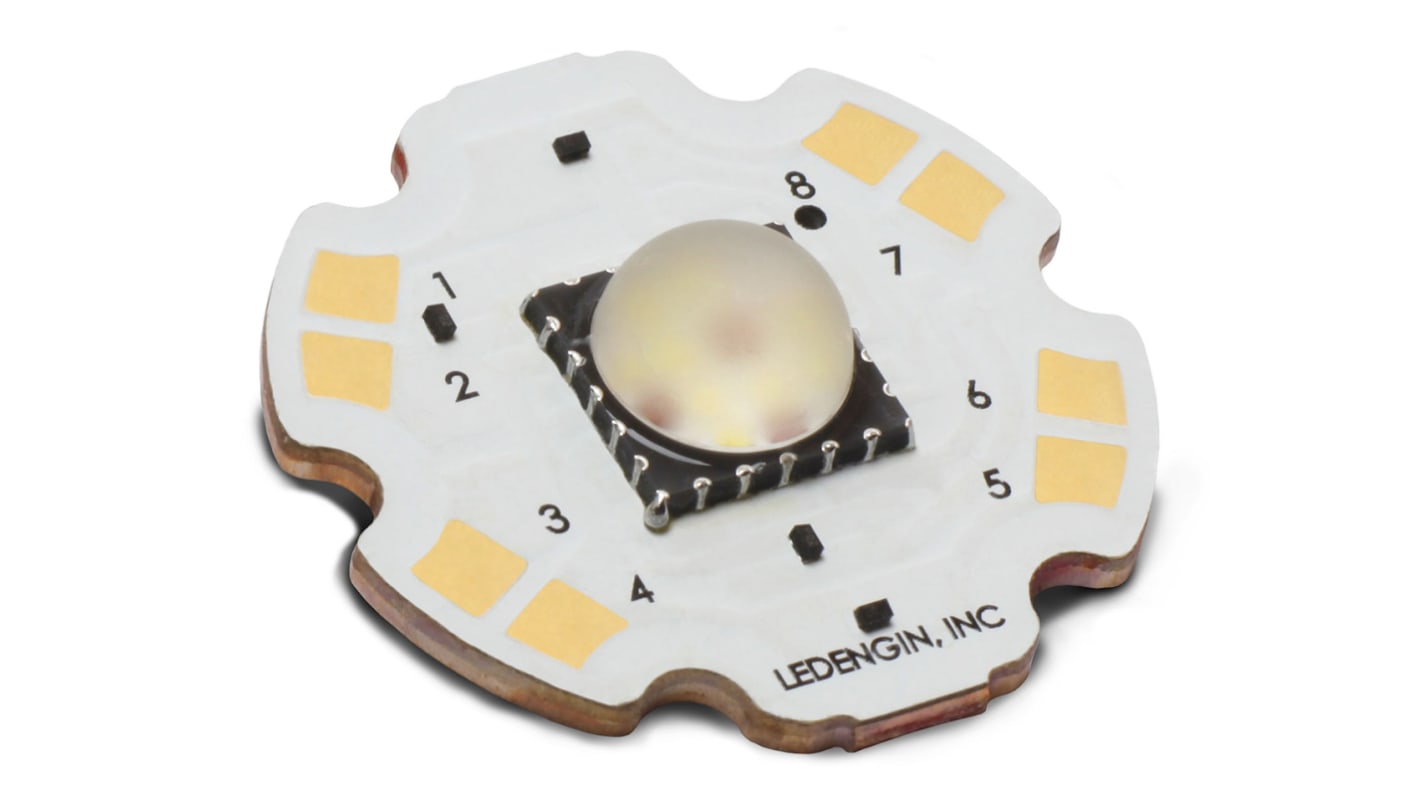

LedEngin Inc LZC-B3MA07-0000, LZ Circular LED Array, 12 Amber, Blue, Green, Red LED
- RS Stock No.:
- 905-3952
- Mfr. Part No.:
- LZC-B3MA07-0000
- Brand:
- LedEngin Inc
Discontinued
- RS Stock No.:
- 905-3952
- Mfr. Part No.:
- LZC-B3MA07-0000
- Brand:
- LedEngin Inc
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | LedEngin Inc | |
| Number of LEDs | 12 | |
| LED Colours | Amber, Blue, Green, Red | |
| Typical Luminous Flux | 305 (Amber) lm @ 1000 mA, 100 lm, 270 lm, 440 lm | |
| Outer Diameter | 28.3mm | |
| Base Material | Ceramic | |
| Constant Voltage or Constant Current | Constant Current | |
| Current Rating | 1A | |
| Voltage Rating | 7.6 V, 10.9 V, 7.6 V @ 1000 mA | |
| Connection Types | Solder | |
| Power Dissipation | 40W | |
| Secondary Optics Included | Lens | |
| Series | LZ | |
| Select all | ||
|---|---|---|
Brand LedEngin Inc | ||
Number of LEDs 12 | ||
LED Colours Amber, Blue, Green, Red | ||
Typical Luminous Flux 305 (Amber) lm @ 1000 mA, 100 lm, 270 lm, 440 lm | ||
Outer Diameter 28.3mm | ||
Base Material Ceramic | ||
Constant Voltage or Constant Current Constant Current | ||
Current Rating 1A | ||
Voltage Rating 7.6 V, 10.9 V, 7.6 V @ 1000 mA | ||
Connection Types Solder | ||
Power Dissipation 40W | ||
Secondary Optics Included Lens | ||
Series LZ | ||
LZ4 Series 10W LED Modules
The LZ4 Series LED modules feature a 10W LED emitter mounted on a star MCPCB. The MCPCB can be attached to a heat sink with M3 screws and provides "+" (Anode) and "-" (Cathode) solder pads for electrical connection to each individual LED die, as well as Zener diode ESD protection.
High Efficacy 10W LED emitter on MCPCB
4 Individually addressable LED dies
Very high flux density
Very low thermal resistance
4 Individually addressable LED dies
Very high flux density
Very low thermal resistance
LedEngin Inc. LED Modules
The LedEngin LZ Series of LED emitter modules comprises 1, 4, 12 and 25 die LED emitter products with very high efficacies and flux densities. Every die is individually addressable providing maximum design flexibility. LedEngin's range of colour emitters includes: red, deep red, far red, green, blue, amber and white as well as ultra violet.
