Intelligent Horticultural Solutions IHS-OG06-HYRE-SD221., OSLON Square LED Array, 6

View all LED Arrays
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
194-7653
Mfr. Part No.:
IHS-OG06-HYRE-SD221.
Brand:
Intelligent Horticultural Solutions
Find similar products by selecting one or more attributes.
Select all

Brand

Intelligent Horticultural Solutions

Number of LEDs

6

Radiant Flux

2475mW

Onboard Driver

Yes

Voltage Rating

24V

Current Rating

1A

Secondary Optics Included

Lens, Reflector

Series

OSLON Square

Connection Types

Solder

Non Compliant

COO (Country of Origin):
GB
660nm Hyper Red Known applications and effects: A key wavelength for photosynthesis and widely used for that reason, 660nm can also be used to target Phytochrome Red (Pr) to delay flowering in short-day plants. When combined with 450nm Deep Blue it will accelerate anthocyanin accumulation e.g. purple lettuce colouration.

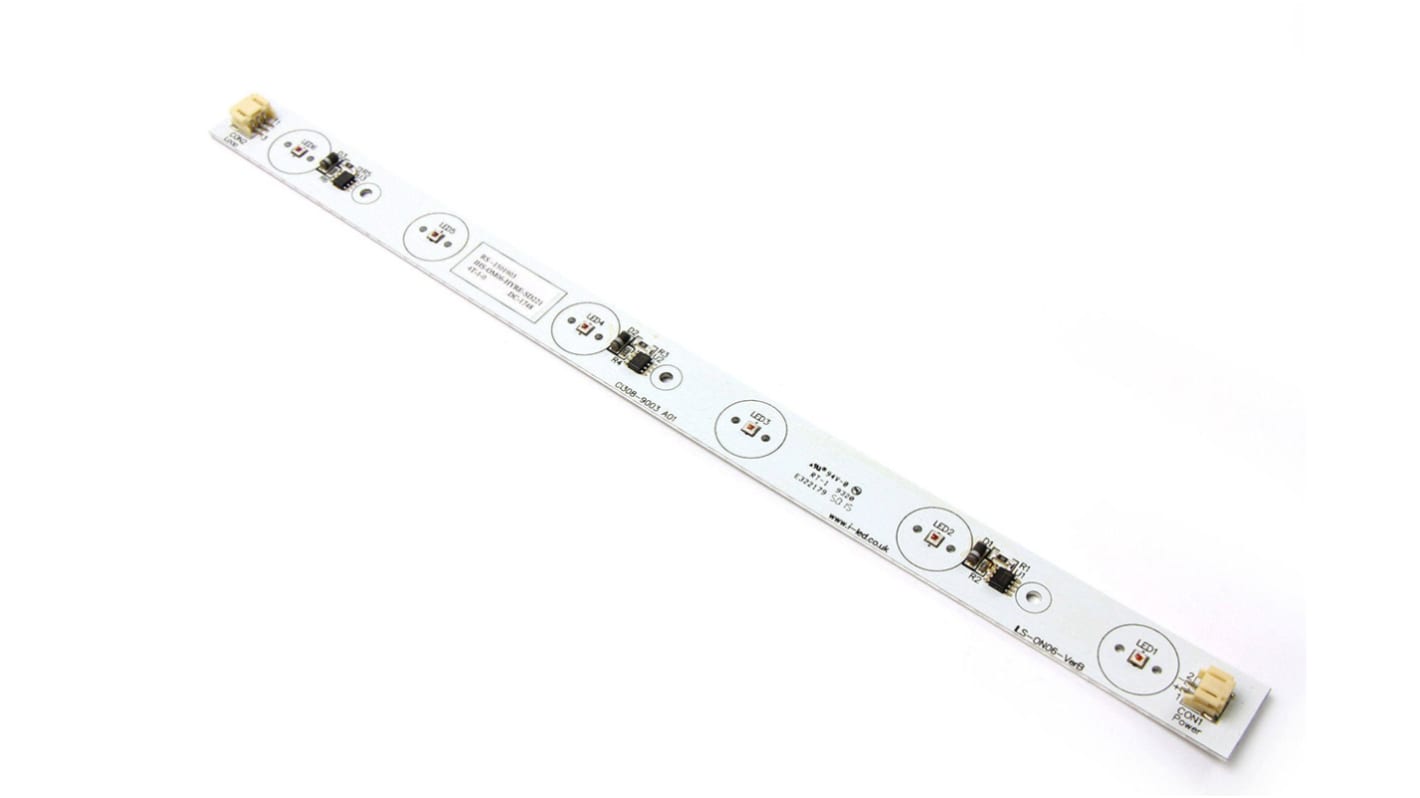

OSRAM OSLON® Square 3rd Gen 6 Strip contain OSLON® Square 3rd Gen LEDs with integral 120 degree silicone resin Lenses
Up to 100,000 Hour lifetime to 70% of original brightness
Mounting holes using M3 screws allows easy installation
Size (L x W x H): 300mm x 20mm x 7mm
Single input voltage. Each board has own regulation built-in
Operation with 24VDC Power Supply
Secondary Lenses can be fitted
Suitable Heat Sinks available
Matching Power Supply available
Strips can be linked together to produce longer chains
Current range 100 to 1000mA
