Intelligent LED Solutions Adapter Plate for ILS Cluster LED Modules 82 (Dia.) x 3mm

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

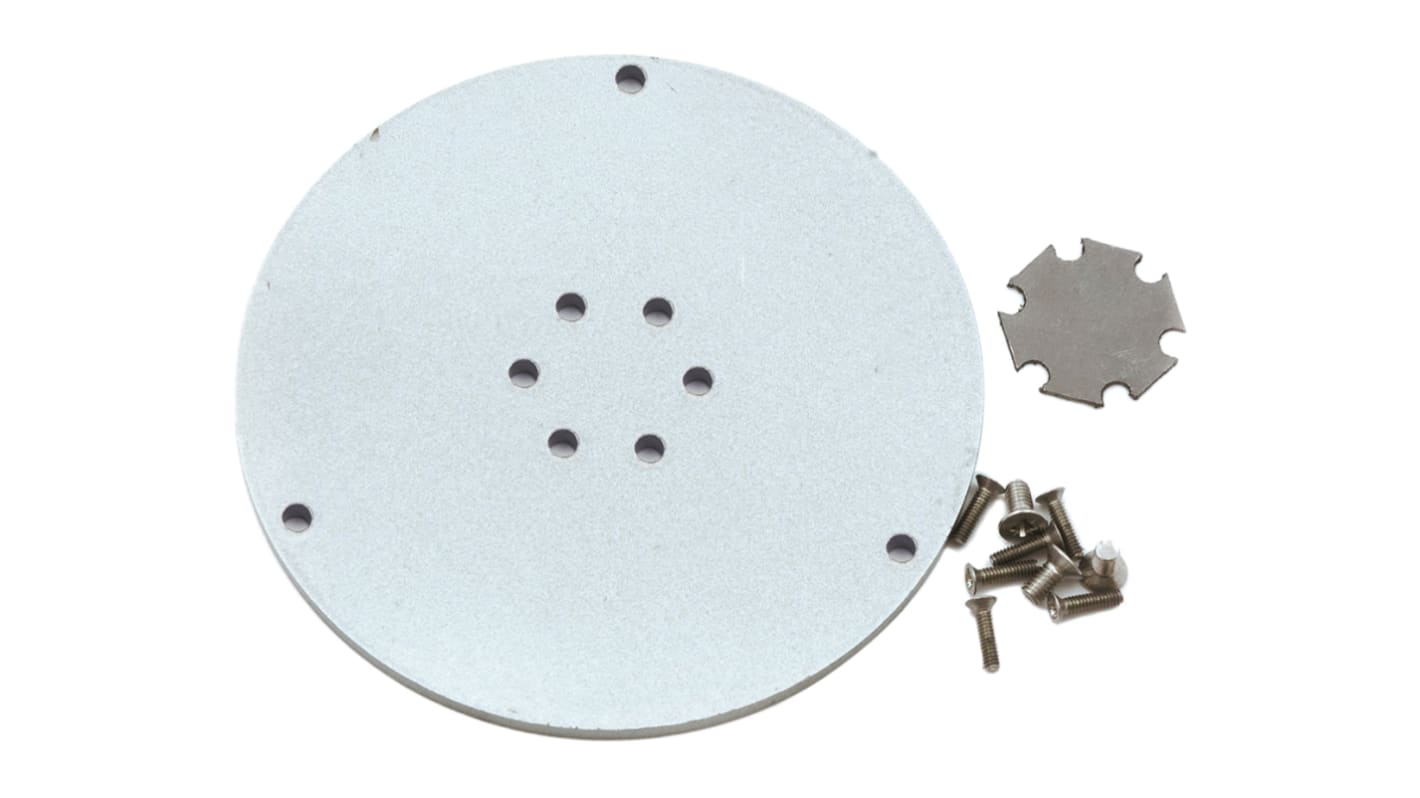

Reflector Adaptor Plate for Cluster Boards

This reflector adaptor plate is designed for use with the Cluster LED modules from ILS. It sits between the LED module and the heatsink, providing an easy mounting solution for secondary reflectors. Therefore making it easier for you to assemble your LED light design.
Adaptor plates enable you to add LED reflectors from LEDiL to cluster boards for a wide array of beam angles.
Suitable applications include; retrofit bulbs, down and spotlights, residential lighting, building exterior and car park lighting.

Intelligent LED Solutions LED Modules - Clusters

Specifications
Attribute Value
For Use With ILS Cluster LED Modules
Dimensions 82 (Dia.) x 3mm
Width 82mm
6 In stock for FREE next working day delivery
Price Each
£ 26.82
(exc. VAT)
£ 32.18
(inc. VAT)
Units
Per unit
1 - 1
£26.82
2 - 4
£26.09
5 - 9
£25.04
10 +
£24.39
