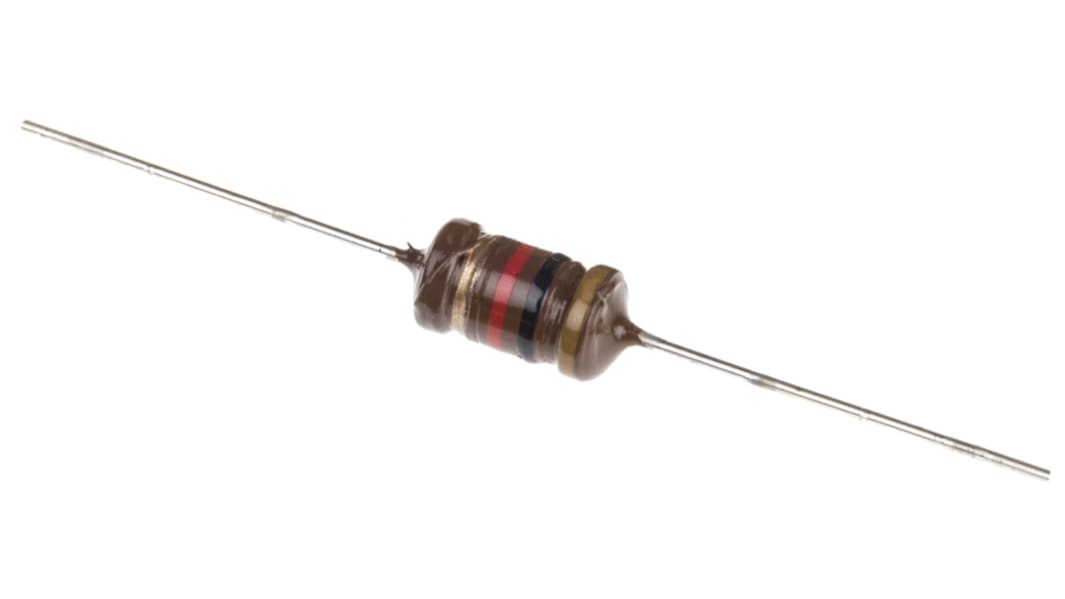

TDK 1 mH Ferrite Leaded Inductor, Max SRF:1.3 MHz, Q:60, 370 mA Idc, 3.6 Ω Rdc, HLBC
- RS Stock No.:
- 880-7256
- Mfr. Part No.:
- B82145A1105J000
- Brand:
- TDK
Bulk discount available
View bulk pricing optionsSubtotal (1 bag of 10 units)*
£3.61
(exc. VAT)
£4.33
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- 90 left, ready to ship
- Plus 200 left, ready to ship from another location
- Final 2,550 unit(s) shipping from 22 October 2026
Units | Per unit | Per Bag* |
|---|---|---|
| 10 - 90 | £0.361 | £3.61 |
| 100 - 490 | £0.22 | £2.20 |
| 500 - 990 | £0.217 | £2.17 |
| 1000 - 2490 | £0.214 | £2.14 |
| 2500 + | £0.212 | £2.12 |
*price indicative
- RS Stock No.:
- 880-7256
- Mfr. Part No.:
- B82145A1105J000
- Brand:
- TDK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK | |
| Inductance | 1mH | |
| Product Type | Leaded Inductor | |
| Maximum DC Current | 370mA | |
| Mount Type | Axial | |
| Test Frequency | 0.25MHz | |
| Maximum DC Resistance | 3.6Ω | |
| Packaging | Tape & Reel | |
| Lead Diameter | 800μm | |
| Diameter | 6.5mm | |
| Automotive Standard | No | |
| Height | 6.5mm | |
| Minimum Operating Temperature | 20°C | |
| Core Material | Ferrite | |
| Inductance Tolerance | ±5 % | |
| Maximum Self Resonant Frequency | 1.3MHz | |
| Maximum Operating Temperature | 40°C | |
| Standards/Approvals | RoHS, IEC | |
| Termination Style | Axial | |
| Length | 12mm | |
| Lead Pitch | 15mm | |
| Depth | 6.5mm | |
| Series | HLBC | |
| Minimum Quality Factor | 60 | |
| Select all | ||
|---|---|---|
Brand TDK | ||
Inductance 1mH | ||
Product Type Leaded Inductor | ||
Maximum DC Current 370mA | ||
Mount Type Axial | ||
Test Frequency 0.25MHz | ||
Maximum DC Resistance 3.6Ω | ||
Packaging Tape & Reel | ||
Lead Diameter 800μm | ||
Diameter 6.5mm | ||
Automotive Standard No | ||
Height 6.5mm | ||
Minimum Operating Temperature 20°C | ||
Core Material Ferrite | ||
Inductance Tolerance ±5 % | ||
Maximum Self Resonant Frequency 1.3MHz | ||
Maximum Operating Temperature 40°C | ||
Standards/Approvals RoHS, IEC | ||
Termination Style Axial | ||
Length 12mm | ||
Lead Pitch 15mm | ||
Depth 6.5mm | ||
Series HLBC | ||
Minimum Quality Factor 60 | ||
Epcose B82145A HLCB Series RF Chokes
Epcos B82145A HLBC series RF chokes are suitable for application in interference suppression, decuopling, energy saving lamps and entertainment electronics. These high current large bobbin core inductors consist of a large ferrite drum core with enamel copper wire winding and a flame retardant lacquer coating.
Suitable for wave soldering
High rated current at high inductance ratings
Terminals are radially bent to 5mm lead spacing
Terminals are electroplated with nickel and Pure tin
