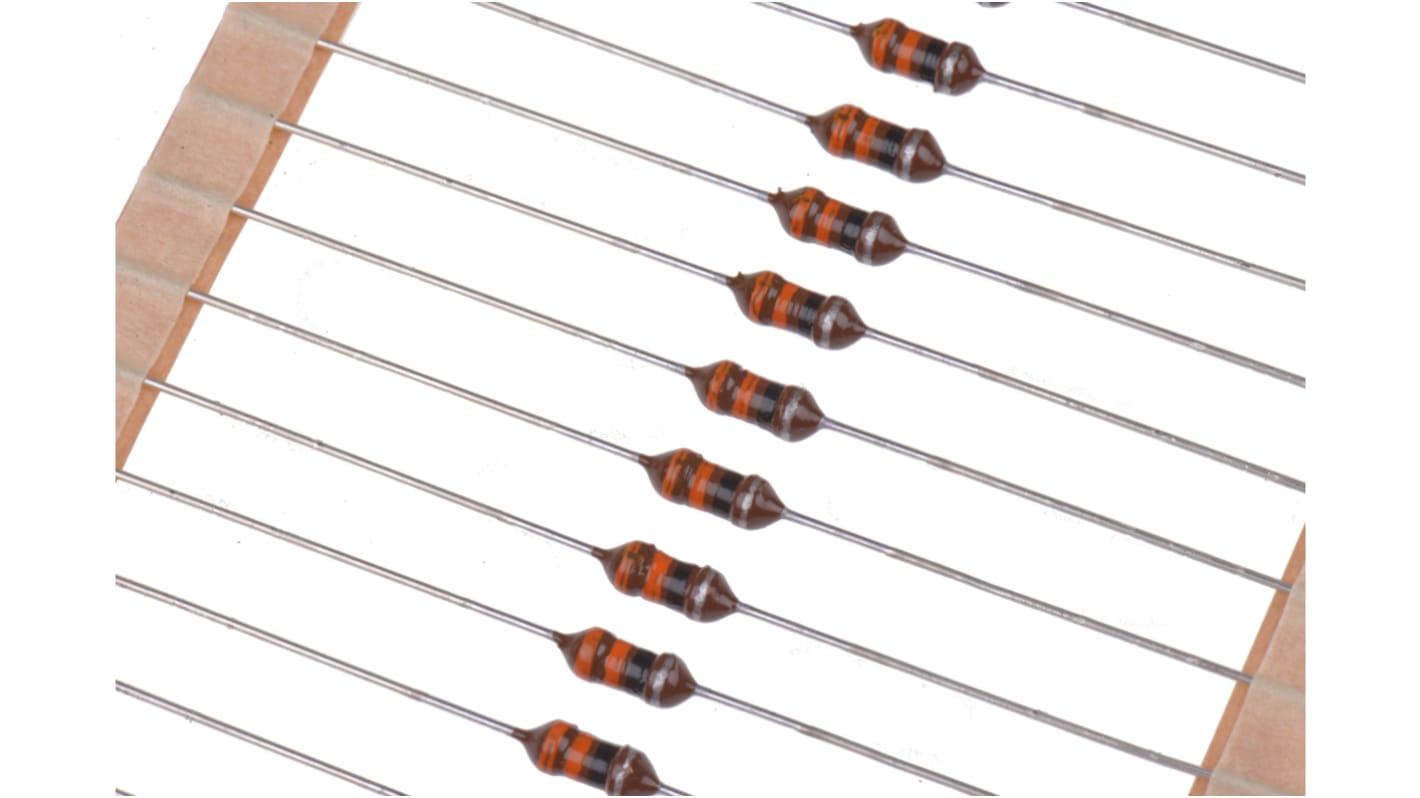

EPCOS 33 μH ±10% Ferrite Leaded Inductor, Max SRF:10MHz, Q:55, 300mA Idc, 1.12Ω Rdc, SBC
- RS Stock No.:
- 880-7193P
- Mfr. Part No.:
- B82141A1333K000
- Brand:
- EPCOS
Subtotal 10 units (supplied in a bag)*
£4.25
(exc. VAT)
£5.10
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 04 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 10 + | £0.425 |
*price indicative
- RS Stock No.:
- 880-7193P
- Mfr. Part No.:
- B82141A1333K000
- Brand:
- EPCOS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPCOS | |
| Inductance | 33 μH | |
| Maximum DC Current | 300mA | |
| Mounting Type | Axial | |
| Maximum DC Resistance | 1.12Ω | |
| Tolerance | ±10% | |
| Diameter | 3mm | |
| Length | 6.8mm | |
| Dimensions | 3 (Dia.) x 6.8mm | |
| Core Material | Ferrite | |
| Maximum Self Resonant Frequency | 10MHz | |
| Lead Pitch | 10mm | |
| Series | SBC | |
| Terminal Type | Axial Leaded | |
| Minimum Operating Temperature | +20°C | |
| Maximum Operating Temperature | +40°C | |
| Lead Diameter | 0.6mm | |
| Minimum Quality Factor | 55 | |
Select all | ||
|---|---|---|
Brand EPCOS | ||
Inductance 33 μH | ||
Maximum DC Current 300mA | ||
Mounting Type Axial | ||
Maximum DC Resistance 1.12Ω | ||
Tolerance ±10% | ||
Diameter 3mm | ||
Length 6.8mm | ||
Dimensions 3 (Dia.) x 6.8mm | ||
Core Material Ferrite | ||
Maximum Self Resonant Frequency 10MHz | ||
Lead Pitch 10mm | ||
Series SBC | ||
Terminal Type Axial Leaded | ||
Minimum Operating Temperature +20°C | ||
Maximum Operating Temperature +40°C | ||
Lead Diameter 0.6mm | ||
Minimum Quality Factor 55 | ||
Epcos B82141A Series SBC RF Chokes
Epcos SBC Series BE82141A RF inductors are ideal for use in RF blocking and filtering, electronic household appliances, automotive and entertainment electronics. They can also be used for decoupling and interference suppression. SBC choke inductors consist of a mini ferrite drum core with an enamel copper wire winding and a flame retardant lacquer coating.
Small size
Suitable for wave soldering
Relatively high rate current
Terminals have a base material of CuAg0.1 and are electroplated with nickel and pure tin
Suitable for wave soldering
Relatively high rate current
Terminals have a base material of CuAg0.1 and are electroplated with nickel and pure tin
