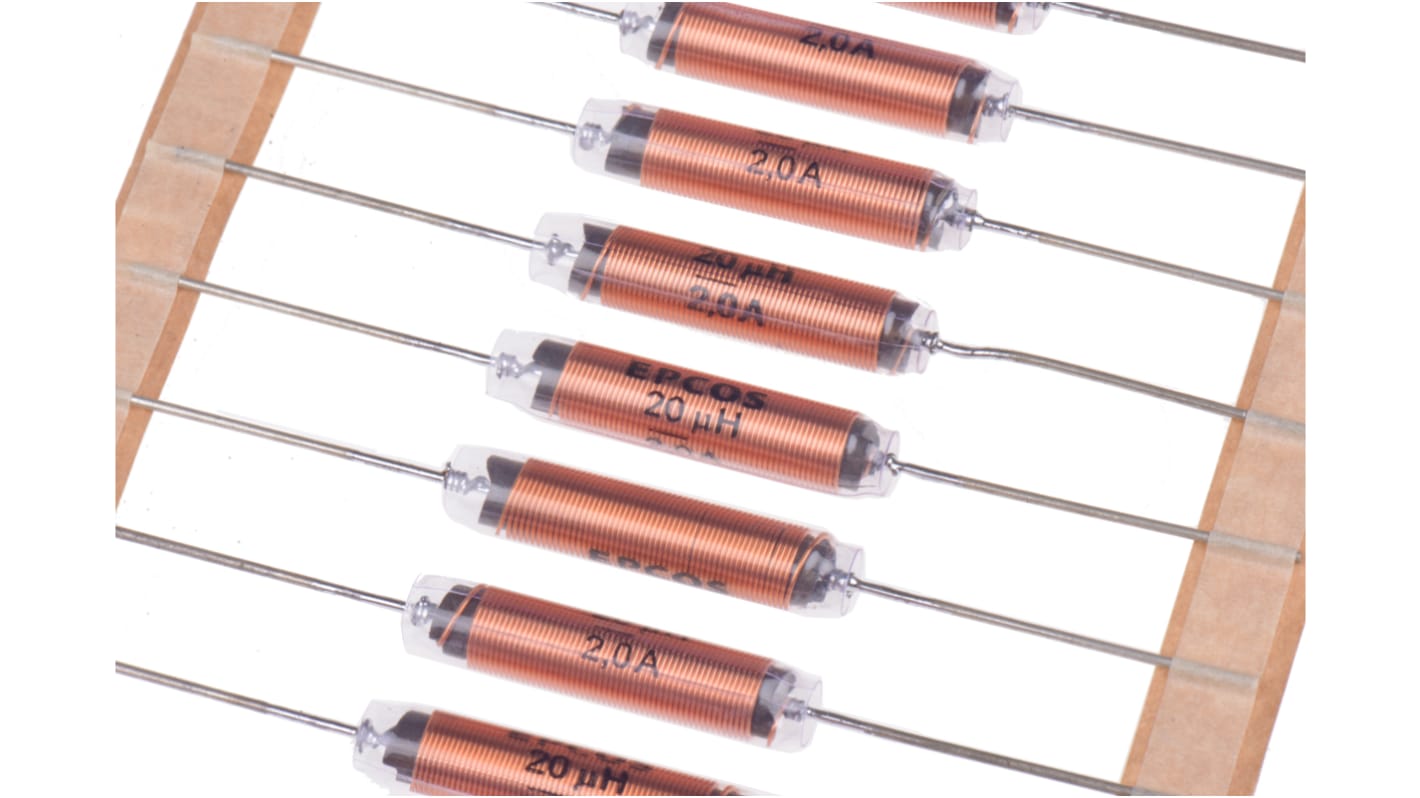

EPCOS 20 μH ±20% Carbonyl Iron Leaded Inductor, Max SRF:59MHz, 2A Idc, 150mΩ Rdc 500 V ac, VHF

View all Leaded Inductors
Unavailable
RS will no longer stock this product.
Packaging Options:
RS Stock No.:
880-7171P
Mfr. Part No.:
B82134A5202M000
Brand:
EPCOS
Find similar products by selecting one or more attributes.
Select all

Brand

EPCOS

Inductance

20 μH

Maximum DC Current

2A

Mounting Type

Axial

Maximum DC Resistance

150mΩ

Tolerance

±20%

Diameter

7.5mm

Length

30mm

Dimensions

7.5 (Dia.) x 30mm

Core Material

Carbonyl Iron

Maximum Self Resonant Frequency

59MHz

Lead Pitch

32.5mm

Series

VHF

Lead Diameter

0.8mm

Terminal Type

Axial Leaded

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

+125°C

Epcos B82131, B82132, B82133, B82134 Series VHF Chokes


Epcos VHF choke inductors have a polyester insulating sleeve and are constructed from a cylinder core of carbonyl iron. The winding consists of single-layer, enamel copper wire. Suitable applications for these inductors include interference suppression in small appliances, decoupling in telecommunications and entertainment electronics.

Suitable for wave soldering
Design complies with EN 60938
High resonant frequency
Terminal base material CU, hot-dip tinned with pure tin
